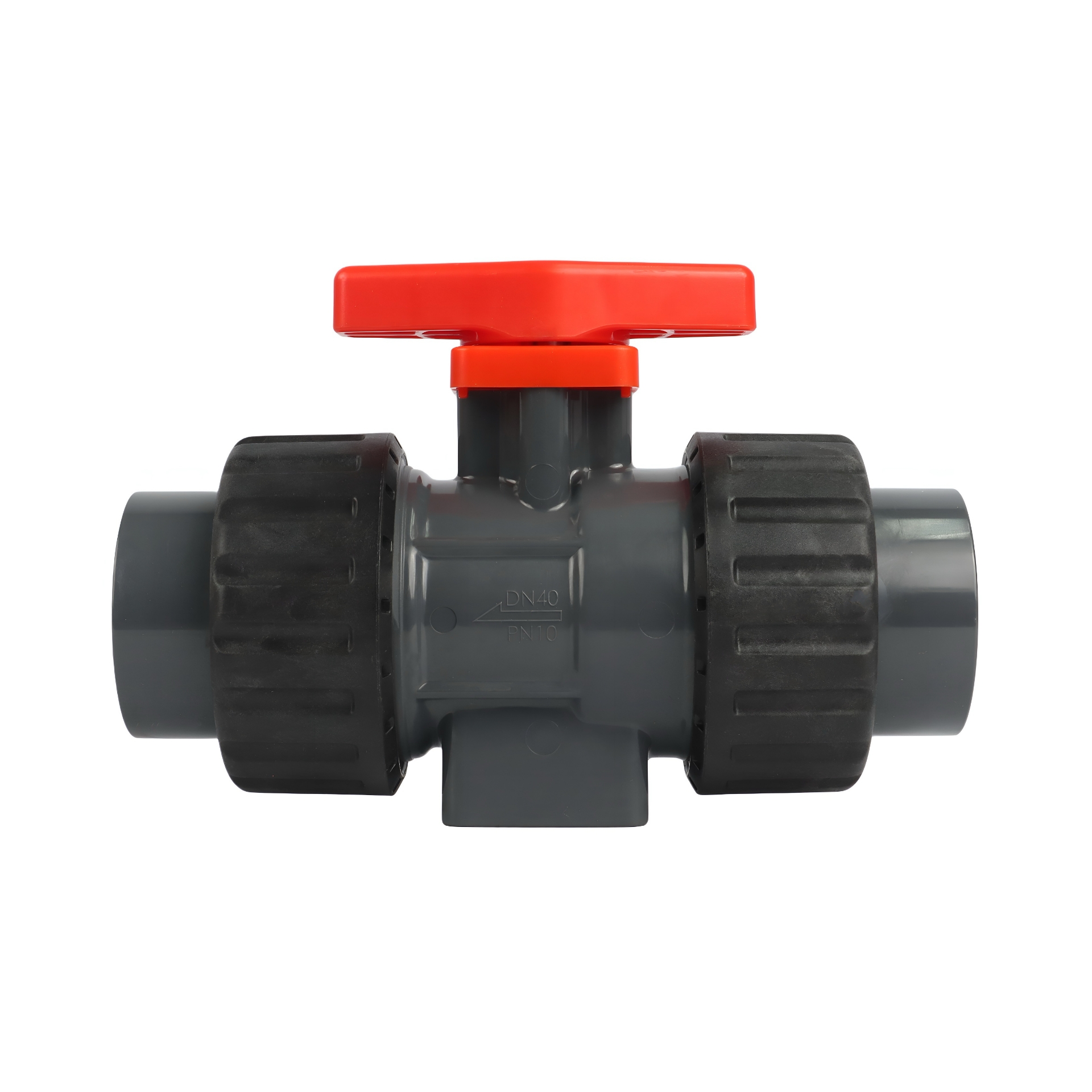

Ruxin Manual Ceramic 2 Way Ball Valves (Thread)

Ruxin Manual Ceramic 2 Way Ball Valves (Thread)

The Runxin ceramic ball valves are a range of flow control solutions known for their high corrosion and abrasion resistance, utilizing a patented design that results in very low operating torque and zero leakage. They are widely used in water treatment, chemical engineering, and other industrial applications. The 2-way Valve's other body is made of unplasticized polyvinyl chloride (uPVC).

The primary advantage of Runxin ceramic ball valves is their use of high-hardness ceramic components for the ball and seats, which provides exceptional durability compared to traditional metal-seated or rubber-sealed valves.

The Ruxin Manual Ceramic 2-Way Ball Valves are rated for a maximum of 16bar / 232psi.

Port Sizes of Ruxin Manual Ceramic 2 Way Ball Valves (Thread):

• Port Type: Female BSP Thread

• Port Sizes Available in: 1/2" (15mm), 3/4" (20mm), 1" (25mm), 1.25" (32mm), 1.5" (40mm), & 2" (50mm) Female Thread BSP Ports.

**Please keep in mind that the "Common Size name" and the actual thread size of the ports do differ; please see the table below for the actual thread sizes.

Features of Ruxin Manual Ceramic 2 Way Ball Valves (Thread):

• Durability and Resistance: The ceramic core and seats are hermetically sealed and highly resistant to corrosion, abrasion, and chemicals like acids, alkalis, and hydrocarbons, making them suitable for harsh water conditions and various industrial media.

• PN16 True Union valve body made for rigid PVC-U injection moulding, equipped with built-in bores for actuation.

• Low Torque Operation: A self-balancing, patented design significantly reduces the pressure on the ceramic components, resulting in very low operating torque, which makes the valves easier to open and close manually or with smaller actuators.

• Zero Leakage: The ceramic ball and seats are precision-ground and paired to ensure a tight, leak-proof seal, preventing water bypass during operation.

• Actuation: Features an integrated bracket for easy installation of pneumatic or electric actuators for automated systems.

• Material: uPVC (resistant to corrosion, scaling, and many chemicals), Ceramic Ball, & EDPM O-rings

• Operation Type: Manual Handle

• Maximum Pressure Rating: 16bar / 232psi.

• Maximum Operating Temp: 60°C.

 Advantages:

• Lightweight and easy to install.

• Long service life (doesn’t rust like metal).

• Smooth internal surface reduces pressure drop.

• UV-resistant (for outdoor use).

• Cost-effective compared to stainless steel or brass.
