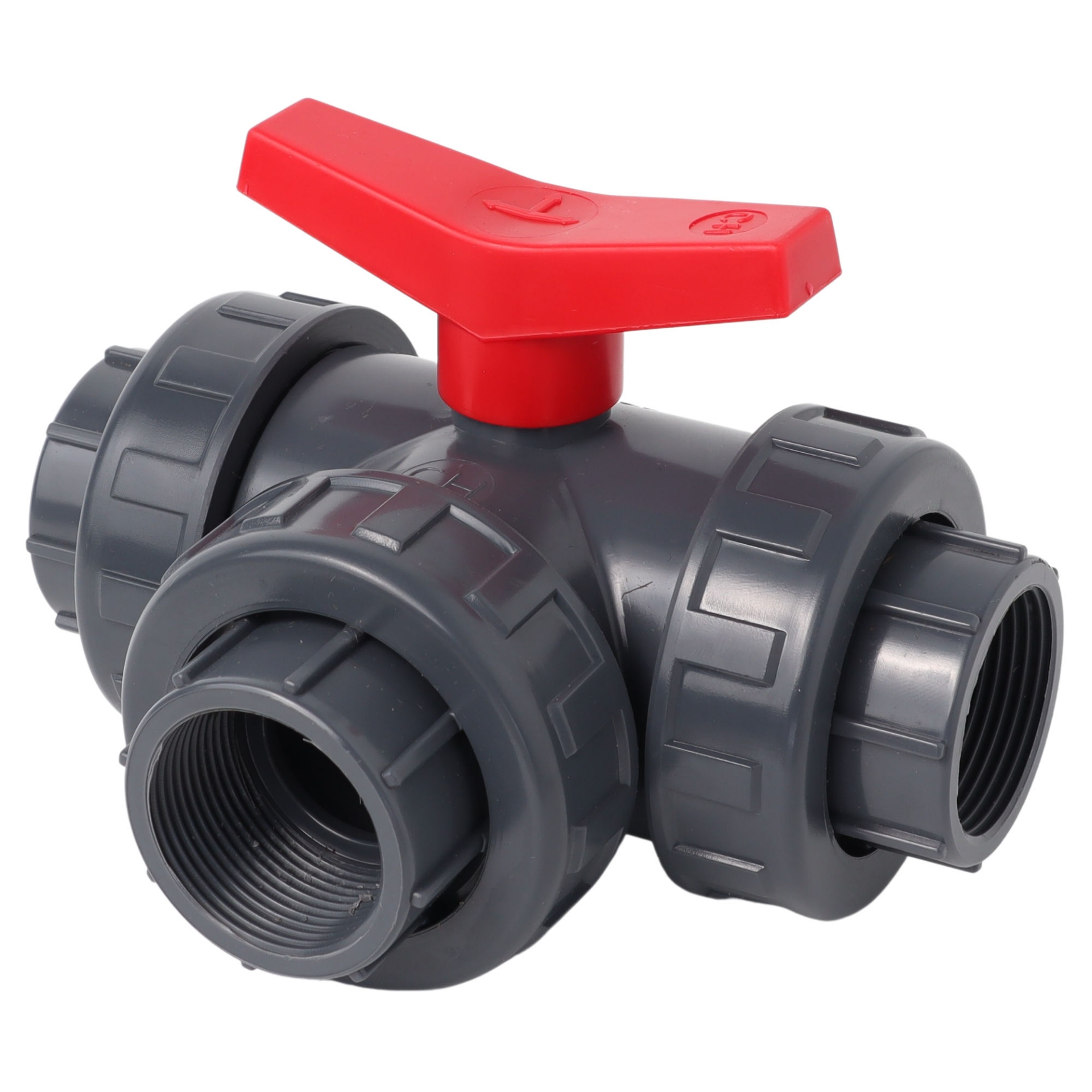

    PVC BSP Thread 3 Way L-Port Ball Valves

    Manufacturer: FIlterShop.co.za
    Port:
  • Type: Female BSP Thread Ports
  • 3-Way Valve Flow Type: L-Port
  • Port Sizes: Available in 1/2" (15mm), 3/4" (20mm), 1" (25mm), 1.25" (32mm), 1.5" (40mm), & 2" (50mm) Female BSP Thread Ports

  • Specifications:
  • Material: uPVC (resistant to corrosion, scaling, and many chemicals)
  • Operation Type: Manual Handle
  • Maximum Pressure Rating: 10bar / 145psi
  • Maximum Operating Temp: 60°C
  • Country of Origin: Spain
  • 0Types Available

    uPVC 3 Way Ball Valves L-Port (Female BSP Thread)

    A uPVC 3-Way L-Port Valve is a type of flow control valve made from unplasticized polyvinyl chloride (uPVC). The "L-port" refers to the L-shaped bore in the internal ball that directs flow between two ports at a 90-degree angle. These valves are widely used in irrigation systems, water treatment plants, swimming pools, aquaculture, and chemical processing because they are durable, resistant to corrosion, and lightweight.



    The 3-way valves typically come in two variations, T-Port and L Port:

    • L-Port: Diverts flow between two outlets (e.g., inlet → outlet A or inlet → outlet B).

    • T-Port: Can allow mixing, splitting, or diverting of flow between three ports.



    Features of uPVC 3-Way L-Port Valve:

    • Port Type: Female BSP Thread
    • 3-Way Valve Type: L-Port
    • Port Sizes: Available in 1/2" (15mm), 3/4" (20mm), 1" (25mm), 1.25" (32mm), 1.5" (40mm), & 2" (50mm) Female Thread BSP Ports. **Please keep in mind that the "Common Size name" and the actual thread size of the ports do differ; please see the table below for the actual thread sizes.

    • Material: uPVC (resistant to corrosion, scaling, and many chemicals).

    • Operation Type: Manual Handle

    • Maximum Pressure Rating: 10bar / 145psi.

    • Maximum Operating Temp: 60°C.

    Applications:

    • Pool water circulation

    • Agricultural irrigation

    • RO / water treatment systems

    • Aquaculture tanks

    • Chemical dosing systems



     Advantages:

    • Lightweight and easy to install.

    • Long service life (doesn’t rust like metal).

    • Smooth internal surface reduces pressure drop.

    • UV-resistant (for outdoor use).

    • Cost-effective compared to stainless steel or brass.



    Other uPVC 2-Way & 3-Way Ball Valve Options Available:



    *
    *
    *
    Picture of uPVC 3-Way Ball Valve L-Port (Threaded) - 1/2" / 15mm
    uPVC 3-Way Ball Valve L-Port (Threaded) - 1/2" / 15mm
    Port:
  • Type: Female Thread
  • 3-Way Valve Flow Type: L-Port
  • Size: 1/2"
  • Common Size Name: 15mm
  • Actual Size (Female Thread): 19mm

  • Specifications:
  • Material: uPVC (resistant to corrosion, scaling, and many chemicals)
  • Operation Type: Manual Handle
  • Maximum Pressure Rating: 10bar / 145psi
  • Maximum Operating Temp: 60°C
  • Dimensions: 56mm x 115mm
  • Availability: 1 in stock
    R1 190,00
    i h
    Picture of uPVC 3-Way Ball Valve L-Port (Threaded) - 3/4" / 20mm
    uPVC 3-Way Ball Valve L-Port (Threaded) - 3/4" / 20mm
    Port:
  • Type: Female Thread
  • 3-Way Valve Flow Type: L-Port
  • Size: 3/4"
  • Common Size Name: 20mm
  • Actual Size (Female Thread): 24.5mm

  • Specifications:
  • Material: uPVC (resistant to corrosion, scaling, and many chemicals)
  • Operation Type: Manual Handle
  • Maximum Pressure Rating: 10bar / 145psi
  • Maximum Operating Temp: 60°C
  • Availability: 3 in stock
    R1 445,00
    i h
    Picture of uPVC 3-Way Ball Valve L-Port (Threaded) - 1" / 25mm
    uPVC 3-Way Ball Valve L-Port (Threaded) - 1" / 25mm
    Port:
  • Type: Female Thread
  • 3-Way Valve Flow Type: L-Port
  • Size: 1"
  • Common Size Name: 25mm
  • Actual Size (Female Thread): 31mm

  • Specifications:
  • Material: uPVC (resistant to corrosion, scaling, and many chemicals)
  • Operation Type: Manual Handle
  • Maximum Pressure Rating: 10bar / 145psi
  • Maximum Operating Temp: 60°C
  • Availability: 1 in stock
    R1 760,00
    i h
    Picture of uPVC 3-Way Ball Valve L-Port (Threaded) - 1.25" / 32mm
    uPVC 3-Way Ball Valve L-Port (Threaded) - 1.25" / 32mm
    Port:
  • Type: Female Thread
  • 3-Way Valve Flow Type: L-Port
  • Size: 1.25"
  • Common Size Name: 32mm
  • Actual Size (Female Thread): 39mm

  • Specifications:
  • Material: uPVC (resistant to corrosion, scaling, and many chemicals)
  • Operation Type: Manual Handle
  • Maximum Pressure Rating: 10bar / 145psi
  • Maximum Operating Temp: 60°C
  • Availability: 1 in stock
    R2 310,00
    i h
    Picture of uPVC 3-Way Ball Valve L-Port (Threaded) - 1.5" / 40mm
    uPVC 3-Way Ball Valve L-Port (Threaded) - 1.5" / 40mm
    Port:
  • Type: Female Thread
  • 3-Way Valve Flow Type: L-Port
  • Size: 1.5"
  • Common Size Name: 40mm
  • Actual Size (Female Thread): 45.5mm

  • Specifications:
  • Material: uPVC (resistant to corrosion, scaling, and many chemicals)
  • Operation Type: Manual Handle
  • Maximum Pressure Rating: 10bar / 145psi
  • Maximum Operating Temp: 60°C
  • Availability: 1 in stock
    R2 850,00
    i h
    Picture of uPVC 3-Way Ball Valve L-Port (Threaded) - 2" / 50mm
    uPVC 3-Way Ball Valve L-Port (Threaded) - 2" / 50mm
    Port:
  • Type: Female Thread
  • 3-Way Valve Flow Type: L-Port
  • Size: 2"
  • Common Size Name: 50mm
  • Actual Size (Female Thread): 57.2mm

  • Specifications:
  • Material: uPVC (resistant to corrosion, scaling, and many chemicals)
  • Operation Type: Manual Handle
  • Maximum Pressure Rating: 10bar / 145psi
  • Maximum Operating Temp: 60°C
  • Availability: 2 in stock
    R3 360,00
