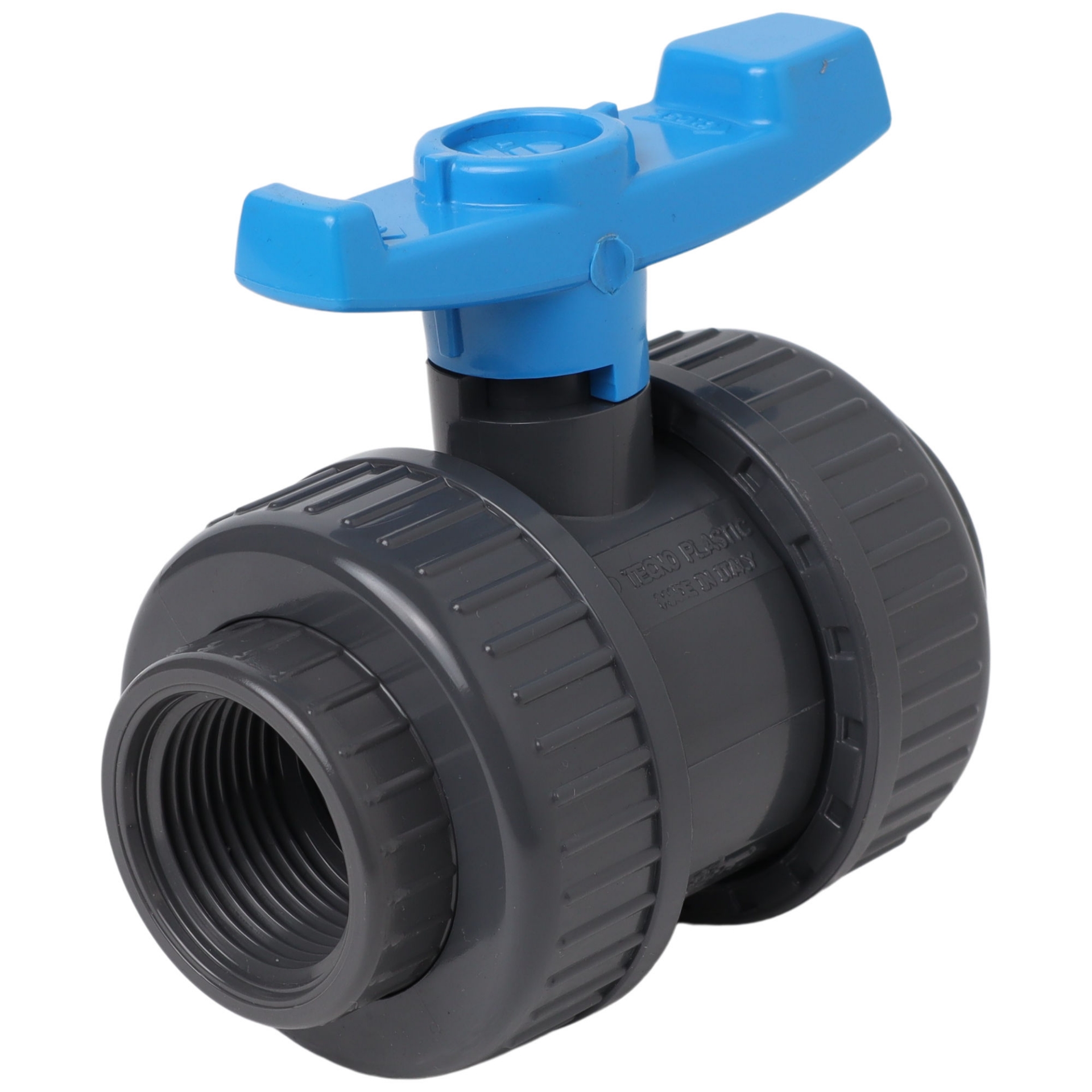

PVC Double Union Ball Valve Thread Type - 1.25"/ 32mm

The PVC Double Union Ball Valve is a durable, corrosion-resistant 2-way valve made of unplasticized polyvinyl chloride (uPVC).

Material: The body, handle, stem, and union connections are made from PVC-U (unplasticised polyvinyl chloride), while the ball seats are made from PTFE (Polytetrafluoroethylene) and O-rings are made from EPDM (Ethylene Propylene Diene Monomer).

The PVC Double Union Ball valve is rated for a maximum of 16bar / 232psi.

Port Size of PVC Double Union Ball Valve BSP Female Thread - 1.25" / 32mm:

• Port Type: Female BSP Thread

• Port Size: 1.25"

• Common Size Name: 32mm

• Actual Size (Female Thread): 39mm

Features of PVC Double Union Ball Valve BSP Thread:

• PN16 (16bar) Union valve body made for rigid PVC

• Material: The valve body is made from unplasticized PVC (PVC-U), which is suitable for conveying potable (drinking) water and foodstuffs fluids. It offers high chemical resistance (according to ISO/TR 10358) and a working temperature range from 0°C to +60°C.

• Operation Type: Manual Handle.

• Double Union (D/U) Design: The true double union design allows the central body of the valve to be easily removed for maintenance (e.g., replacement of the PTFE ball seats or EPDM O-rings) without needing to dismantle the entire piping system..

 Advantages:

• Lightweight and easy to install.

• Long service life (doesn’t rust like metal).

• Smooth internal surface reduces pressure drop.

• UV-resistant (for outdoor use).

• Cost-effective compared to stainless steel or brass.
