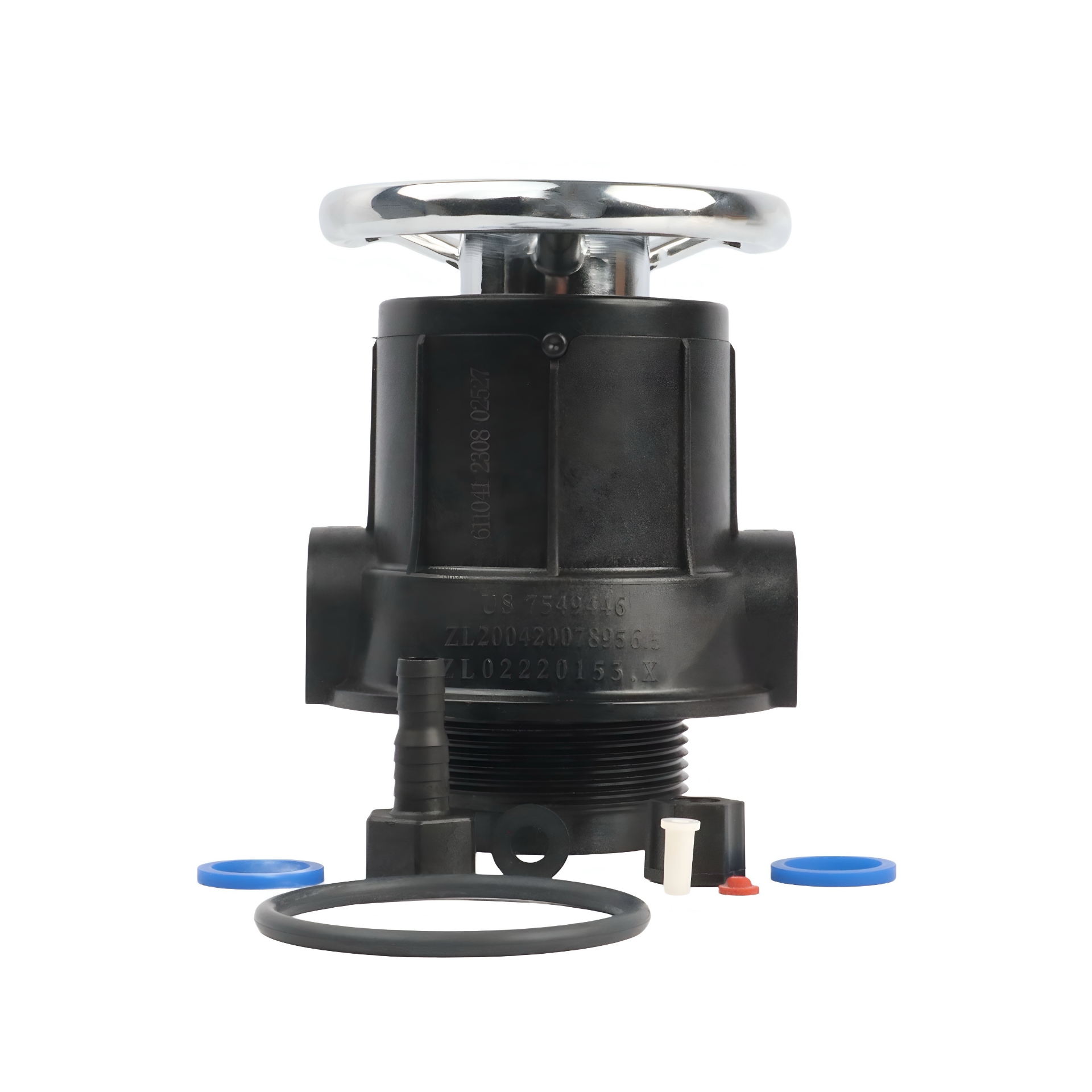

Manual Softener Valve Head - F64A1 (4m3/h)
The Manual Softener Valve Head allows you to manually cycle the water softener through the various stages of the regeneration process.
The Manual Softener Valve Head does not require any electricity to operate.
The Manual Softener Valve Head will only fit FRP vessels with the 2.5" Ports; it will not fit a vessel with 4" ports
Specifications:
- Inlet: 1" Female / Common Name: 25mm Female / Actual Size 32.9mm Female
- Outlet: 1" Female / Common Name: 25mm Female / Actual Size 32.9mm Female
- Connection to Brine Tank: 3/8"
- Drain: 1/2" Male / Common Name: 15mm Male / Actual Size 21.6mm Male
Selecting Venturi Injector Insert Colour for Runxin Softener Valve
The venturi in a water softener is a vital part of the brine draw system, responsible for pulling saltwater (brine) from the brine tank into the softener’s resin tank during regeneration. It works based on the Venturi effect, where fast-moving water through a narrow nozzle creates suction, this suction then pulls the brine mixture from the brine tank in to water softener's vessel.
A venturi injector insert is a small, crucial component located inside the softener's venturi. The venturi Injector insert controls the rate at which the brine mixture is drawn into the softener's vessel. The larger the Injector insert's port and o-ring are, the faster the brine mixture is drawn. And the smaller, the slower the brine mixture will be drawn into the water softener.
The different sizes of Injector Inserts are colour coded; the correct colour for a water softener will depend on the width of the FRP Vessel used for the water softener. The FRP Vessels are typically rated in inches, Normally, this information can be found on the label on the side of the vessel, which typically states something such as 8x44, which means the vessel is 8" (width) by 44" (Height). So you would then use the 8" (width) as your indicator, which in this case would mean a " Yellow" Injector insert is required for that size softener. .jpeg)
PLEASE NOTE that the softener valve comes standard with the Green colour Injector Insert, which is meant for larger FRP vessel sizes (16"), and may cause issues with smaller FRP vessels when regeneration takes place. Please note that FIltershop cannot be held responsible if the incorrect injector size is selected for your Softener's vessel size. If you are not sure what color to select for your FRP Vessel, please feel free to contact Filtershop for assistance.
