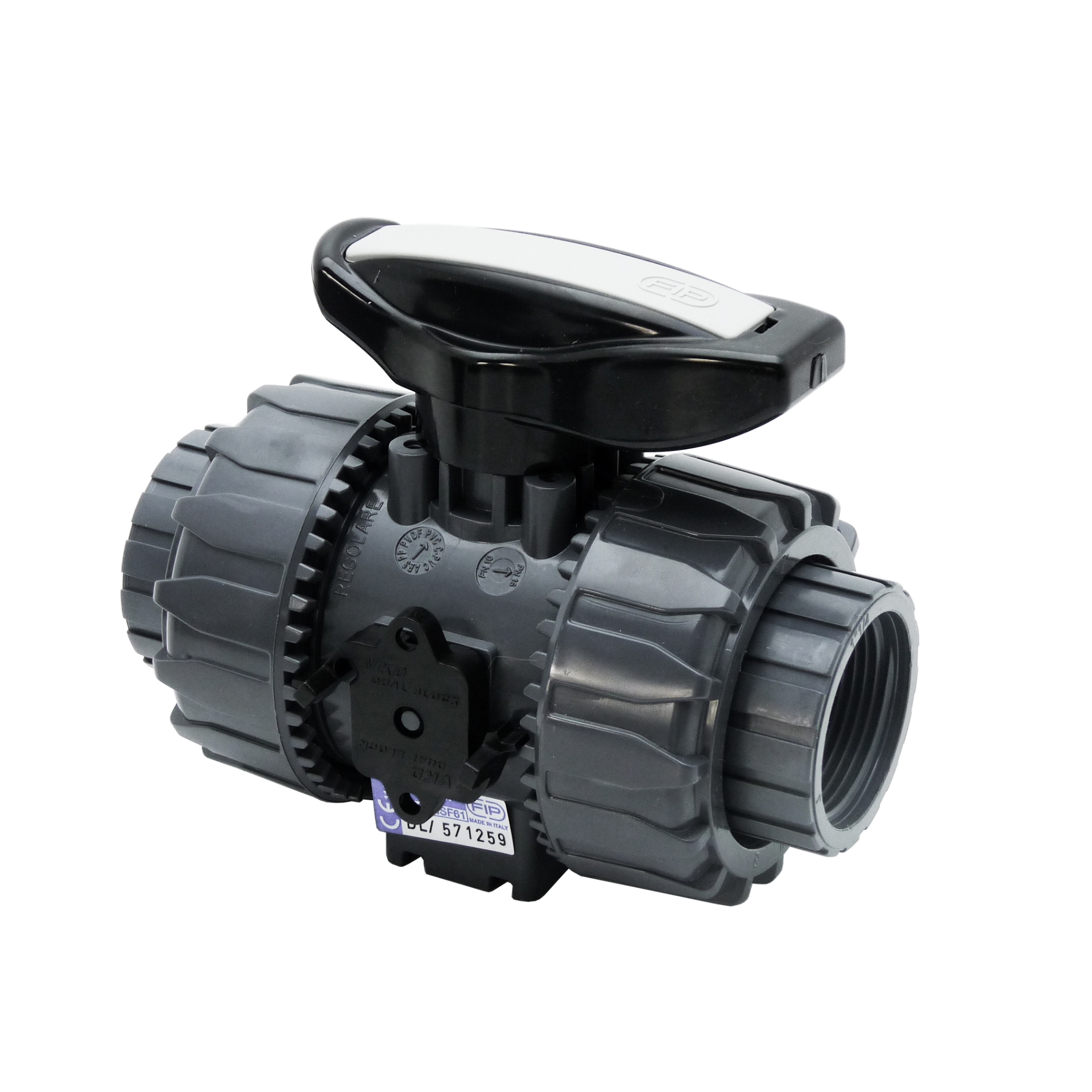

FIP VKD Dual Block® 2 Way Ball Valve (Plain /Glue) - 20mm

FIP VKD Dual Block® 2 Way Ball Valve (Plain /Glue) - 20mm

The FIP VKD DUAL BLOCK® 2-way ball valve is a high-quality Thermoplastic true union ball valve, known for its robust design and innovative patented features like Dual Block® systems and the SEAT stop system. It is designed for demanding industrial applications involving water and various chemical fluids. The 2-way Valve is made of unplasticized polyvinyl chloride (uPVC).

DUAL BLOCK® is the new patented system developed by FIP that gives the possibility to lock the union nuts of true union ball valves in a preset position. The locking device then ensures the nuts are held in position even under severe service conditions: i.e. vibration or thermal expansion.

The FIP VKD DUAL BLOCK® 2-way ball valve is rated for a maximum of 16bar / 232psi.

Features of VKD Dual Block® 2 Way Ball Valve:

• Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise axial force effects.

• PN16 True Union valve body made for rigid PVC-U injection moulding, equipped with built-in bores for actuation. ISO 9393 compliant test requisites

• Easy radial dismounting allows quick replacement of O-rings and ball seats without any need for tools.

• DUAL BLOCK® System: A patented locking mechanism that ensures the union nuts remain securely tightened even under conditions of vibration or thermal expansion, preventing accidental disassembly.

• Actuation: Features an integrated bracket for easy installation of pneumatic or electric actuators for automated systems.

• Port Type: Glue / Plain (Solvent Cement / Weld)

• Port Size: 20mm

• Material: uPVC (resistant to corrosion, scaling, and many chemicals) & EDPM O-rings

• Operation Type: Manual Handle

• Maximum Pressure Rating: 16bar / 232psi.

• Maximum Operating Temp: 60°C.

• Dimensions: 54mm x 103mm

 Advantages:

• Lightweight and easy to install.

• Long service life (doesn’t rust like metal).

• Smooth internal surface reduces pressure drop.

• UV-resistant (for outdoor use).

• Cost-effective compared to stainless steel or brass.
