Atlas Filtri Trio SANIC Direct Line under the counter system
(Italian Made)
The Atlas Filtri Trio SANIC Direct line under-the-counter System is installed under the counter and is easy to maintain.
The Atlas Filtri Trio SANIC direct-line filter system can be wall-mounted or placed standing inside the cupboard.
The Atlas Filtri Trio SANIC direct-line system will remove sediment, mud, dirt, rust, chlorine, and heavy metals and create a barrier for bacteria.
With the optional upgrade to the Antibacterial Melted Spray and/or the Absolute Pleated Filter cartridge, the system becomes one of the industry-leading under-the-counter filter systems for the removal of bacterial organisms from drinking water.
The Atlas Filtri Trio's Sanic Antimicrobial Housings are manufactured using proven Microban Silver-Based Technology to protect against the growth and reproduction of microorganisms, such as bacteria.
Essentially the Microban Silver-Based Technology helps to extend the life span of a filter cartridge inside of the housings, by slowing down how quickly bacteria may grow inside of the housing and on the filter cartridge itself.
Keep in mind, that while the Microban technology will slow down the growth of bacteria inside the housing, it is not designed to eliminate and/or remove bacteria from source water by itself. In order to eliminate and/or bacteria from a water source, you would require something such as chlorine dosing, or Ultra Violet (UV), or Membrane technologies (UF, NF, or RO), or 0.1-micron Filters, or any combination of these different processes. If you are looking to eliminate and/or remove bacteria and microorganisms from water, then we would recommend contacting our sales team for advice.
Benefits of Atlas Filtri Filtration Products Featuring Microban® Antibacterial Technology
- Protected against bacterial proliferation by up to 99.99%
- Proven to stay cleaner and fresher in-between cleaning
- Help to maintain water purity by minimizing the risk of bacterial cross-contamination. With selected products, water is subject to bacteriostatic triple pre-filtration to eliminate impurities, pollutants, bad odors, and flavors
- Less likely to stain or develop bad odors
- More durable and easier to keep clean
- Antibacterial properties remain active for the expected lifetime of the product - they will not wash off or wear away
- Tested to international standards to ensure excellent antimicrobial performance
The Atlas Filtri Trio Direct-Line system's housings and brackets are manufactured in Italy and come with a two-year warranty* on the components.
The housings are rated for a maximum of 8 bar (115psi), compared to the industry standard housings which are normally only rated for around 6 bar / 90psi.
The top "heads" of the Atlas Filtri Trio system are molded as a single complete unit (Manifold) and not individual housings that are then connected with fittings with thread sealing tape as is typically the standard for triple big blue systems. This leads to a far more robust unit, with fewer potential points of failure/leaks as can occur between individual housings that have been joined with individual fittings with thread sealing tape.
Benefits:
Filtered water tastes and smells great
Preserve the natural minerals in the water
Removes chemicals such as Chlorine
- The 0.1-micron pleated filter captures bacteria and fine particles from the water
No water is wasted during filtration
Low maintenance
Easy to install
Low filter replacement cost
No electricity required
Installed onto the cold water line of your existing faucet
Keep in mind:
The direct line filter set has a life span of 12 months. Keep in mind, that this life span is based on using municipal-quality water; depending on the quality of your water source, the life span of the filters may be much less.
The direct-line filter system will not change the mineral content of the source water in any way. Minerals are too small to be removed by the filters in this filtration unit, so if your water has a salty/brackish taste, the direct line will not alter this in any way.
- The direct-line filter system will not address problems such as Hardness (limescale / kalk), or fluoride content in a water source. With these types of issues in water we would instead recommend looking at one of our Under-the-counter Reverse Osmosis (RO) filtration system options.
The direct line systems housings are rated for a maximum pressure of 8 bar/115psi, and a maximum operating temperature range of 4 - 38°C. Failure to adhere to these operating parameters will void any warranty on the system.
Filter Set Options
Filter set Option 1: 1 Micron, Premium KDF Cartridge, & 0.1um Pleated Filter (Nominal)
Filter set Option 2: Antibacterial 1 Micron, Premium KDF Cartridge, & 0.1um Pleated Filter (Nominal)
Antibacterial 1-Micron Sediment Filter
The Melted Spray Antibacterial filters like the standard melted Spray type are designed to capture dirt, sediments, visible particles, and bacteria.
However, the Antibacterial Melted Spray sediment filters have had a silver ion additive added to their material, which creates a bacteriostatic function to inhibit the growth of bacteria on the surface of the filter, helping to ensure healthier product water and a longer life span of the filter.
This option is ideal for source waters that have a very high bacterial / organism count and will help to extend the life of the filter.
Filter set Option 3: Antibacterial 1 Micron, Premium KDF Cartridge, & 0.1um Absolute Pleated Filter
Absolute 0.1 Micron Pleated Filter
Most sediment filter cartridges such as the standard 0.1 Micron Pleated Filter, have what is referred to as a nominal filter rating. In other words, the micron rating of a filter is the approximate "average" size (diameter) of the pores on its surface and within the cartridge itself. It is generally accepted that filters with nominal filter ratings will retain (trap) around 85% of the particles equal or greater in size to the stated micron rating.
An "Absolute" filtration rating means that the filter material has been specifically manufactured, and passed lab testing to ensure that 99.9% of the particles larger than the stated micron rating will be captured (trapped) on the surface or within the filter itself. In the case of our 0.1-micron Absolute Filters, this means that you will get the most effective removal of bacteria and organisms possible with this type of Pleated Filter Cartridge.
Atlas Filtri Trio System Housing Options

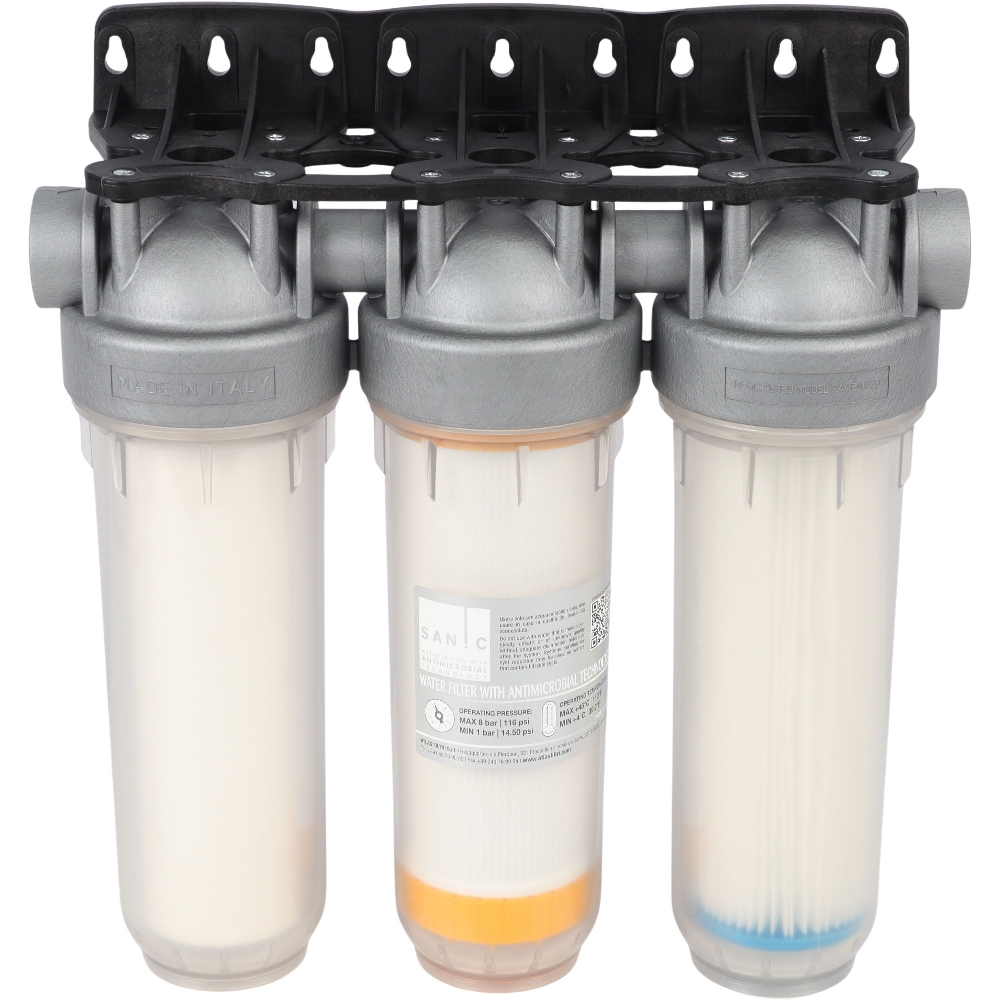

The Atlas Filtri Trio SANIC Direct line system is available in either Grey or Clear Plastic Housing variants. Please note that while both the blue and clear housing options are rated for a maximum pressure of 8 bar / 115psi, the nature of clear plastic does mean it is more susceptible to damage from mishandling. Another thing to keep in mind if you wish to go with the clear housing option is to then keep the system out of direct sunlight, as this will likely lead to algae growth causing the clear housings to go green.
Installation of the Atlas Filtri Trio Direct Line System
Filter System Installations:
Filtershop does offer installation in and around Centurion, Pretoria and Johannesburg.
If you are interested in having one of our technicians come to your home, business or site to have a filter system installed, please contact us via email: [email protected] and we will get back to you with more information.
Note: Additional charges for any type of countertop other than wood, may be charged, as special drilling will be required which makes use of a very unique drill bit.
Warranty*
All Atlas Filtri Brand Housings, systems, components, fittings, and parts come with a 2-year* warranty. Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded. The Warranty does not cover consumables such as Filter cartridges and RO/Nano membranes, etc.
Additional Options:
Audio Leak Alarm
