Bronze Series 100 Litre Ultra Clear Glass Filtration System
The Ultra Clear Glass media is a High-Tech filtration media, used for the removal of sediment, dirt, rust, and other large particles in water. The Ultra Clear Glass Filtration Media is produced from virgin plate-glass.
The Ultra Clear Glass Media can filter down to as fine as +/- 5 Micron, provided the finer grade media is used.
The Ultra Clear Glass Filtration media replaces traditional Silica Sand Media. Filtering to a much finer level, as well as having a much longer life span than typical silica sand media.
To put this in perspective, look at the sizes of the following objects:
- Eye of a needle ……………………………………….1230 micron
- Dot (.)…………………………………………………………615 micron
- Table salt……………………………………………………100 micron
- Human Hair (average diameter)………………….60 micron
- White Blood Cell…………………………………………..25 micron
- Red Blood Cell………………………………………………..8 micron
- Spider Web………………………………………………...2 - 3 micron
- Bacteria (harmful)……………………………………0.3 - 2 micron
With a nominal sediment filter, 60 – 98% of all the particles larger than the specified filter micron number are removed.
The Ultra Clear Glass Filtration Media is available in three grades:
- Ultra Fine (0.425mm to 0.597mm Granules)
- Fine (0.597mm to 1.4mm Granules)
- Coarse (1.4mm to 2mm Granules)
Benefits
- Reduced Backwash time. Water Savings of up to 50%, compared to traditional sand silica media
- Longer Life Span, up to 15 years. Whereas silica sand typically lasts 3 to 5 years.
- Reduced Bacteria growth (Biofilm) through Negative charged surface Area, adding to the increase in Life span.
- Made from 100% Virgin plate-glass.
- Environmentally Friendly, Glass Media is 100% recyclable.
- Filters down to +/- 5 Micron (with Grade 0)
- Particles do not clump together, allowing for easier flow without resistance.
- More uniform filtration through media, without "channels" forming in the media bed.
What is included with a Bronze Series Ultra Clear Glass Media Vessel
The Bronze Series 100 Litre Ultra Clear Glass Media Filter Vessel comes standard with the following:

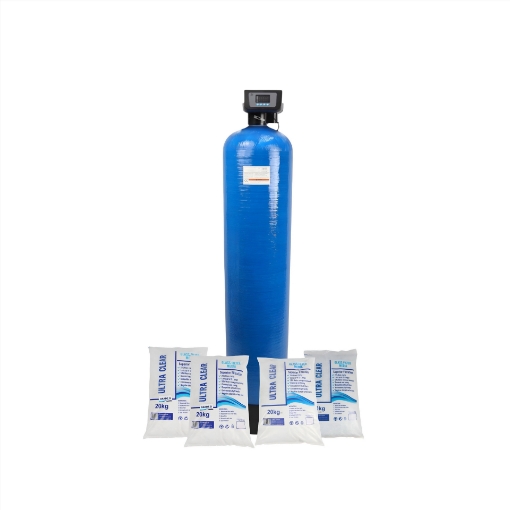

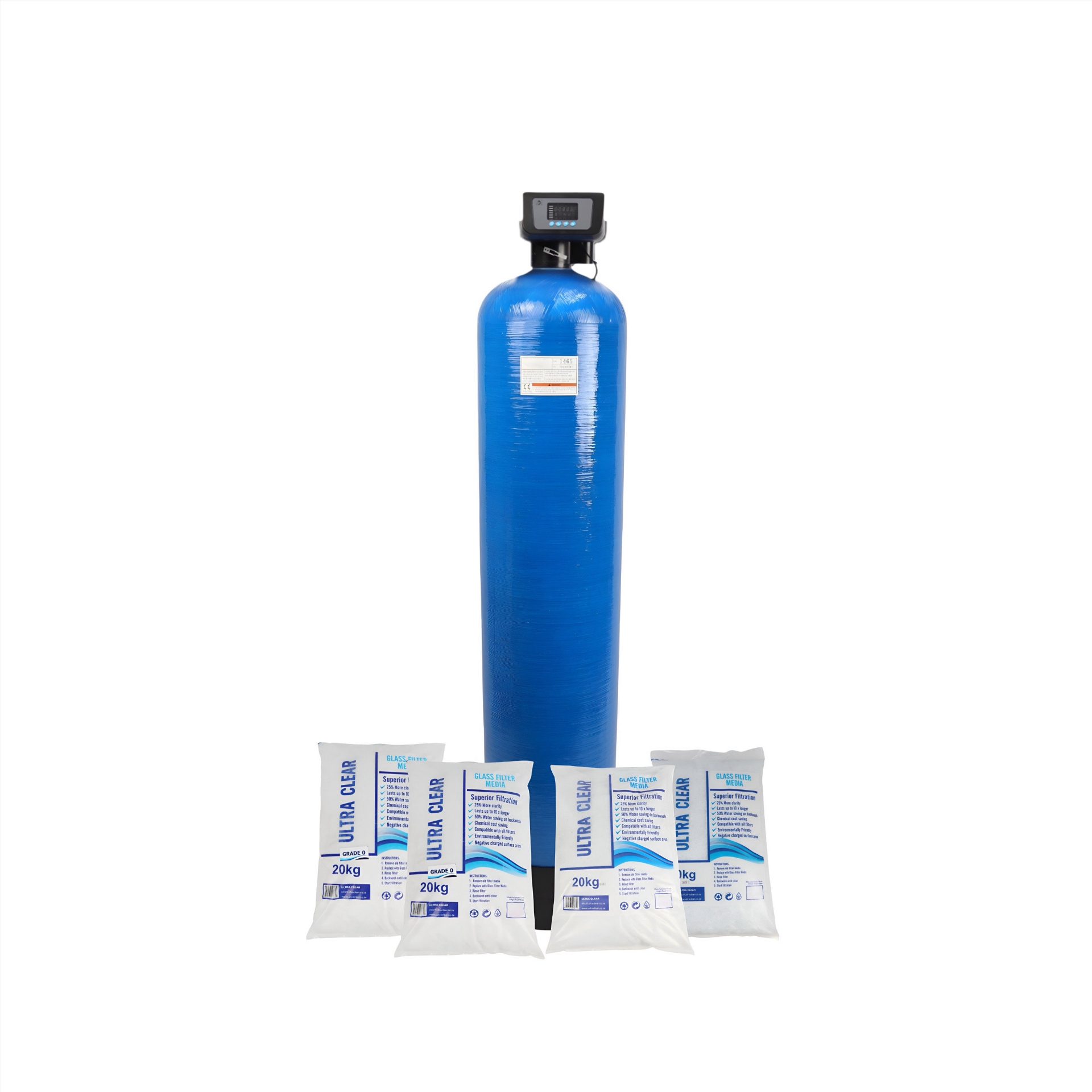

- 1 x 100 Litre (14*65") FRP Vessel*
- 1 x F67C1 Automatic Purification Valve Head
- 4 Bags of Ultra Clear Media*
- Set of Top & Bottom Strainers
- Riser Pipe
The Bronze Series of Ultra Clear Systems uses the Runxin F67C1 Automatic Purification Valve head. The F67C1 valve head's settings allow you to set the backwash cycle to be "triggered" after a set time (for example, every 5 days).
Filtershop also has several other Ultra Clear Systems series available:
What size Ultra Clear Glass Media Vessel should I get?
The Bronze Series Ultra Clear Glass Media Vessels come in 3 sizes:
- 50 Litre Bronze Series Ultra Clear Glass Media Vessel (Maximum Flow rate: +/- 1500LPH @ Maximum Turbidity of 2 NTU*)
- 75 Litre Bronze Series Ultra Clear Glass Media Vessel (Maximum Flow rate: +/- 2000LPH @ Maximum Turbidity of 2 NTU*)
- 100 Litre Bronze Series Ultra Clear Glass Media Vessel (Maximum Flow rate: +/- 2500LPH @ Maximum Turbidity of 2 NTU*)
Not sure which size Ultra Clear Glass Vessel to get for your water and application? Contact Filtershop, and we will be happy to guide you on the best size unit for your application.
*While the ultra-clear vessels do have a liter per hour flow rating, this is only meant as a guide and is based on the turbidity level being equal to or less than 2 NTU. In situations where the turbidity level is far higher, the flow rate capacity of these units will be far less.
**Keep in mind that the "deeper" (more volume) an ultra clear vessel, the more effective the removal of sediment will be, and the less likely that some sediment will "bypass" through the media and not be captured by the media.
Ultra Clear Compared to Traditional Silica Sand
Negative Charged Surface Area
Self-sterilizing surface
- When in contact with water flowing through the filter, a small number of free radicals (O- and HO-) are formed on the surface. These free radicals have a very strong oxidation potential which protects the media from bacterial growth
Molecular structure
- Plate glass contains metal oxides which improve the durability, shock resistance and temperature resistance of the product.
Ultra Clear "Sub-angular" Granule Shape
Particle shape is of extreme importance. Sub-angular particles with high sphericity are needed for the increased contact area. Other crushing methods result in splintered particles that pack tightly against each other and restricts water flow.
Benefits
- Sub-angular Particle Shape Packs Less Dense, preventing resistance and allow for more efficient flow.
- Prevents "channeling" from occurring in the media bed, by having a uniform shape across the Bed Depth.
- Creates an optimum amount of surface area, helping to more effectively remove sediments and particles.
- Is safe to handle (does not cut hands)
Certification
Ultra Clear Glass Media has the following certification:
- ISO 9001:2015
- ISO 14001:2015
- OHSAS 18001:2007
Ultra Clear Glass Media Vessel Normal Operation and Backwashing

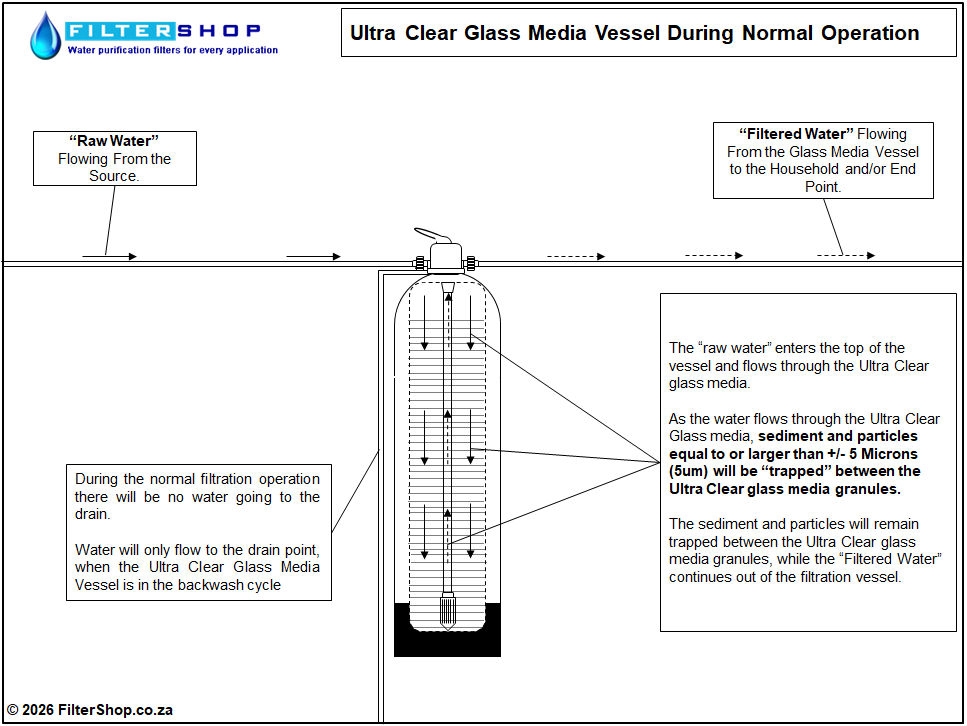

During Normal, operation water flows into the top of the vessel and travels all the way to the bottom of the vessel. As the water flows down through the vessel, all the particles, rust, dirt, mud, and other sediment is captured between the glass media granules. The water then enters the bottom strainer, flows up the riser pipe, and out the top of the vessel.
Installation Recommendations for Ultra Clear Glass Media Vessels
How to program the Digital F67C1 Automatic Valve Head
The Bronze Series of Ultra Clear Filtration systems use the Runxin F67C1 Automatic Purification Valve head. The F67C1 valve head's settings allow you to set the backwash cycle to be "triggered" after a set time (for example, every 5 days). Please note that the F67C1 Valve head does not measure or keep track of how many litres (and/or Gallons) have gone through the softener systems.
.jpeg)
Below is a video on how to program and use the F67C1 Automatic Purification Valve Head.
Warranty*:
The Bronze Series Ultra Clear Glass Media Vessels come with a 1-year* Warranty. Please note that the warranty does not cover the filtration media, as its life span is completely dependent on the quality of the source water and how regularly the backwash cycle has been run.
*Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the max operating parameters for the product are exceeded.
**Please note that with any FRP Vessel-based water filter systems. It is highly recommended that a Vacuum breaker valve be installed after the vessel. To help protect the vessel from damage due to any pressure differential across the vessel. Failure to install a vacuum breaker valve after a FRP Vessel will void the vessel's warranty.
***The Filtration Vessels Components are rated for a maximum pressure of 6 bar (90psi). If your source water has higher pressure or is prone to "water hammering" ( pressure spikes), it is strongly recommended that a pressure regulator/reducer be installed before the system. Failure to do so will void any warranty on the components for any damage caused by water pressure.
Additional Options: Pressure Gauges, Flow Meter (Rotameter), and By-pass piping Combination Options
There are a number of different fittings and additions that can be added to the Filttration Vessel System, including a By-pass, Inlet and outlet Pressure Gauges, as well as a 250-2500LPH Flowmeter (Rotatmeter).
These additions can be added separately or in a number of combinations with one another. Please see below for information on the different fitting options.
*Please note that the picture above is just to illustrate an example of the pipe work used for a fitting combination setup. Depending on the system type and the fitting options selected, the pipework on your system will likely appear different.
**Please note that these additional fitting combinations are built to order, and construction time is 2 to 3 working days from when payment has been received.
By-Pass Piping
Adding a bypass to the system allows you to divert the flow of water around the system if you need to conduct maintenance on the system.
Inlet and Outlet Pressure Gauges
Inlet Pressure Gauge allows you to monitor the pressure of the incoming source water Pressure. This will give you an indication that your water pressure is above the 6 bar maximum rating for the housings, in which case you can then install a pressure regulating valve before the filter system.
The Inlet Pressure gauge will also help to indicate whether the incoming source water pressure is too low, in which case a pressure pump can be added before the filter system.
Using an Outlet Pressure Gauge in combination with the inlet pressure gauge will give you an indication of the change in pressure (pressure “drop”) from before to after the filter system.
This will also allow you to see if and when the filters are starting to block up, indicated by a big change between the inlet and outlet pressure levels. Assisting you in knowing when to replace the filter cartridges inside.
Flow Meter (Rotameter) 250 to 2500LPH
The Flow Meter (Rotameter) allows you to see how much draw (flow rate) is growing through the filter system at a particular time and helps to give you an idea of how many litres per hour (LPH) you are using at a given time. For Example, flow rate (LPH) in a household when one versus two showers are running.
Additional Options:
Canvas Protective Cover for Runxin Valve Head
The canvas protective cover slides over the top of the valve head, helping to protect it from moisture and dust. The canvas cover has a clear plastic front, so you can see the valve's LED display without needing to remove the cover.
Runxin Brass Reducing Valve with Pressure Gauge
The Runxin PRV is designed to automatically reduce a higher inlet pressure to a steady lower downstream pressure, regardless of fluctuations in flow rate or inlet pressure. This ensures that downstream components receive water at a consistent pressure, enhancing system efficiency and longevity.
Constructed with high-quality materials, the valve offers durability and resistance to corrosion, making it suitable for long-term use in various environments. Its compact design allows for easy integration into existing systems without requiring significant modifications.
The valve operates effectively within a pressure range of 2 to 6 bar (0.2 to 0.6 MPa) and a temperature range of 5°C to 50°C, accommodating a wide array of water treatment applications. Whether used in reverse osmosis (RO) systems, filtration setups, or general water supply networks, the Runxin PRV delivers reliable performance.
