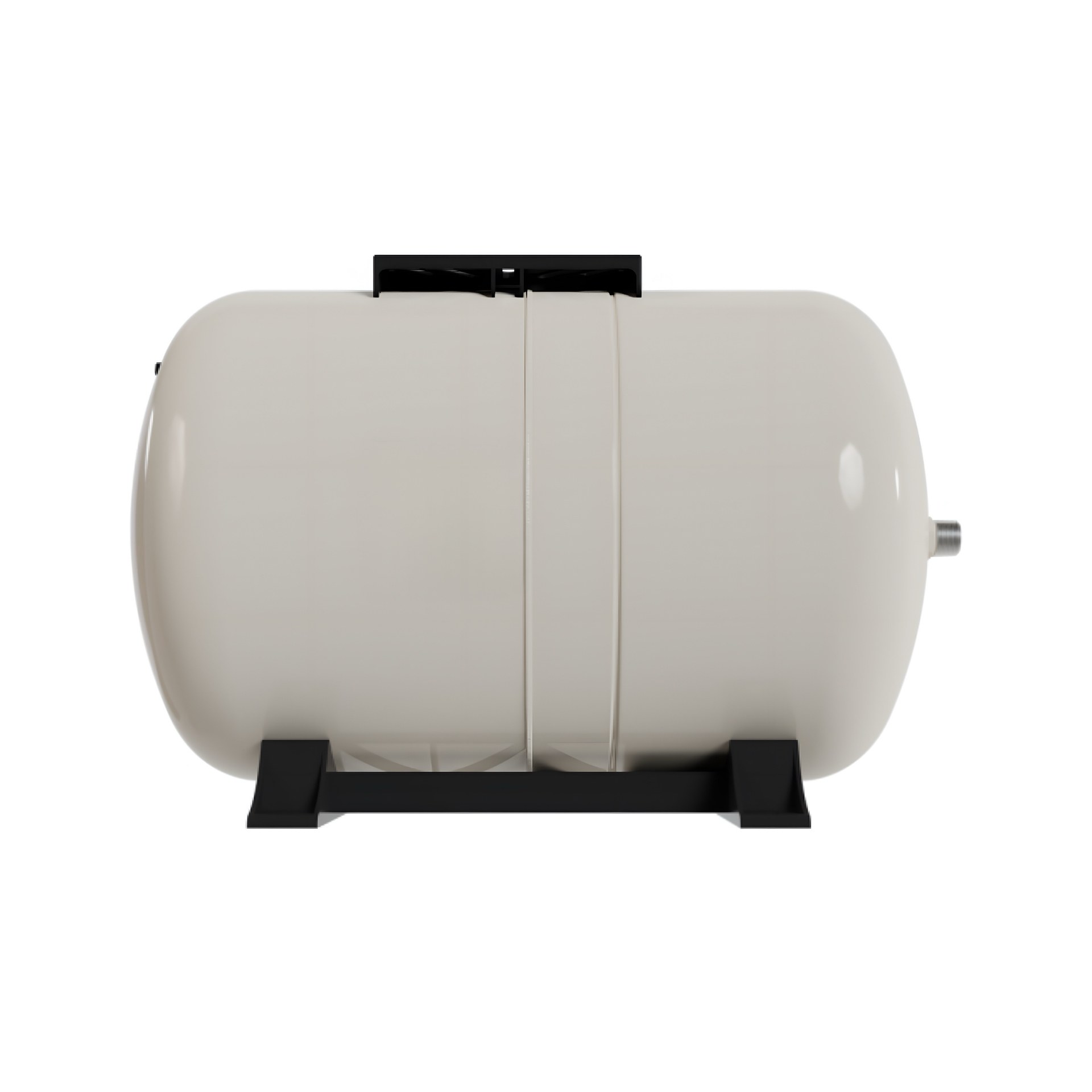

PressureWave™ 100 Litre Horizontal Pressure Tank - PWB-100LH

Be the first to review this product

Tank Code: PWB-100LH

Type of Pressure Tank: Horizontal

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 100 Liter / 26.42 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 720mm / 72cm

Diameter: 43cm / 430mm / 16.90inch

Warranty*: 5 Years

Old price: R9 500,00

Price: R7 995,00

Qty:

i h

Overview
Contact Us

PWB-100LH - 100 Litre Inline Pressure Tank

The PressureWave™ 100-liter / 26.42-gallon horizontal pressure tank is engineered for durability and performance. Constructed with a virgin polypropylene liner and a high-grade butyl diaphragm, it is reinforced at wear points for extended life. The patented stainless-steel water connection ensures a dual water/air seal, preventing leaks and reducing maintenance. The brass air valve with an O-ring sealed cap enhances reliability. This tank is finished with a dual-layer polyurethane paint for long-lasting protection against corrosion.

With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this tank suits various applications including booster systems, irrigation, and thermal expansion. Its horizontal orientation allows for flexible installation, while the robust carbon steel shell guarantees strength under pressure.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-100LH

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 100 Liter / 26.42 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 720mm / 72cm

Diameter: 43cm / 430mm / 16.90 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
