Coelbo Switchmatic 1

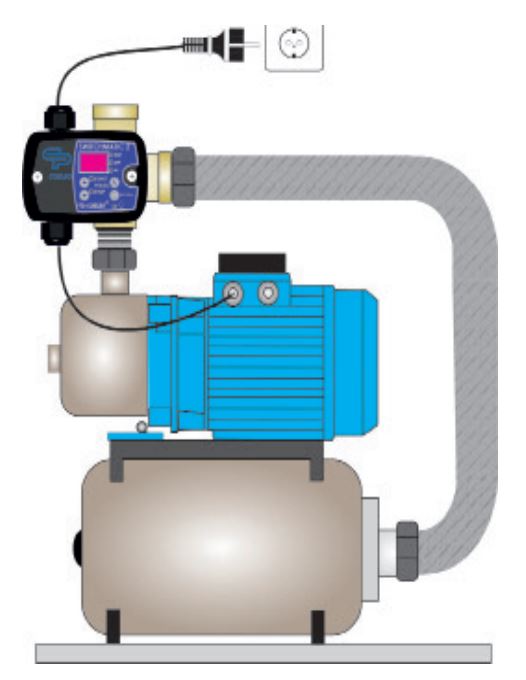

T-KIT Switchmatic is an electronic pressure switch integrated in a 3-ways fitting with a digital pressure gauge. It can manage the start and stop of single-phase electric pumps up to 3 HP (2,2 kW). Cut-in and cut-out pressure implementation can be set easily and accurately through a users friendly control panel. Wiring is carried out identically to a conventional electromechanical switch.
It can operate as a differential pressure switch and as an inverted pressure switch. There is an internal non-return valve.
OPERATING CHARACTERISTICS
- Electronic pressure switch integrated with a 3 ways fitting.
- Inner non-return valve.
- Sleep mode with low power consumption.
- Inner pressure transmitter.
- Integrated pressure gauge with bar and psi instantaneous display.
- User-friendly control panel with 3-digit display, led-lights, and push buttons.
- Dry-running protection by current (for type T-KIT Switchmatic 2) and for minimal pressure (for type T-KIT Switchmatic 1).
- ART function (Automatic Reset Test). If the device has been stopped due to the action of the safety system against dry operation, the ART tries to connect the pump, with a programmed periodicity because the water supply could have been restored.
- Overload protection (only type T-KIT Switchmatic 2).
- Rapid-cycle alarm: when the hydropneumatic tank has lost the air and frequent start-stops are produced an alarm is activated and is delayed the start.
- Manual start.
- Operation modes: differential, inversed differential, and synchronized (only for T-KIT Switchmatic 2).
- Advanced MENU with complementary settings.
- EMC-certified and Electrical Safety certified.
- RoHS 2 and WEEE compliant

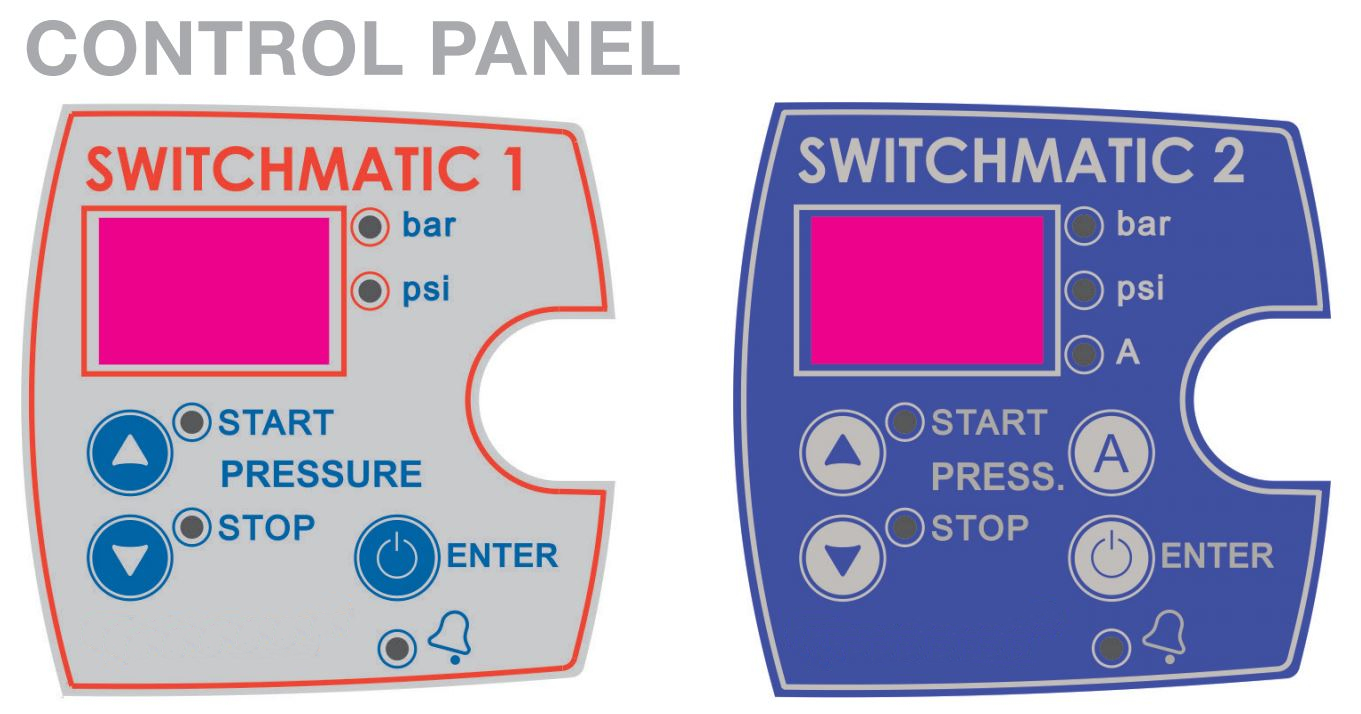

CONTROL PANEL
- 3 digits display:
- Operating mode: Instantaneous pressure
- Set mode: Cut in and cut out pressure. - Bar-psi led lights (green):
- Operating mode: Bright bar or psi.
- Pump on: Flashing bar or psi. - Star-Stop Led (yellow):
- Bright: displayed Pressure start or Pressure stop.
- Flashing: Setting Psart or Pstop - Push Buttons Up and down: Increase or decrease configuration parameters.
- ENTER push-button:
- Manual start and stop
-Confirm configuration value.
