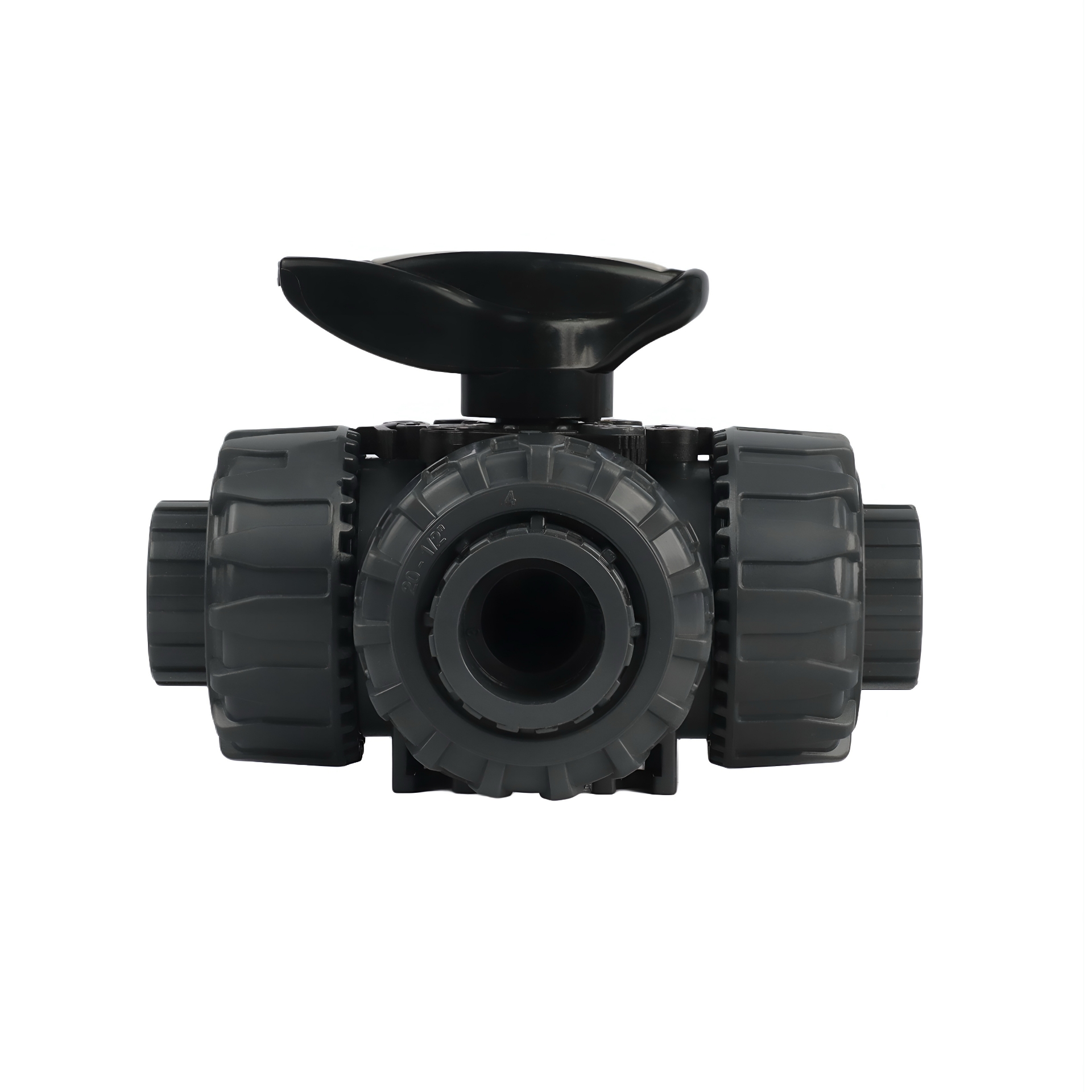

FIP TKD Dual Block® 3 Way Ball Valve T-Port (Plain /Glue) - 20mm

FIP TKD Dual Block® 3 Way Ball Valve T-Port (Plain /Glue) - 20mm

A FIP DUAL BLOCK® T-port is a specific configuration of a true union 3-way ball valve manufactured by FIP, designed for versatile fluid control applications, including mixing, splitting, and diverting. The "T-port" refers to the T-shaped bore in the internal ball, which creates multiple flow paths depending on the handle position. The 3-way Valve is made of unplasticized polyvinyl chloride (uPVC).

DUAL BLOCK® is the new patented system developed by FIP that gives the possibility to lock the union nuts of true union ball valves in a preset position. The locking device then ensures the nuts are held in position even under severe service conditions: i.e. vibration or thermal expansion.

The 3-way valves typically come in two variations, T-Port and L Port:

• L-Port: Diverts flow between two outlets (e.g., inlet → outlet A or inlet → outlet B).

• T-Port: Can allow mixing, splitting, or diverting of flow between three ports.

Features of TKD Dual Block® 3 Way Ball Valve T-Port:

• Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise axial force effects.

• PN16 True Union valve body made for rigid PVC-U injection moulding, equipped with built-in bores for actuation. ISO 9393 compliant test requisites

• Easy radial dismounting allows quick replacement of O-rings and ball seats without any need for tools.

• Function: The T-port design offers flexibility in industrial applications, allowing:
  • Mixing: Combining flow from two inlet ports into a single outlet port.
  • Splitting/Distribution: Dividing flow from a single inlet port into two outlet ports.
  • Straight-through Flow: Enabling flow between two opposite ports with minimal pressure drop.

• DUAL BLOCK® System: A patented locking mechanism that ensures the union nuts remain securely tightened even under conditions of vibration or thermal expansion, preventing accidental disassembly.

• Actuation: Features an integrated bracket for easy installation of pneumatic or electric actuators for automated systems.

• Port Type: Glue / Plain (Solvent Cement / Weld)

• 3-Way Valve Type: T-Port

• Port Size: 20mm

• Material: uPVC (resistant to corrosion, scaling, and many chemicals)

• Operation Type: Manual Handle

• Maximum Pressure Rating: 16bar / 232psi.

• Maximum Operating Temp: 60°C.

• Dimensions: 56mm x 115mm

 Advantages:

• Lightweight and easy to install.

• Long service life (doesn’t rust like metal).

• Smooth internal surface reduces pressure drop.

• UV-resistant (for outdoor use).

• Cost-effective compared to stainless steel or brass.
