ULTRAMax™ 100 Litre Vertical Pressure Tank - UMB-100LV

Be the first to review this product

Tank Code: UMB-100LV

Type of Pressure Tank: Vertical

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58psi

Nominal Volume: 100 Liter / 26.42 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 25 bar / 363 psi

Height: 819mm / 81.9cm

Diameter: 43.2cm / 432mm / 17in

Warranty*: 5 Years

R18 995,00

Qty:

i h

Overview
Contact Us

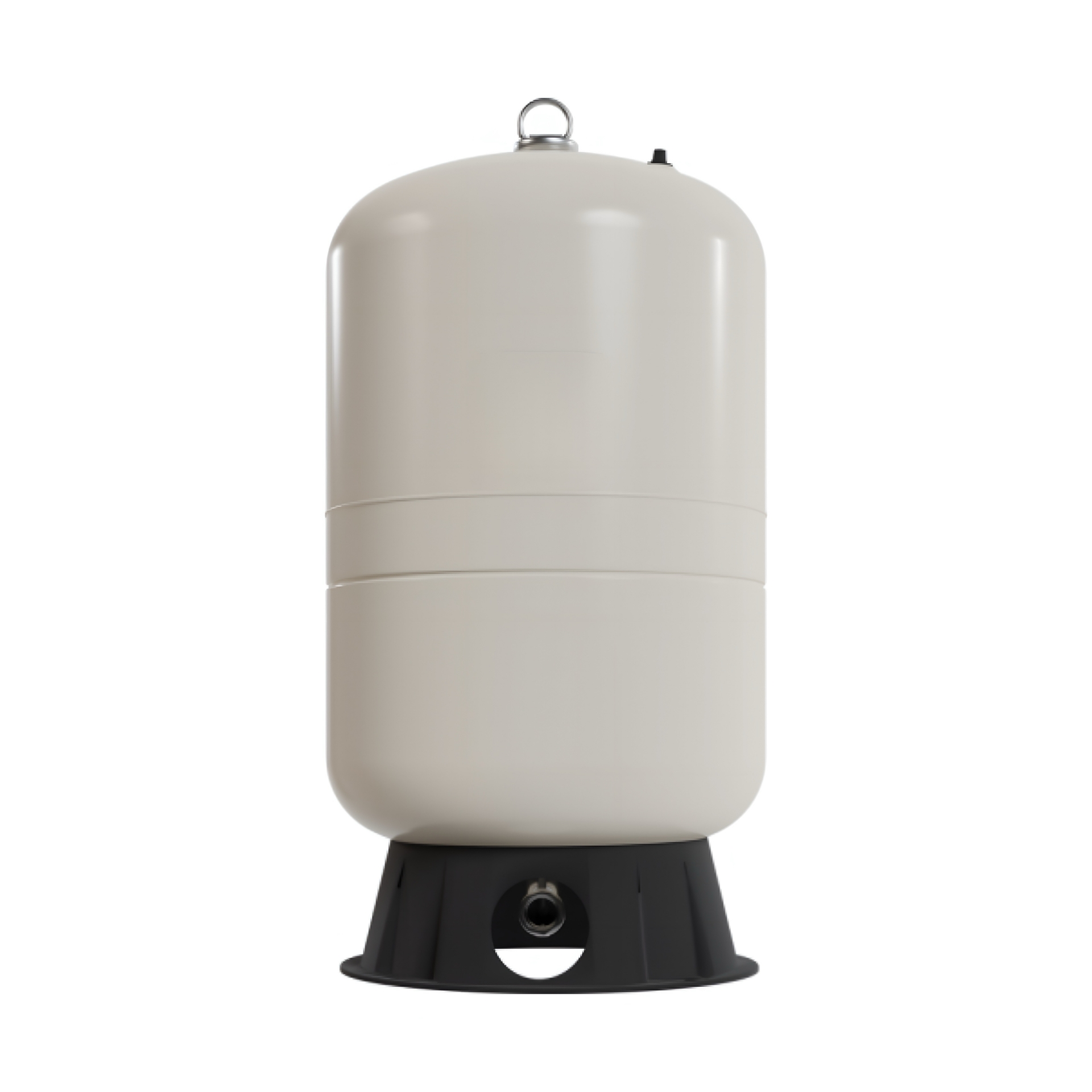

UltraMax™ 100 Litre Vertical Pressure Tank - UMB-100LV

The UltraMax™ Tank 100 liter / 26.42 gallon vertical model is designed for large-scale high-pressure applications. With its super thick steel construction and high-grade butyl diaphragm, it offers outstanding performance and durability. The patented stainless steel water connection and a leak-free air valve cap add to its reliable design.

Coated with Almond dual-layer polyurethane for exceptional corrosion resistance, this tank supports pressures of up to 25 bar / 363 psi. Its vertical orientation and 1" BSPP connection make it suitable for high-rise buildings, hospitals, schools, and extensive agricultural water systems, ensuring smooth operation in critical applications.

Deep private water supplies
Long-distance agricultural supply
Hotels
Hospitals
Schools and universities
High-rise buildings

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Virgin polypropylene liner
Patented stainless steel water connection
Super thick steel construction
Replaceable tank base
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: UMB-100LV

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 100 Liter / 26.42 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 25 bar / 363 psi

Diameter: 43.2cm / 432mm /17in

Height: 81.9cm / 819mm

Gross Weight: 40.6kg

Certifications

Warranty*

All Max™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
