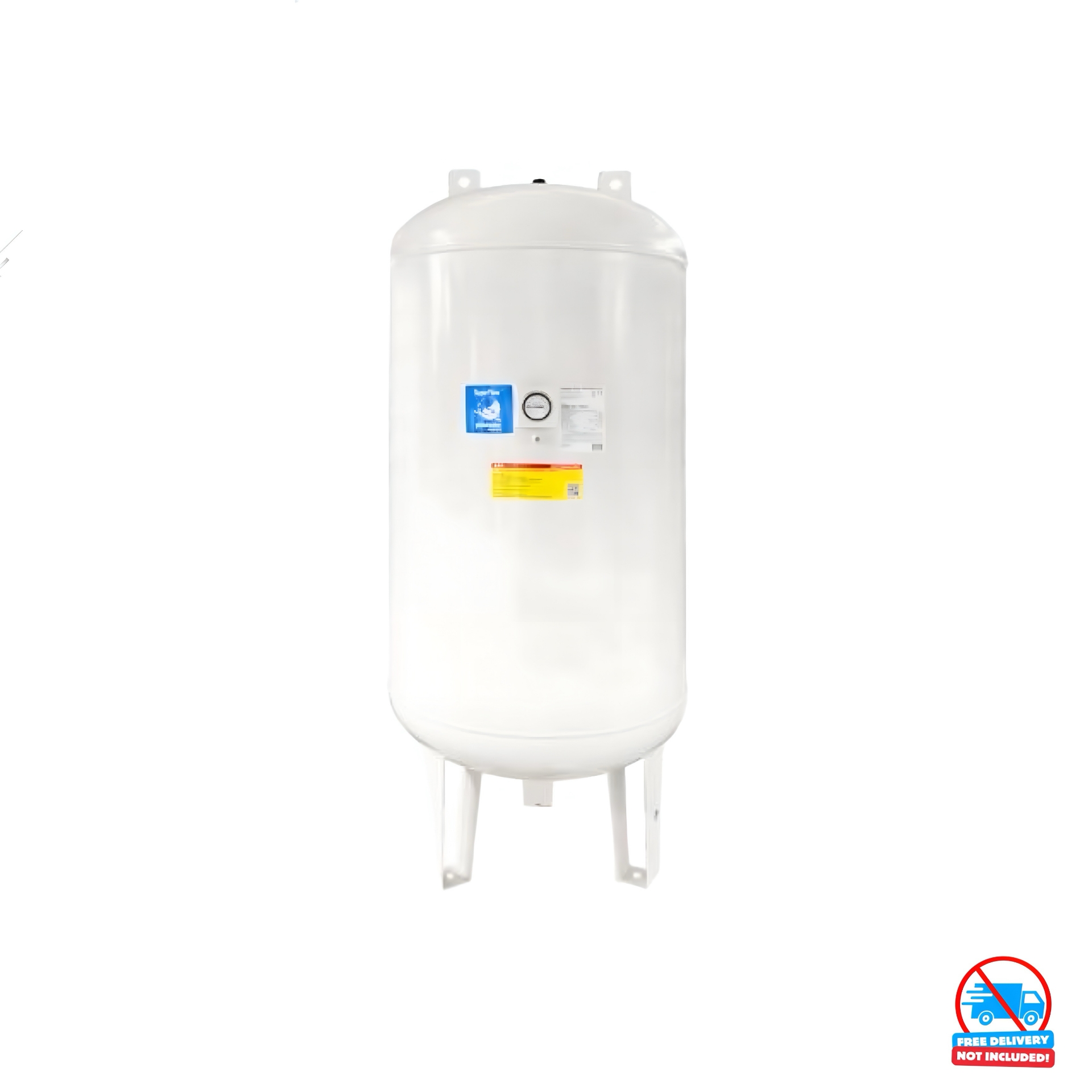

SuperFlow™ 750 Litre / 16bar Vertical Pressure Tank - SMB-INT-750LV-BTL

Please note that due to their size and weight, the SuperFlow™ range of Tanks are not covered by Free Shipping Promotion. Additional Shipping charges may apply

Tank Code: SMB-INT-750LV-BTL

Type of Pressure Tank: Vertical

Temp Max: 95°C / 203°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 750 Liter / 198.13 Gallon

Connection: 2" BSPT (M)

Color: Almond

Pressure Max: 16 bar / 232 psi

Height: 1862mm / 186.2cm

Diameter: 76cm / 760mm / 29.9 inch

Gross Weight: 187kg

Warranty* on Tank Body: 3-Years

Warranty* on Internal Bladder: 1-Years

Availability: In stock

R69 995,00

Qty:

i h

Overview
Contact Us

SuperFlow™ 750 Litre / 16bar Vertical Pressure Tank -SMB-INT-750LV-BTL

The SuperFlow™ Tank 750 liter / 198.13 gallon vertical model is engineered for demanding high-pressure environments, rated for up to 16 bar. Its replaceable membrane and durable carbon steel shell deliver dependable performance and ease of maintenance.

Designed to comply with EN13831:2007 standards, this tank features a corrosion-resistant Almond finish. Supporting pressures up to 16 bar / 232 psi, its 2" BSPT connection facilitates smooth integration into commercial systems like district heating and pressure booster networks.

High-rise buildings
Commercial applications
Water utility supplies
High volume applications
High-pressure applications
District heating water
circulation

Features & Benefits

Built-in pressure gauge
Patented stainless steel water connection
Lifting lugs for easy on-site movement
Replaceable membrane design
ISO9001, ISO14001, ISO45001 approved facility
Carbon steel shell
High-grade butyl membrane
High-quality, durable powder coat finish (3000L+: Two-part polyurethane, epoxy primed paint finish)

MODEL NUMBER: SMB-INT-750LV-BTL

Temp Max: 95°C / 203°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 750 Liter / 198.13 Gallon

Connection: 2" BSPT (M)

Color: Almond

Pressure Max: 16 bar / 232 psi

Diameter: 76 cm / 29.9 in

Height: 186.20 cm / 1862mm

Gross Weight: 187kg

Certifications

Warranty*

All SuperFlow™ Tanks come with a 3-year* warranty on the Tank, and a 1-year* Warranty on the Internal Baldder.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
