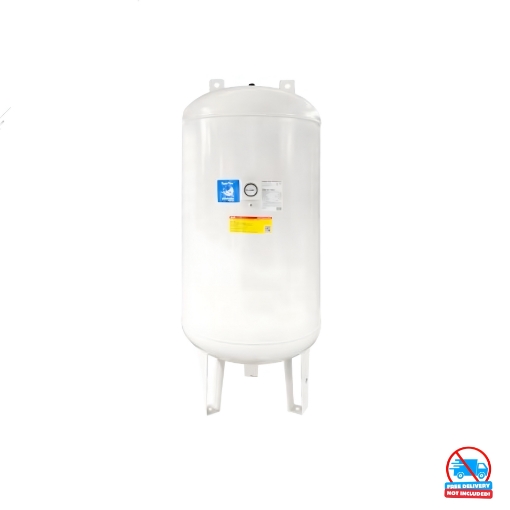

FilterShop.co.za Custom Water Systems | Reverse Osmosis | Water Filters. SuperFlow™ 300 Litre Vertical Pressure Tank

The SuperFlow™ Tank 300 liter / 79.25 gallon vertical model is ideal for high-pressure systems in commercial and residential settings. Its replaceable membrane design allows for easy maintenance, while the carbon steel shell provides structural integrity and durability.

Coated with a durable powder finish for corrosion resistance, this tank supports pressures up to 16 bar / 232 psi. Its 1¼" BSPT connection ensures compatibility with a wide range of applications, including district heating, high-rise building systems, and water utility supplies.

High-rise buildings
Commercial applications
Water utility supplies
High volume applications
High-pressure applications
District heating water circulation

Features & Benefits

Built-in pressure gauge
Patented stainless steel water connection
Lifting lugs for easy on-site movement
Replaceable membrane design
ISO9001, ISO14001, ISO45001 approved facility
Carbon steel shell
High-grade butyl membrane
High-quality, durable powder coat finish (3000L+: Two-part polyurethane, epoxy primed paint finish)

MODEL NUMBER: SMB-INT-300LV-T-BTL

Temp Max: 95°C / 203°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 300 Liter / 79.25 Gallon

Connection: 1.25" BSPT (M)

Color: Almond

Pressure Max: 16 bar / 232 psi

Diameter: 68 cm / 26.8 in

Height: 124 cm / 1240mm

Gross Weight: 65kg

Certifications

Warranty*

All SuperFlow™ Tanks come with a 3-year* warranty on the Tank, and a 1-year* Warranty on the Internal Baldder.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.

SuperFlow™ 300 Litre / 16bar Vertical Pressure Tank - SMB-INT-300LV-T-BTL
