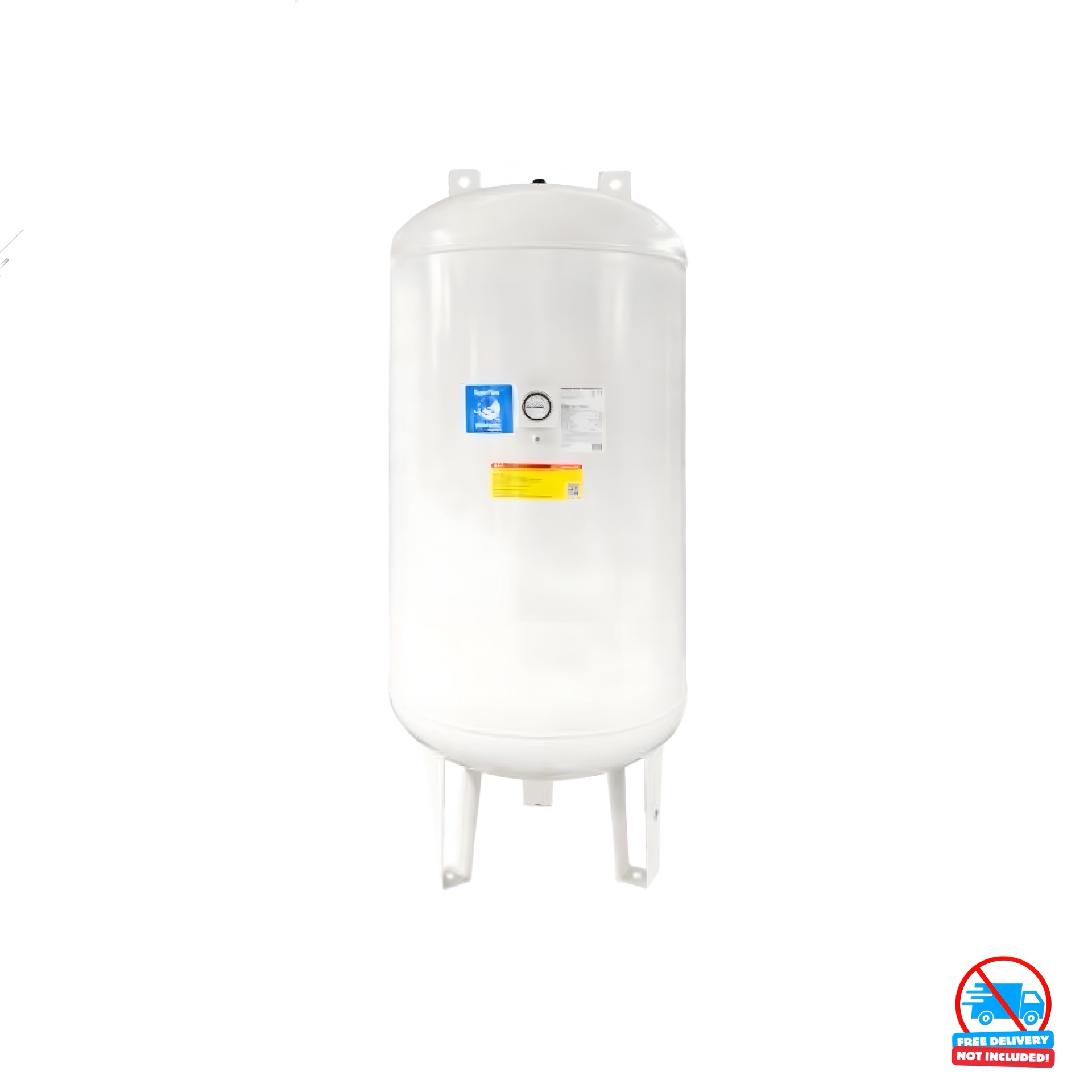

SuperFlow™ 1000 Litre / 10 bar Vertical Pressure Tank - SFB-INT-1000LV-BTL

Please note that due to their size and weight, the SuperFlow™ range of Tanks are not covered by Free Shipping Promotion. Additional Shipping charges may apply

Tank Code: SFB-INT-1000LV-BTL

Type of Pressure Tank: Vertical

Temp Max: 95°C / 203°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 1000 Liter / 264.17 Gallon

Connection: 2" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 2376mm / 237.6cm

Diameter: 80.6cm / 806mm / 31.7 inch

Gross Weight: 169kg

Warranty* on Tank Body: 3-Years

Warranty* on Internal Bladder: 1-Years

Availability: In stock

R79 995,00

Qty:

i h

Overview
Contact Us

SuperFlow™ 1000 Litre / 10bar Vertical Pressure Tank -SFB-INT-1000LV-BTL

The SuperFlow™ Tank 1000 liter / 264.17 gallon vertical model is designed for large-scale high-pressure applications. Its replaceable membrane ensures ease of maintenance, while its durable carbon steel shell and powder-coated finish provide long-lasting performance in demanding conditions.

Compliant with EN13831:2007 and the Pressure Equipment Directive 2014/68/EU, this tank supports pressures up to 10 bar / 150 psi. With a 2" BSPT connection, it integrates seamlessly into high-volume systems such as pressure booster setups, district heating circuits, and water utility networks.

High-rise buildings
Commercial applications
Water utility supplies
High volume applications
High-pressure applications
District heating water
circulation

Features & Benefits

Built-in pressure gauge
Patented stainless steel water connection
Lifting lugs for easy on-site movement
Replaceable membrane design
ISO9001, ISO14001, ISO45001 approved facility
Carbon steel shell
High-grade butyl membrane
High-quality, durable powder coat finish (3000L+: Two-part polyurethane, epoxy primed paint finish)

MODEL NUMBER: SFB-INT-1000LV-BTL

Temp Max: 95°C / 203°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 1000 Liter / 264.17 Gallon

Connection: 2" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Diameter: 80.6 cm / 31.7 in

Height: 237.6cm / 2376mm

Gross Weight: 169kg

Certifications

Warranty*

All SuperFlow™ Tanks come with a 3-year* warranty on the Tank, and a 1-year* Warranty on the Internal Baldder.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
