Softener Valve Head - F74A3 (10m3/h)

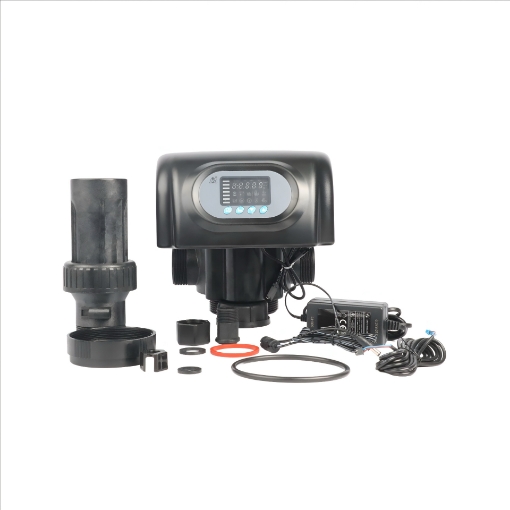

Runxin F74A3 Automatic Softener valve head for 4" FRP Vessels - 10m3/h

• The F74A3 Automatic Valve Head is designed to be used with water softener systems for removing hardness (lime/calcium/magnesium/kalk) from water.

• The F74A3 Valve head uses a digital control and timer to automatically go through the various stages of a water softener's regeneration cycle.


• The F74A3 Valve head is very easy to program and operate. The F63B1 Valve Head allows you to set the regeneration cycle to take place after a set number of days, and at a particular time of day.

• The F74A3 Valve head comes with a built-in capacitor, which helps save the valve head's settings for approximately 3 days in the event of a power failure. If there is no power for longer than this, then the valve head will revert to the factory settings.

Specifications:

• Inlet Port: 2" Male / Common Name: 50mm Male  / Actual Size 59.1mm Male
• Outlet Port: 2" Male  / Common Name: 50mm Male  / Actual Size 59.1mm Male
• Drain Port: 1/2" Male  / Common Name: 15mm Male  / Actual Size 21.6mm Male
• Power: 24v DC includes transformer for 220v
• Base Thread: 4" / 10.16cm
• Maximum Flow Rate: 10,000 Litres Per Hour (LPH)
