Runxin Wireless Auto-Shutoff Valve Leak Detector System

Runxin Wireless Auto-Shutoff Valve – Smart Leak Prevention System

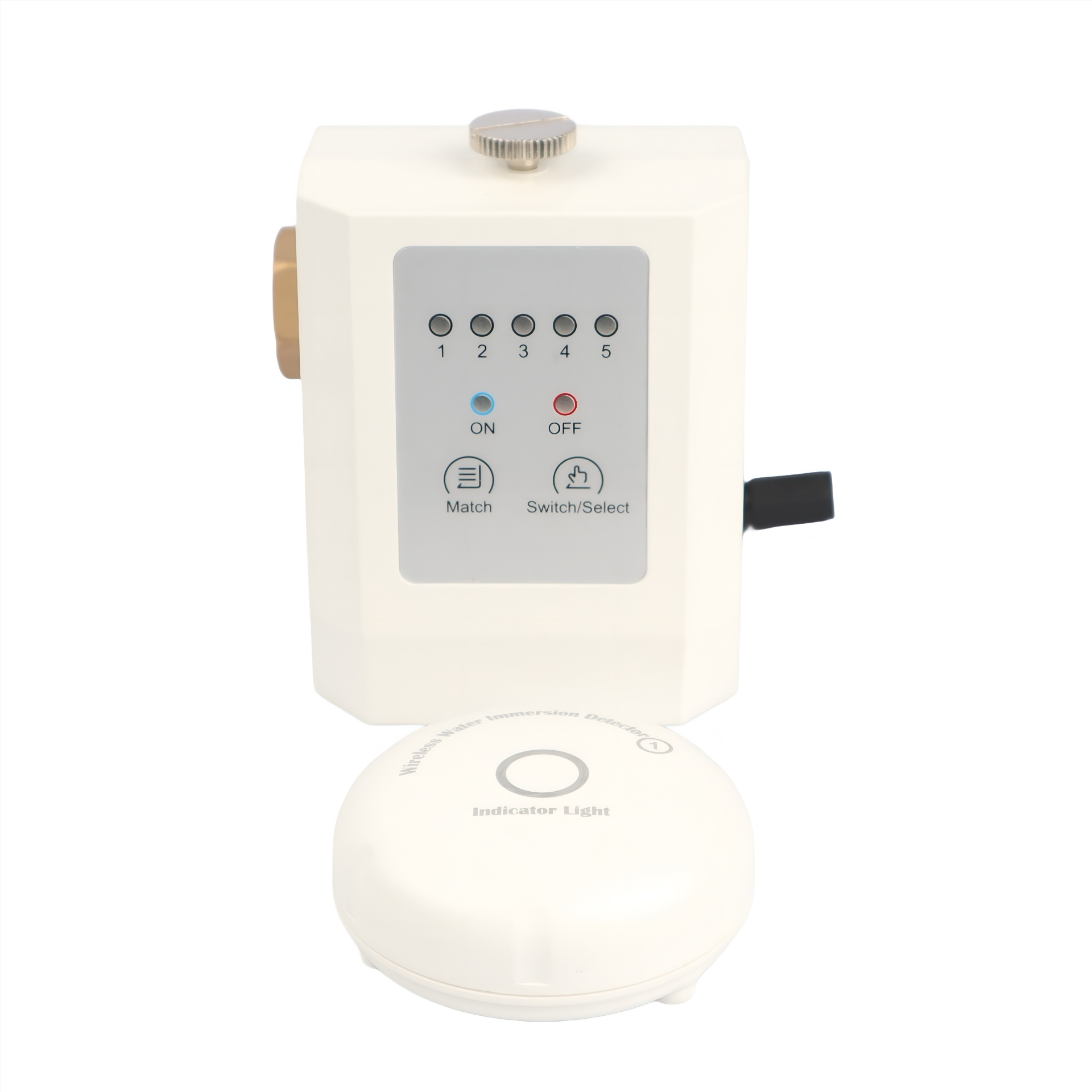

The Runxin Wireless Auto-Shutoff Valve is a smart, self-contained solution designed to instantly stop water flow in the event of a leak, protecting homes, businesses, and equipment from water damage. Featuring a built-in wireless controller and durable ceramic-sealed electronic ball valve, the F104H responds to signals from up to five wireless water immersion detectors (F104F) placed throughout your space.

With a built-in rechargeable lithium battery for power outages, wireless activation, and robust brass construction, the Runxin Wireless Auto-Shutoff Valve is ideal for automated water control in high-risk areas like geysers, kitchens, and filtration systems.

When the F104F Sensor comes in contact with water, it'll send a signal to the Leak Detecting system, which will then trigger the valve, turning the ceramic ball valve inside and shutting off the water supply. Shutting off the water supply will help to prevent further leakingage, and help to prevent additional damage and/or water wastage.No water coming from the main supply, will also act as a signal that there has been a leak somewhere, where one of the water immersion sensors has been placed.

The Runxin Smart Leak detecting system can wirelessly "link up" with a maximum of five F104F Sensors.

Key Features:

• Main Control Valve (F104H):

  • Advanced ceramic-core electronic ball valve ensures reliable shut-off and low flow resistance.

  • Integrated wireless receiver communicates with up to 5 F104F sensors.

  • Instant shut-off when a leak is detected—no manual input needed.

  • Built-in lithium battery offers 24-hour standby during power failures.

  • Compact design with clear indicator lights for operational status.

• Wireless & Flexible Setup:

  • No wiring between sensors and valve.

  • Supports flexible placement of sensors in leak-prone areas.

• Easy Reset & Reopen:

  • After addressing the leak, simply press and hold the valve’s button to reopen.



Technical Specifications - F104H Wireless Auto Shut-Off Valve:

• Valve Type: Motorized ceramic-sealed ball valve

• Connection Size: G3/4"

• Power Source: DC12V

• Battery: 2500mAh / 7.4V Rechargeable Lithium Battery

• Operating Temperature: 5°C – 50°C

• Max Wireless Sensor Support: 5 F104F units

• Material: Corrosion-resistant brass and ABS housing

• Dimensions: L: 86.7mm | H: 100.2mm | S: 29mm



F104F Water Immersion Sensor Specifications:

• Triggers shut-off when in contact with water

• Compact, battery-powered (12V/23A)

• Low power consumption (battery life: up to 420 days)

• LED indicator and audible alert

• Recommended to place in low-lying areas: under sinks, near geysers, behind toilets, etc.

• Maximum range from valve: 20 meters (line of sight)



Applications:

• Domestic plumbing systems

• Under-counter filters and geysers

• Commercial restrooms and kitchens

• Server rooms, pump rooms, or anywhere water leaks pose risk



Maintenance Recommendations:

• Test monthly by triggering a sensor to ensure the F104H shuts off properly

• Clean and dry F104F sensors after leak events

• Replace sensor batteries annually or when low-battery indicator flashes

• Charge or replace F104H internal battery every 2 years

• Avoid installing in metal enclosures or behind thick walls that block wireless signals
