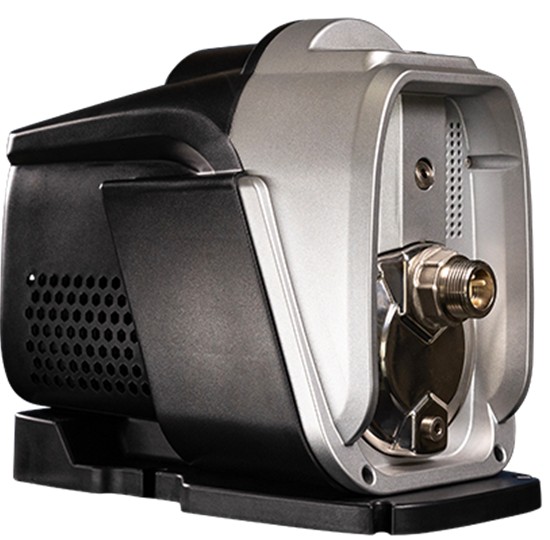

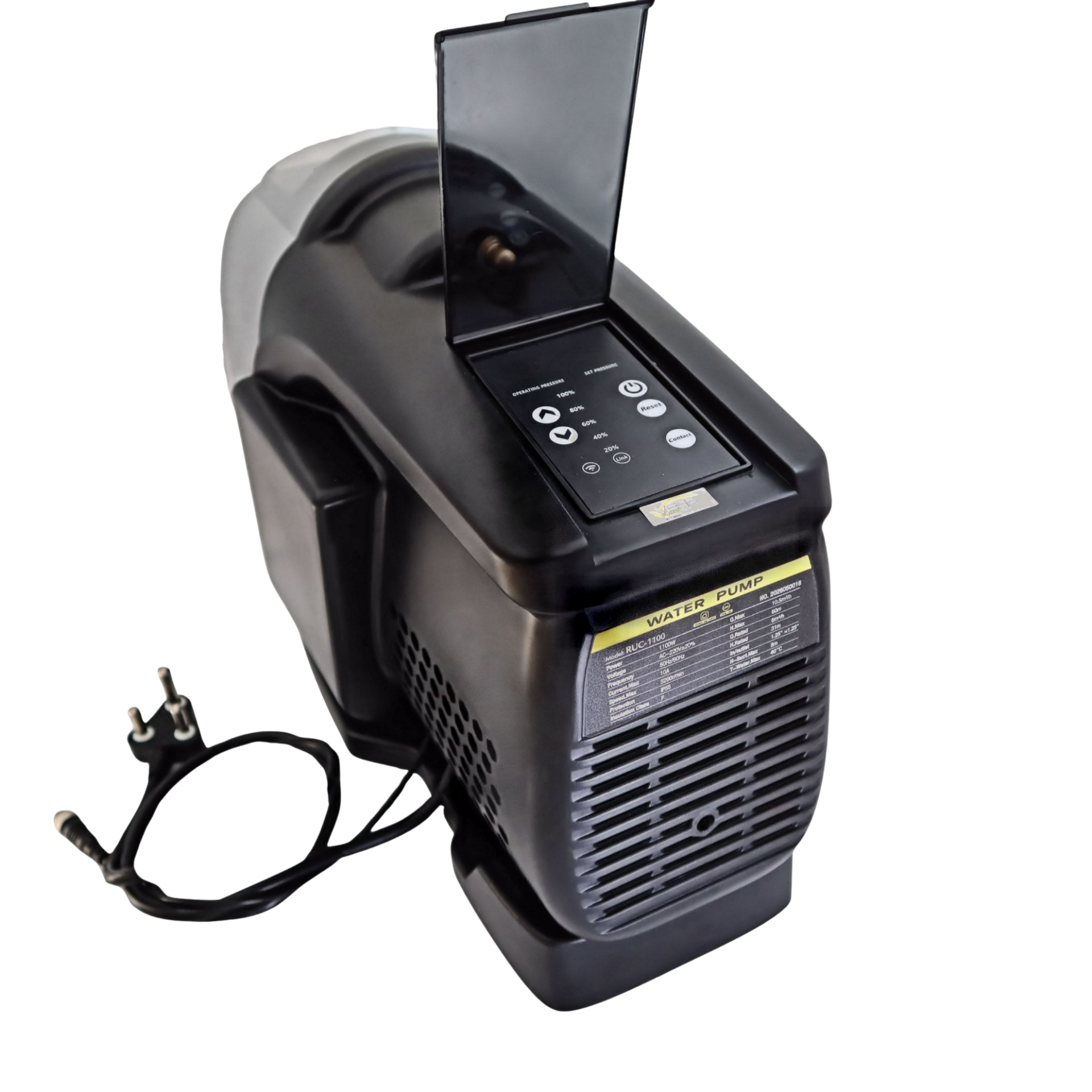

RUC-1100 - 1.1kw Smart VSD Booster Pump

The RUC-1100 is a highly efficient, smart Variable Speed Drive (VSD) booster pump designed for constant water pressure management. It is popular in residential, light commercial, and small irrigation setups because it dynamically adjusts its motor speed to match real-time water demand.

Reliable, efficient, and corrosion-resistant, the Permanent Magnet Variable Frequency Pump sets the standard for excellence in fluid transfer technology, providing you with peace of mind and unmatched performance for your pumping requirements.

Smart App & WiFi Integration: It connects natively to the Smart Life App (via 2.4GHz WiFi). This allows you to monitor live system pressure, water temperature, and power usage and adjust your target pressure limits directly from your smartphone.

Solar & Inverter Friendly: It features soft-start/stop technology, meaning it gradually draws power when turning on. This eliminates the massive, sudden power surges that trip back-up inverters or battery storage systems.

Pump Link Mode (Twin Pump Cascade): If your property grows or demand increases, you can link two RUC units together. The primary pump handles standard duties, and the second pump kicks in only if the demand exceeds the first one's capacity. They also alternate start-ups to ensure even wear on the hardware.

RUC-1100 Advantages

Consistent water pressure and a steady flow regardless of demand
Adaptability to demand that leads to reduced energy consumption
Compatible with the Smart Life App, allows monitoring of the pump via mobile phone (*Wifi required)
Pump Link Mode allows a second pump to be added in Series for when the demand requirements increase.
Smoother stop-and-start operation eliminates water hammer and shock in pipes
Ideal for Solar Systems due to soft start
A permanently magnetized motor paired with a VSD ensures high performance at reduced energy consumption

Features

Auto Start / Stop
Pressure Transducer
Constant Pressure Control
PCB Sealed (Potting Compound)
Dry - Run Protection
Over-Current Protection
Over / Under Voltage Protection
Stall Protection
Phas Loss Protection
Driver Board Overheat Protection
High / Low Water Temp Protection
Pipeline Leak Warning

Common Applications

Domestic Water Boosting: Fixing weak shower and tap pressure across single or multi-story homes.
Rainwater & Tank Storage Systems: Pumping clean water from back-up storage tanks into the home or garden.
Light Irrigation: Providing a steady flow for small lawn sprinklers or drip-irrigation setups.

Specifications

Model: RUC-1100
Power: 1.1 kW
Voltage (V): 220 - 240V
Rated Flow: 6m³/h*
Rated Head: 31m*
Max Flow: 10.5m³/h*
Max Head: 60m*
Inlet and Outlet: 32mm
Max Suction: 8m

*Please note that these ratings are all manufacturer ratings, with testing done in optimum conditions. In "real-world" applications and situations, these performances may differ.

Warranty*:

The Smart VSD Series Pumps come with a 1-year* Warranty.

*Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the max operating parameters for the product are exceeded.

**The warranty also does not cover damage caused by electrical surges or Lightening Strikes. It is recommended that a surge protector is installed to help protect the pump.
