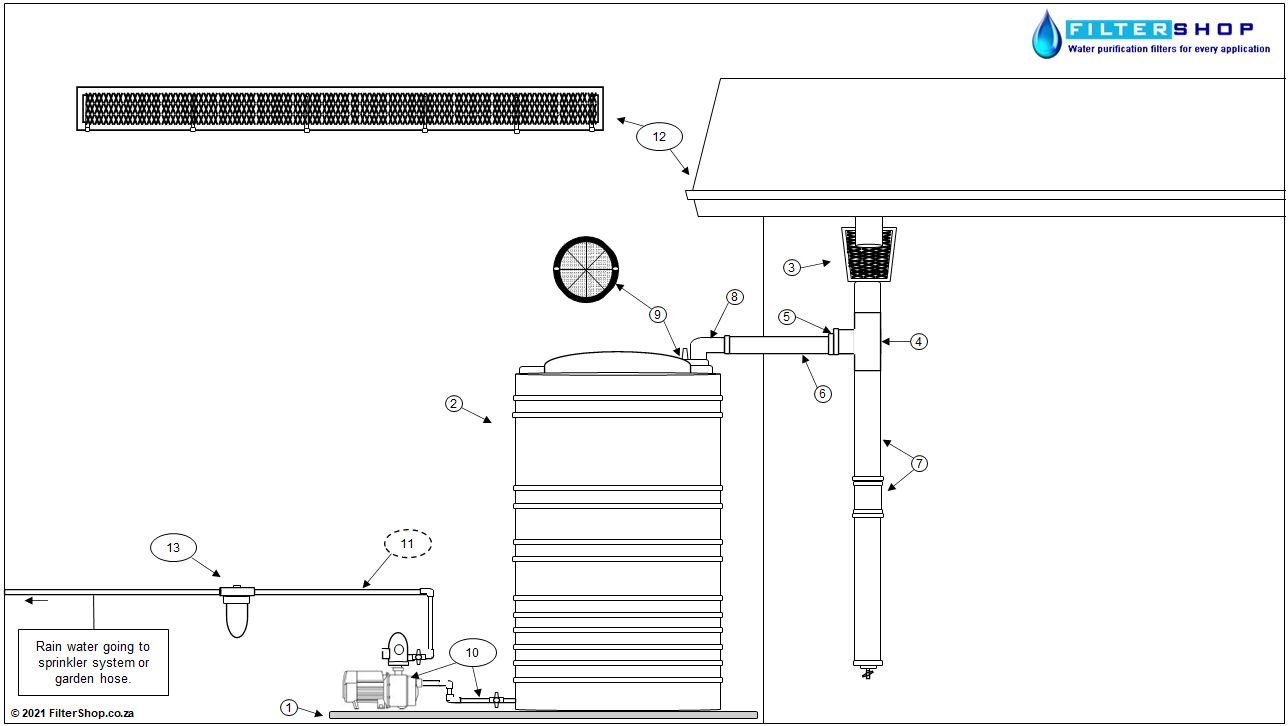

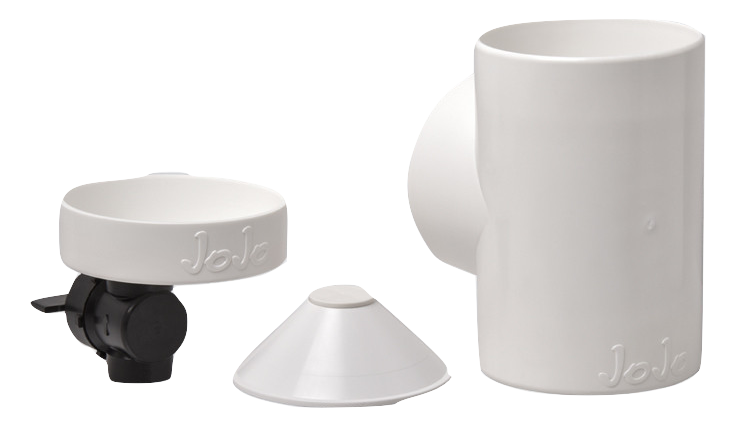

4. First Flush Diverter: The First Flush Diverter allows the first initial rain off the roof to go to the drain, taking most of the dust and bird droppings from the roof with it. This helps prevent them from gathering in your storage tank and potentially causing nitrate build-up inside the storage tank.
5. 110mm to 80/75mm Adapter Fitting
6. 1 Metre length of 75mm PVC Piping
7. 2 x 1 Metre lengths of 110mm PVC Piping and 1 x 110mm Double Socket.

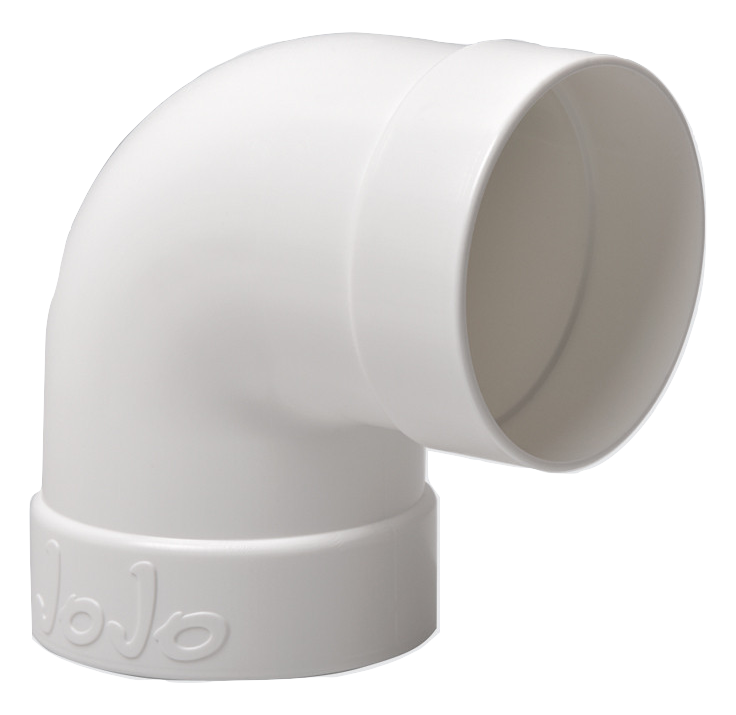

8. 90 Degree 75/80mm Elbow.

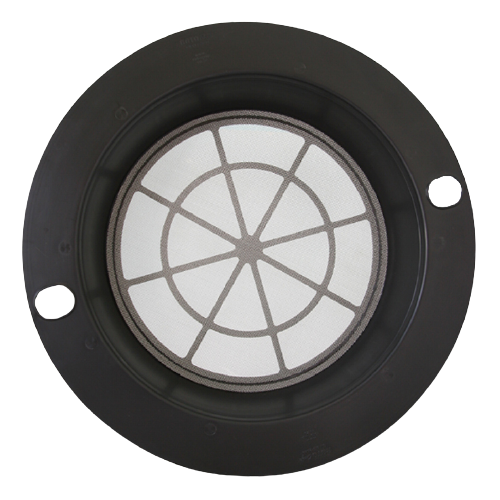

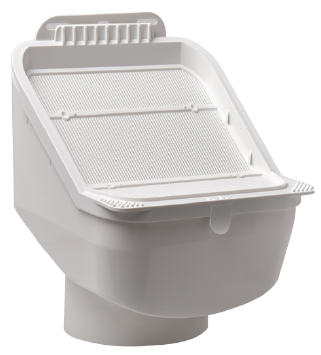

9. 480mm Filter Tank Mesh: Captures finer particles that may get through the Rainhead's mesh, it also allows the tank to capture additional rainwater that falls directly onto the tank.

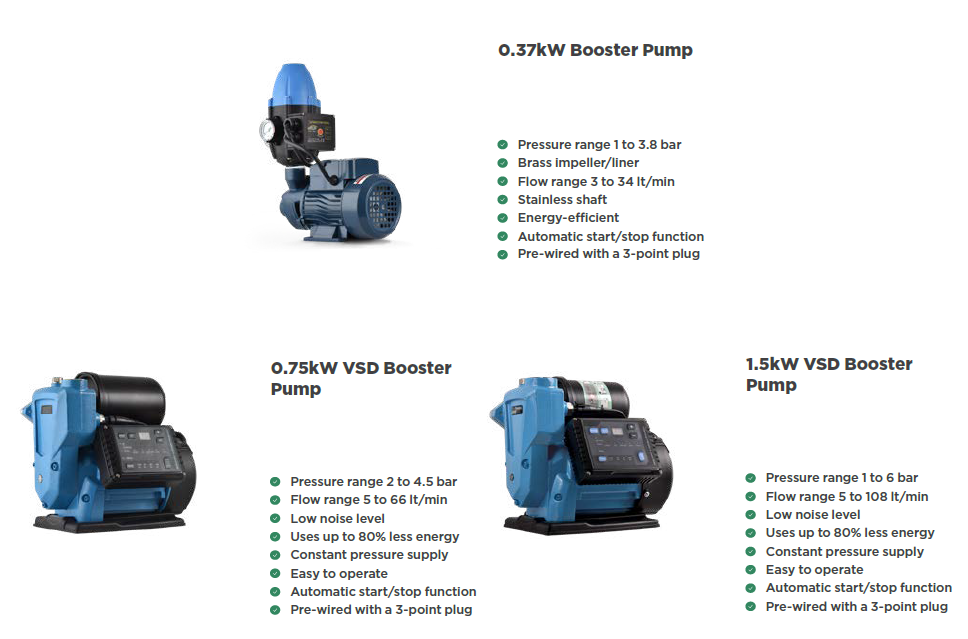

10. Booster Pump and Connector Kit (Optional): A pressure pump for pushing water from the water storage tank to the irrigation system or garden hose. Keep in mind that you will require an electrical point available to power the pump. This pump can be supplied by Filtyershop, or alternatively, you can source your own booster pump. Filtershop has three main Booster Pump Options.
11. Please Note that piping and fittings from the storage tank to the irrigation system/garden hose are not supplied by Filtershop. This will need to be sourced and supplied by the installer on site.

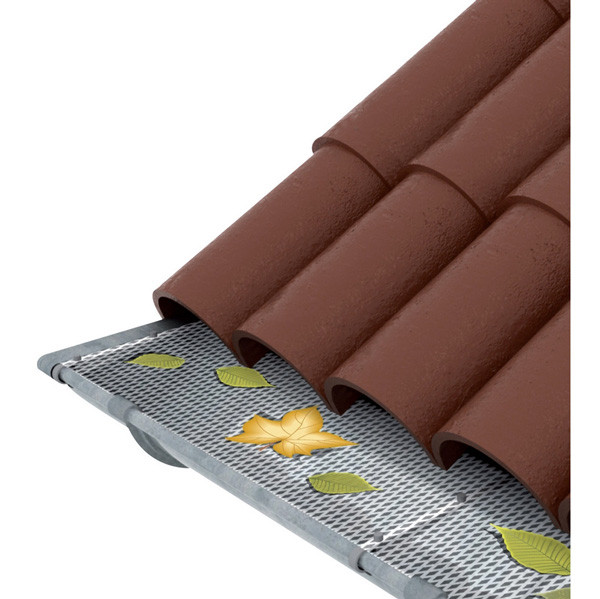

12. Gutter Mesh (Optional): The gutter mesh helps to cover your gutters, preventing them from becoming blocked up with leaves and other debris. The gutter mesh is available in lengths of 5.5m and is 160mm wide. Be sure to check your gutters are not too wide for the mesh.

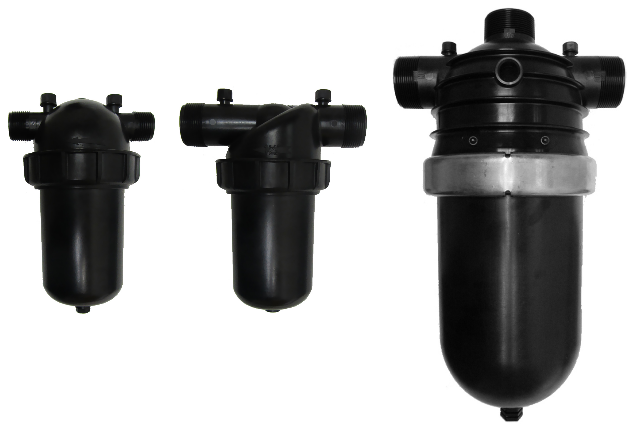

13. Arkal Disc Filter (Optional): Adding an Arkal disc filter after the pressure pump, will help to remove finer sediment and dirt from the water. Especially recommended, if you are connecting the setup to a sprinkler system, as the finer particles could lead to blockage of the sprinkler heads. The Arkal disc filters are cleanable units and do not require replacement cartridges.
Optional Add-ons
Water Tank Float Kit
This kit allows for the effortless filling of a water tank with an automatic shut-off, this means that during dry seasons you can keep your water tank topped up using an alternative source, such as municipal or borehole water.
Whether you prefer to manually fill your tank using a hose, or a more permanent solution that involves connecting it to your plumbing line, this kit contains all the accessories required to do so.
Product Benefits:
- All accessories included
- Allows for effortless filling of a JoJo water tank
- Automatically shuts off when the tank is full
- Easy to fit
- Great quality
- Suitable for use with our vertical and slimline water tanks
Tank Level Gauge
MONITORING YOUR RAINWATER IS MADE EASY!
The Rain Harvesting Tank Gauge is a rainwater tank level indicator that ensures you are able to tell how much water is in your tank at a glance.
FEATURES & BENEFITS
• Quick and easy to install - simple DIY product
• Seals directly to the tank
• Suitable for all existing and new tanks
• No batteries or wiring required
• Easy to read dial face with ‘Empty’ and ‘Full’ indicators
• Empty and Full indicators allow for a more meaningful measurement than a numbered dial (due to different rainwater tank widths and styles)
•Requires a standard 32mm hole saw
• Low maintenance requirements
• UV resistant
• Suitable for all vented tanks up to 2.5 meters (100 inches) in height
• Able to be securely installed on a wide variety of tank shapes (dome-topped, flat, peaked)
• Utilizes a reliable float system

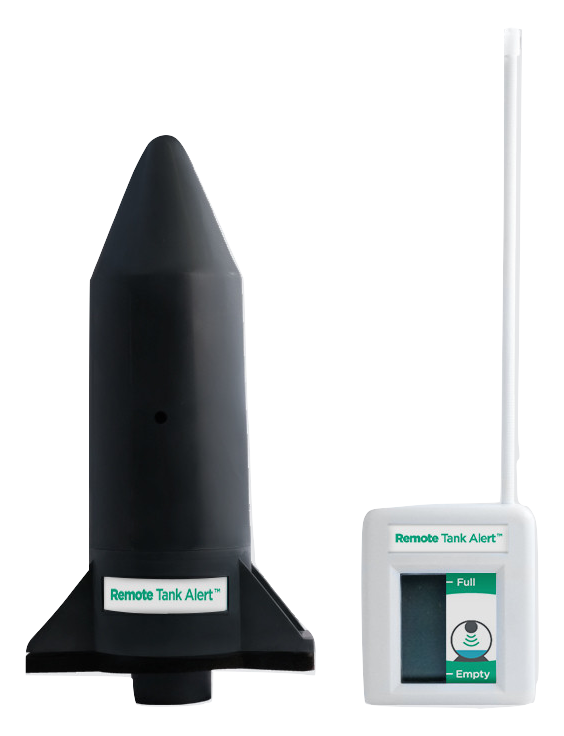

Remote Tank Alert
JoJo’s ultrasonic liquid sensor provides an accurate and reliable liquid level measurement. One of the most important accessories for your JoJo water tank is a device to monitor your water level. That is exactly what the consumer-friendly JoJo Tank Alert does! This wireless monitor contains an electronic gauge that accurately and reliably measures the water level in your tank and transmits the information to a receiver located in your home. Communication distance to the receiver is typically greater than 200m and measurement resolution is down to 1 cm.
_burned (1).png)
BENEFITS
• Monitor tank levels from the comfort of your own home
• Easy to install
• The measurement resolution of 1cm
• Communication distance to receiver typically greater than 200m (150 ft USA variant)
• Mains powered receivers with display available with EU, UK, USA, AUS/NZ plug formats
• RMS Compatible for longer distances (PTSN & GSM Modems)
• CE Conformance and ROHS Compliant
• Long-lasting battery
• Minimum 1-year warranty

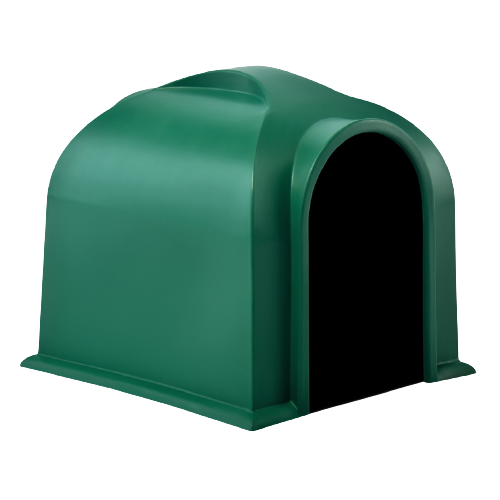

Pump Cover
Specifically designed to accommodate our entire range of Booster Pumps, this cover is manufactured from the same high-grade material as our tanks, ensuring that your pump is protected against all weather conditions.
Lead time is 7 to 14 working days from when the order is received.
Product Benefits:
- Extends the lifespan of your Booster Pump
- Ideal for use with all JoJo Booster Pumps
- Made with the best quality LLDPE
- UV-resistant
- Corrosion-resistant
- Reduces noise
- 10-year guarantee
- Available in a wide range of colours to match the colour of your tank or home
