    Rainwater Harvesting Kit for Household Use

    Manufacturer: JoJo
    *
    *
    *
    *
    R8 425,00
    i h

    Rainwater Harvesting Kit For Household uses



    The base Rainwater harvesting kit is designed for those that want to collect rainwater for household usage such as irrigation, cleaning, washing, flushing toilets, etc.

    However, if you wish to make the rainwater drinkable, you will need to add an under-the-counter RO system to address the remaining bacteria and nitrates present in the water. Adding germicidal UV lights, either inline or in-tank, will also help to enaure that the bacteria counts levels remain as low as possible.



    Included in the bundle:

    • 1 x Rainhead Filter
    • 1 x First Flush Diverter
    • 1 x 480mm Tank Filter Mesh
    • 2 x 1 Meter Length of 110mm PVC Pipe
    • 1 x 110mm PVC DBL Socket Fitting
    • 1 x 1 Meter Length of 75mm PVC Pipe
    • 1 x 90 degree Elbow adapter 80 / 75mm
    • 1 x 110mm to 75/80mm PVC Adapter
    • 1 x 75mm & 2 x 110mm Holderbats
    • 1 x PVC Pipe Cleaner and 1 x PVC Solvent Glue
    • 1 x Triple Big Blue Filter system with 1um, 0.1um, and Siliphos cartridges


    Optional:

    • Booster Pump with a pump to tank connection kit
    • Water Storage tank (750 to 2500 Liters available only), for larger tanks we recommend sourcing them from your nearest plumbing supplier.
    • Arkal Disc Filter
    • Inline Stainless Steel Ultra Violet Light (40w / 2700 Litres Per Hour)
    • In-Tank Germicidal UV Light
    • Silver Reverse Osmosis System (for Drinking Purposes)


    Not Included:

    • Piping and Fittings from your tank to the Irrigation system
    • Materials for a Base/Plinth for the Storage tank

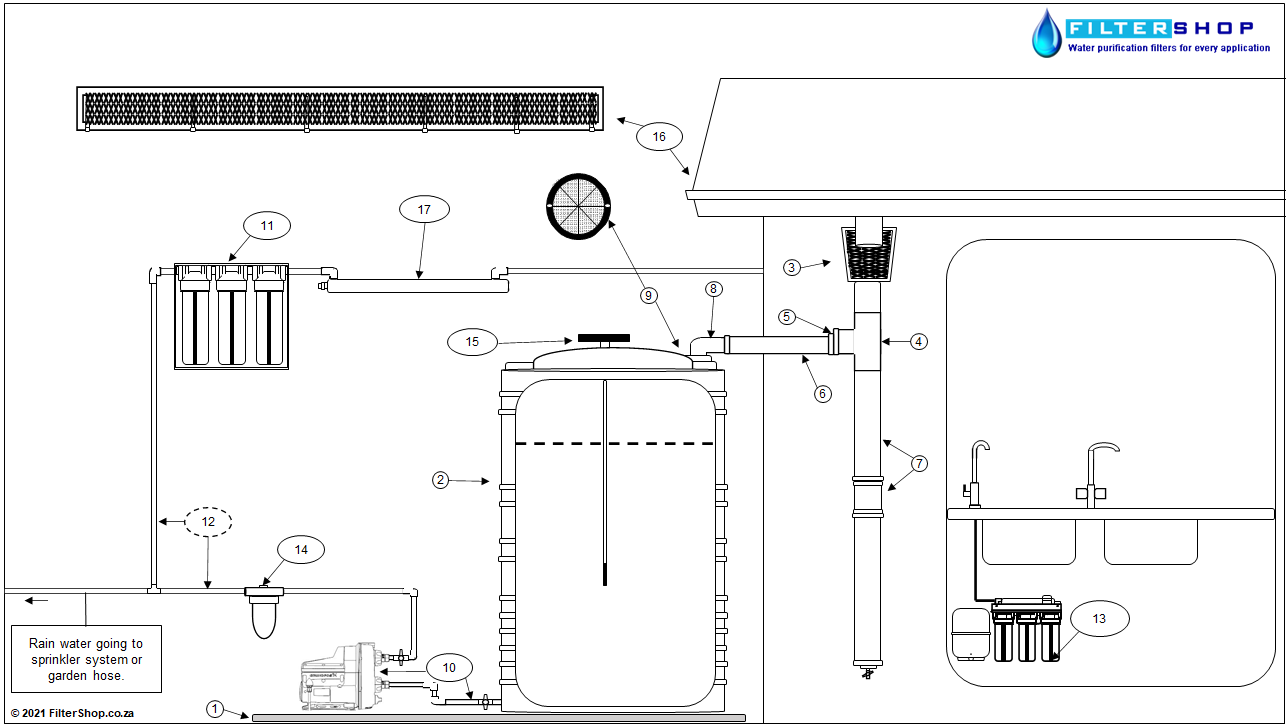

    Rainwater Harvesting setup for Household purposes:



    1. Base/Plinth: Tanks must be installed on a sound, level, and smooth surface. Level paving will suffice, alternatively, a concrete plinth needs to be built, ideally with a concrete surface bed of at least 85mm thick. Note: the base should always be at least 100mm wider than the diameter of the tank. Filtershop does not offer this service, however, a good quality builder should be able to put it in place without too much difficulty.


    2. Water Storage Tank: A storage tank is not included in the Bundle. FilterShop can source a water storage tank for you on request, however, we would rather recommend sourcing the storage tank from your local plumbing, irrigation, or hardware wholesaler. This will make logistics easier and more cost-effective for you, especially if the installation site is in an outlying/rural area.

    3. Leaf Catcher Pre-Filter (also called a Rainhead Filter): Has a slopped mesh screen that will capture large leaves, and sticks, that may come off the roof and out of the gutters. Preventing them from getting into the tank.
    4. First Flush Diverter: The First Flush Diverter allows the first initial rain off the roof to go to the drain, taking most of the dust and bird droppings from the roof with it. This helps prevent them from gathering in your storage tank and potentially causing nitrate build-up inside the storage tank.
    5. 110mm to 80/75mm Adapter Fitting
    6. 1 Metre length of 75mm PVC Piping
    7. 2 x 1 Metre lengths of 110mm PVC Piping and 1 x 110mm Double Socket.
    8. 90 Degree 75/80mm Elbow.
    9. 480mm Filter Tank Mesh: Captures finer particles that may get through the Rainhead's mesh, it also allows the tank to capture additional rainwater that falls directly onto the tank.
    10. Variable Speed Drive (VSD) Booster Pump and Connector Kit (Optional): A pressure pump for pushing water from the water storage tank to the irrigation system or garden hose. Keep in mind that you will require an electrical point available to power the pump. This pump can be supplied by Filtyershop, or alternatively, you can source your own booster pump. Filtershop has three main Booster Pump Options.

    11. Triple Big Blue System (1um, 0.1um, & Siliphos Cartridge): The 1 Micron Cartridge will remove the fine dirt and color from the water. The 0.1um Pleated Filter will capture organisms and bacteria from the water. The final stage is a Siliphos cartridge, one potential problem with using rainwater for household usage is that because it does not have any mineral content (or buffers) present, the water can become “corrosive”. This can be a problem for households with galvanized or copper piping and/or fittings, as the water can cause them to corrode. The Big Blue Housing contains Siliphos, which will dissolve and coat the inside of the pipes helping to prevent corrosion from occurring.
    12. Please Note that the piping and fittings from the storage tank to the irrigation system/garden hose are not supplied by Filtershop. This will need to be sourced and supplied by the installer on site.

    13. Silver Under the Counter RO System for Drinking water (Optional): The two biggest concerns for rainwater when it comes to drinking are bacterial content, and high nitrate levels (caused by bird droppings). High Nitrate content can be especially dangerous for small children, as it can cause a condition known as “blue baby” syndrome. The most effective method we have available to remove nitrates from drinking water is Reverse Osmosis (RO). You can find more information on the Silver Under the Counter RO System at the following link

    14. Arkal Disc Filter (Optional): Adding an Arkal disc filter after the pressure pump, will help to remove finer sediment and dirt from the water. Especially recommended, if you are connecting the setup to a sprinkler system, as the finer particles could lead to blockage of the sprinkler heads. The Arkal disc filters are cleanable units and do not require replacement cartridges.


    15. In-Tank Germicidal UV Light (Optional): The UV light helps to neutralize and prevent the growth of bacteria inside of the storage tank. Please Note that the germicidal light will require an electrical source to operate.


    16. Gutter Mesh (Optional): The gutter mesh helps to cover your gutters, preventing them from becoming blocked up with leaves and other debris. The gutter mesh is available in lengths of 5.5m and is 160mm wide. Be sure to check your gutters are not too wide for the mesh.

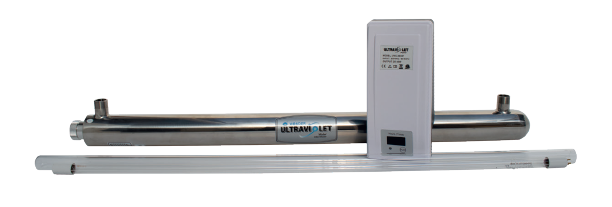

    17. Inline Stainless Steel Ultra Violet (UV) Light 40w / 2700LPH (Optional): The S/S UV Light would be installed after the Big Blue System and would help to further neutralize bacterial content in the rainwater before it enters the household.



    Optional Add-ons

    Water Tank Float Kit

    This kit allows for the effortless filling of a water tank with an automatic shut-off, this means that during dry seasons you can keep your water tank topped up using an alternative source, such as municipal or borehole water.

    Whether you prefer to manually fill your tank using a hose, or a more permanent solution that involves connecting it to your plumbing line, this kit contains all the accessories required to do so.

    Product Benefits:

    • All accessories included
    • Allows for effortless filling of a JoJo water tank
    • Automatically shuts off when the tank is full
    • Easy to fit
    • Great quality
    • Suitable for use with our vertical and slimline water tanks



    Tank Level Gauge

    MONITORING YOUR RAINWATER IS MADE EASY!

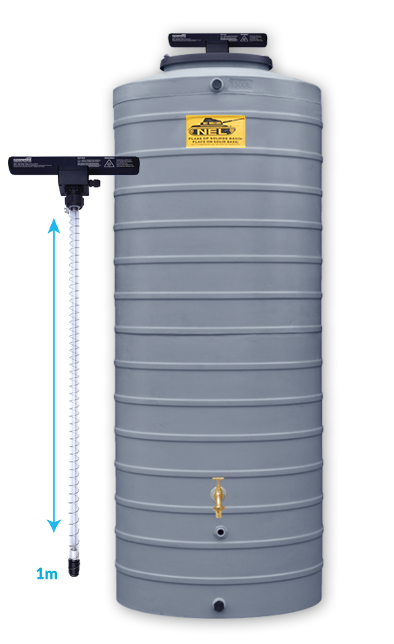

    The Rain Harvesting Tank Gauge is a rainwater tank level indicator that ensures you are able to tell how much water is in your tank at a glance.



    FEATURES & BENEFITS

    • Quick and easy to install - simple DIY product

    • Seals directly to the tank

    • Suitable for all existing and new tanks

    • No batteries or wiring required

    • Easy to read dial face with ‘Empty’ and ‘Full’ indicators

    • Empty and Full indicators allow for a more meaningful measurement than a numbered dial (due to different rainwater tank widths and styles)

    •Requires a standard 32mm hole saw

    • Low maintenance requirements

    • UV resistant

    • Suitable for all vented tanks up to 2.5 meters (100 inches) in height

    • Able to be securely installed on a wide variety of tank shapes (dome-topped, flat, peaked)

    • Utilizes a reliable float system


    Remote Tank Alert

    JoJo’s ultrasonic liquid sensor provides an accurate and reliable liquid level measurement. One of the most important accessories for your JoJo water tank is a device to monitor your water level. That is exactly what the consumer-friendly JoJo Tank Alert does! This wireless monitor contains an electronic gauge that accurately and reliably measures the water level in your tank and transmits the information to a receiver located in your home. Communication distance to the receiver is typically greater than 200m and measurement resolution is down to 1 cm.



    BENEFITS

    • Monitor tank levels from the comfort of your own home

    • Easy to install

    • The measurement resolution of 1cm

    • Communication distance to receiver typically greater than 200m (150 ft USA variant)

    • Mains powered receivers with display available with EU, UK, USA, AUS/NZ plug formats

    • RMS Compatible for longer distances (PTSN & GSM Modems)

    • CE Conformance and ROHS Compliant

    • Long-lasting battery

    • Minimum 1-year warranty



    Pump Cover

    Specifically designed to accommodate our entire range of Booster Pumps, this cover is manufactured from the same high-grade material as our tanks, ensuring that your pump is protected against all weather conditions.

    Lead time is 7 to 14 working days from when the order is received.



    Product Benefits:

    • Extends the lifespan of your Booster Pump
    • Ideal for use with all JoJo Booster Pumps
    • Made with the best quality LLDPE
    • UV-resistant
    • Corrosion-resistant
    • Reduces noise
    • 10-year guarantee
    • Available in a wide range of colours to match the colour of your tank or home

    *
    *
    *
