1/4" and 3/8" T-joints and Y-Joints

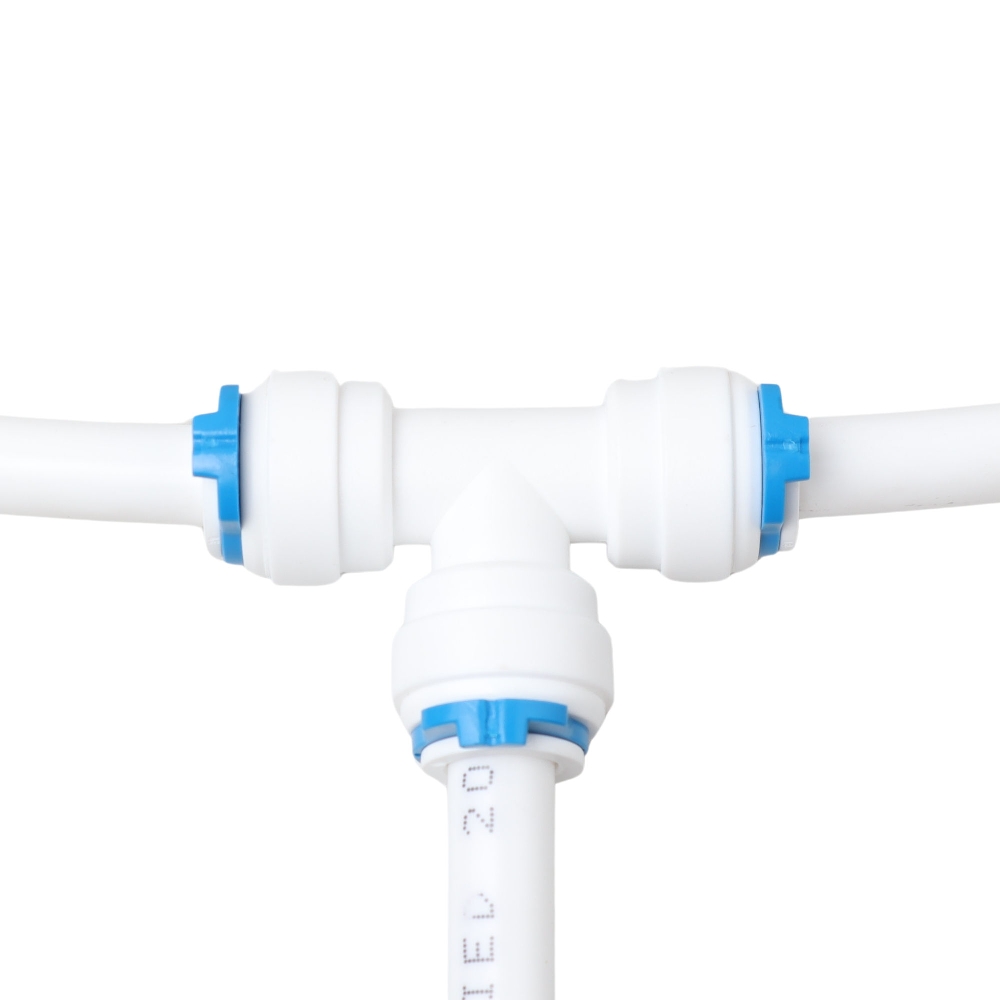

1/4" (6mm) T - Joint (3 pipe connector) - Quick Fit Type

This fitting is used when you want to "T-off" a 1/4" piping so that the water flow goes to two different endpoints, for example, one side could go to one outlet tap, while the second pipe leaving the T-joint goes to a second outlet tap at a completely different point. Another example is in the case of Domestic RO systems, the one pipe with go to the RO outlet tap, while the other pipe will go to a buffer tank.

1/4" (6mm) Y - Joint (3 pipe connector) - Quick Fit Type

This fitting is used when you want to "split" a 1/4" piping into two separate pipes running in an almost "parallel" direction, so that the water flow goes to two different endpoints, for example, one side could go to one outlet tap, while the second pipe leaving goes to a second outlet tap at a completely different point.

1/4" (6mm) T - Joint (1/4" Bottom Male Thread) Quick Fit Type

This t-joint has two quick-fitting sides for 1/4" piping, and one 1/4" male Thread located on the "bottom" of the T fitting. This fitting is normally used when you want the product (or filtered) water coming out of a housing (with a filter inside) or inline filter (such as a T33 or inline refillable shell), to then "t-off" to two separate "end" points. For example, you want product water from a DI filter to go to both a tap for filling containers, as well as an aquarium, for topping up its water.

1/4" (6mm) T - Joint (1/4" Side Male Thread) Quick Fit Type

This t-joint has two quick-fittings for 1/4" piping one on the side and one on the "bottom" of the T fitting, it also has one 1/4" male Thread located on the one "side". This fitting is normally used when you want the product (or filtered) water coming out of a housing (with a filter inside) or inline filter (such as a T33 or inline refillable shell), to then "t-off" to two separate "end" points. For example, you want product water from a DI filter to go to both a tap for filling containers, as well as an aquarium, for topping up its water.

3/8" (10mm) T - Joint (3 pipe connector) Quick Fit Type

This fitting is used when you want to "T-off" a 3/8" piping so that the water flow goes to two different endpoints, for example, one side could go to one outlet tap, while the second pipe leaving the T-joint goes to a second outlet tap at a completely different point. Another example is in the case of Domestic RO systems, the one pipe with go to the RO outlet tap, while the other pipe will go to a buffer tank.

3/8" (10mm) Y - Joint (3 pipe connector) Quick Fit Type

This fitting is used when you want to "split" a 3/8" piping into two separate pipes running in an almost "parallel" direction, so that the water flow goes to two different endpoints, for example, one side could go to one outlet tap, while the second pipe leaving goes to a second outlet tap at a completely different point.

3/8" (10mm) Pipe to 3/8" Male Thread T-joint

This t-joint has two quick-fitting sides for 3/8" piping, and one 3/8" male Thread located on the "bottom" of the T fitting. This fitting is normally used when you want the product (or filtered) water coming out of a housing (with a filter inside), or a Filtration plant, to then "t-off" to two separate "end" points. For example, you want product water from a DI filter to go to both a tap for filling containers, as well as a storage tank.

3/8" (10mm) Pipe to 1/4" Male Thread T-joint

This t-joint has two quick-fitting sides for 3/8" piping, and one 1/4" male Thread located on the "bottom" of the T fitting. This fitting is normally used when you want the product (or filtered) water coming out of a housing (with a filter inside) or inline filter (such as a T33 or inline refillable shell), to then "t-off" to two separate "end" points. For example, you want product water from a DI filter to go to both a tap for filling containers, as well as an aquarium, for topping up its water.

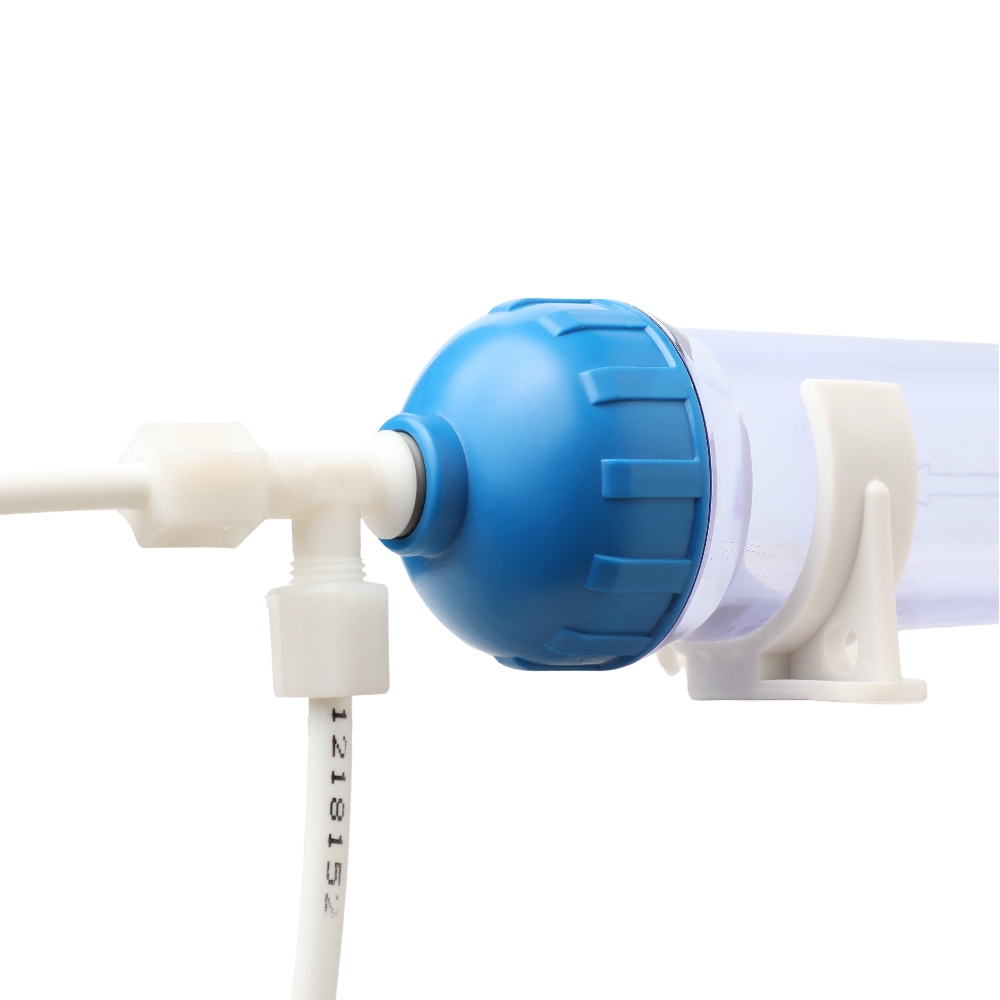

1/4" T - Joint (2 pipe connectors & 1 thread) Jaco Type

This t-joint has two Jaco-type nuts for connecting 1/4" piping one on the side and one on the "bottom" of the T fitting, it also has one 1/4" male Thread located on the one "side". This fitting is normally used when you want the product (or filtered) water coming out of a housing (with a filter inside) or inline filter (such as a T33 or inline refillable shell), to then "t-off" to two separate "end" points. For example, you want product water from a DI filter to go to both a tap for filling containers, as well as an aquarium, for topping up its water.
