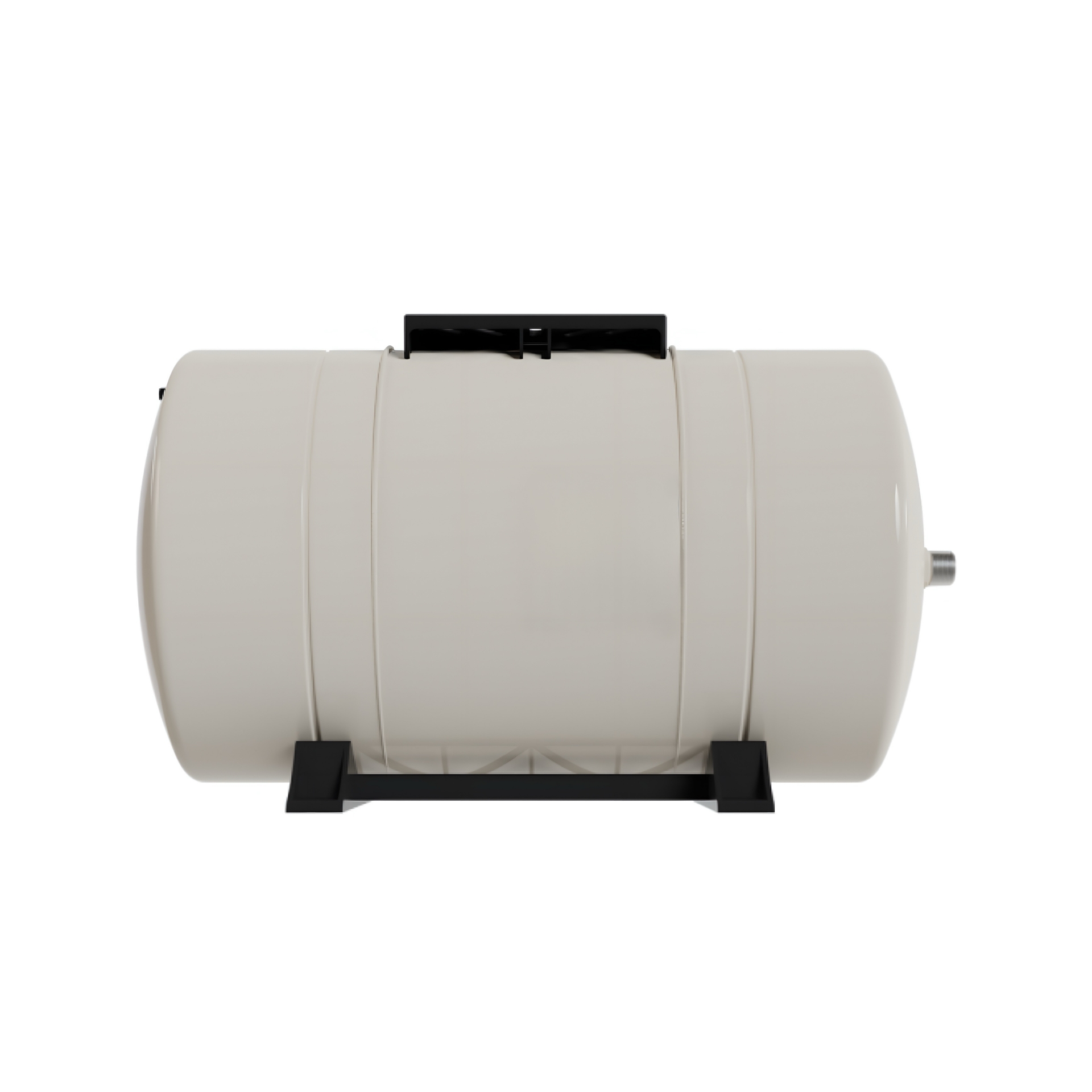

PressureWave™ 80 Litre Horizontal Pressure Tank - PWB-80LH

Be the first to review this product

Tank Code: PWB-80LH

Type of Pressure Tank: Horizontal

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 80 Liter / 21.13 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 726mm / 72.6cm

Diameter: 38.9cm / 389mm / 15.3 inch

Warranty*: 5 Years

Availability: Out of stock

Old price: R7 500,00

Price: R5 995,00

Qty:

i h

Overview
Contact Us

PWB-80LH - 80 Litre Inline Pressure Tank

The PressureWave™ 80-liter / 21.13-gallon horizontal pressure tank is engineered for dependable performance in larger systems. Its virgin polypropylene liner and high-grade butyl diaphragm are reinforced to ensure long service life. The patented stainless-steel water connection offers a dual seal, preventing leaks and reducing maintenance needs.

With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this horizontal tank is suitable for booster systems, irrigation, and thermal expansion. The robust carbon steel shell, coated with a dual-layer polyurethane finish, provides exceptional resistance to wear and corrosion, ensuring reliable operation under high-pressure conditions.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-80LH

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 80 Liter / 21.13 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 726mm / 72.6cm

Diameter: 38.9cm / 389mm / 15.3 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
