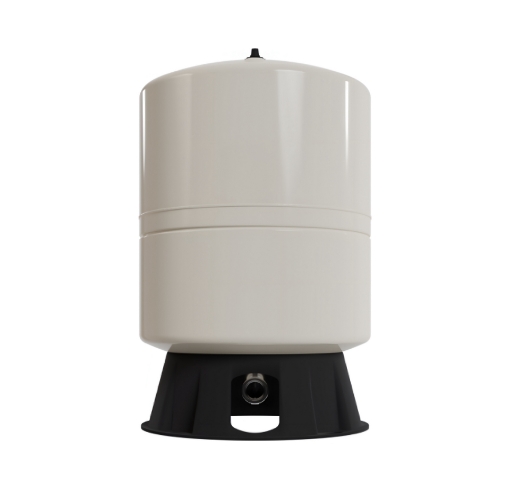

PressureWave™ 60 Litre Vertical Pressure Tank - PWB-60LV

Be the first to review this product

Tank Code: PWB-60LV

Type of Pressure Tank: Vertical

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 60 Liter / 15.85 Gallon

Connection: 1" BSPT (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 619mm / 61.9cm

Diameter: 39cm / 390mm / 15.3 inch

Warranty*: 5 Years

Availability: In stock

Old price: R5 950,00

Price: R4 950,00

Qty:

i h

Overview
Contact Us

PWB-60LV - PressureWave™ 60 Litre Vertical Pressure Tank

The PressureWave™ 60-liter / 15.85-gallon vertical pressure tank is designed to optimize space efficiency while delivering robust performance. Its virgin polypropylene liner and high-grade butyl diaphragm are clench-ring secured and reinforced for enhanced durability. The patented stainless-steel water connection ensures a dual water/air seal, preventing leaks and reducing maintenance.

This vertical tank, featuring a 1" BSPP connection and pre-charged to 1.9 bar / 28 psi, is ideal for booster systems, thermal expansion, and hydraulic hammer arresting. Its carbon steel shell, finished with a dual-layer polyurethane coating, ensures long-lasting protection against corrosion and environmental damage.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-60LV

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 60 Liter / 15.85 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 619mm / 61.9cm

Diameter: 39cm / 390mm / 15.3 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
