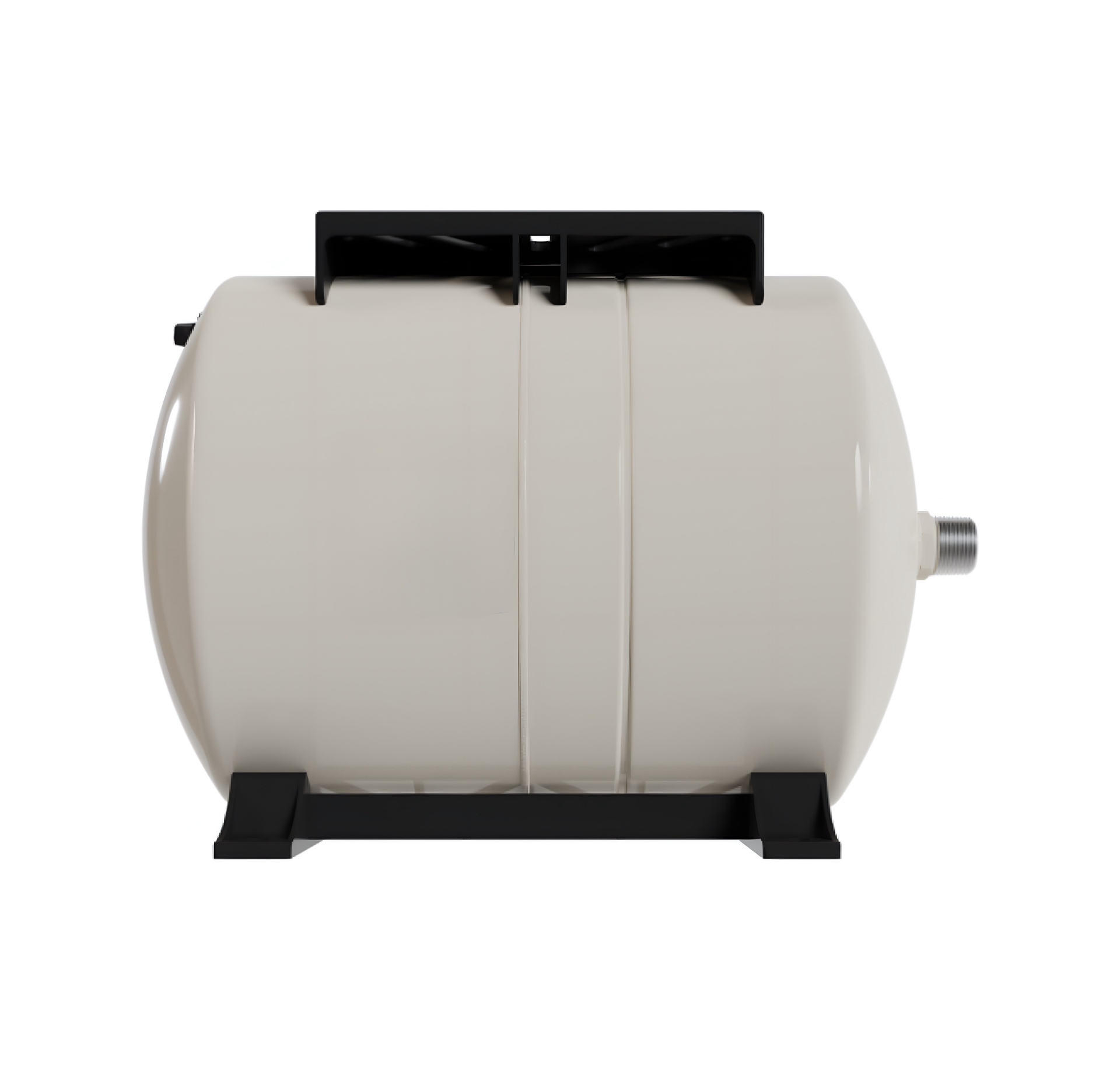

PressureWave™ 60 Litre Horizontal Pressure Tank - PWB-60LH

Be the first to review this product

Tank Code: PWB-60LH

Type of Pressure Tank: Horizontal

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 60 Liter / 15.85 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 530mm / 53cm

Diameter: 38.9cm / 389mm / 15.3 inch

Warranty*: 5 Years

Old price: R5 950,00

Price: R4 950,00

Qty:

i h

Overview
Contact Us

PWB-60LH - 60 Litre Inline Pressure Tank

The PressureWave™ 60-liter / 15.85-gallon horizontal pressure tank is designed to deliver reliable performance for medium-sized pressure systems. Its virgin polypropylene liner and high-grade butyl diaphragm ensure extended durability, while the patented stainless-steel water connection provides a dual water/air seal to prevent leaks. The brass air valve, secured with an O-ring, adds to its maintenance-free design.

This tank is pre-charged to 1.9 bar / 28 psi and features a 1" BSPT connection for easy integration. Its robust carbon steel shell, finished with dual-layer polyurethane paint, ensures corrosion resistance. Perfect for booster systems, thermal expansion, and hydraulic hammer arresting, this horizontal tank is a dependable choice.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-60LH

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 60 Liter / 15.85 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 530mm / 53cm

Diameter: 38.9cm / 389mm / 15.3 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
