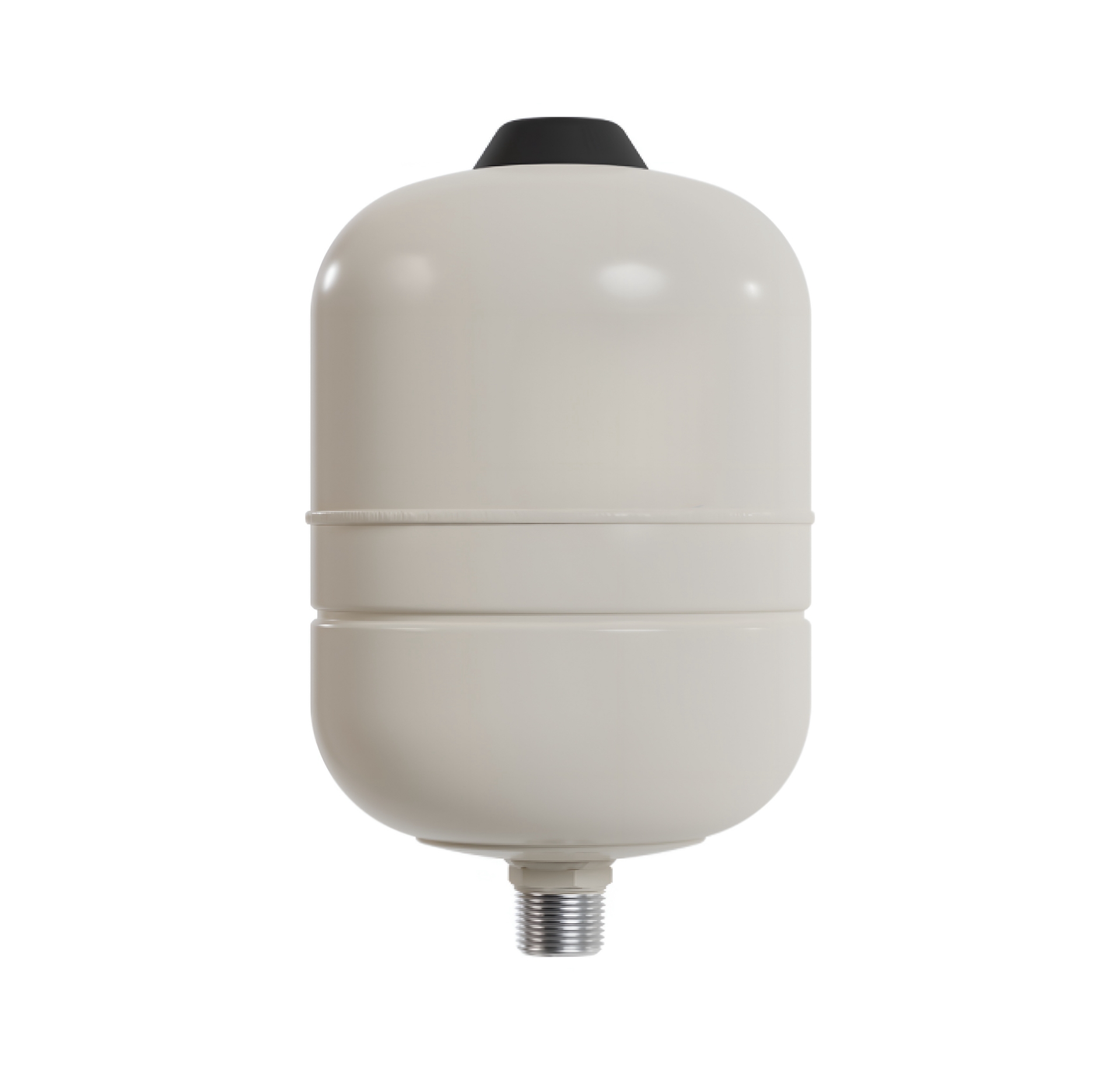

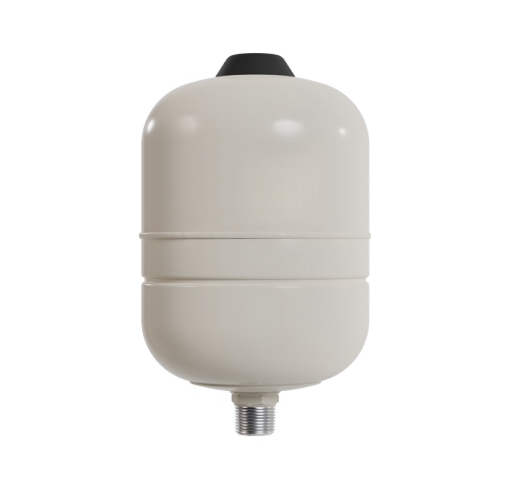

PressureWave™ 6 Litre Inline Pressure Tank - PWB-6LX

Be the first to review this product

Tank Code: PWB-6LX

Type of Pressure Tank: Inline

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 6 Liter / 1.59 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 29cm / 290mm

Diameter: 17.8 cm / 178cm / 7 inch

Warranty*: 5 Years

Availability: Out of stock

R1 095,00

Qty:

i h

Overview
Contact Us

PWB-6LX - 6 Litre Inline Pressure Tank

The PressureWave™ 6-liter / 1.59-gallon inline pressure tank is a dependable solution for small systems requiring pressure stabilization. Its virgin polypropylene liner and high-grade butyl diaphragm are reinforced in key areas for long-term performance. The patented stainless-steel water connection ensures a dual water/air seal, while the O-ring-sealed brass air valve enhances reliability.

With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this tank is suitable for applications such as thermal expansion and small booster systems. The carbon steel shell, coated with a polyurethane finish, provides resistance to corrosion and environmental wear.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-6LX

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 6 Liter / 1.59Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 29cm / 290mm

Diameter: 17.8 cm / 178mm / 7inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
