PressureWave™ 35 Litre Vertical Pressure Tank - PWB-35LV

Be the first to review this product

Tank Code: PWB-35LV

Type of Pressure Tank: Vertical

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 35 Liter / 9.25 Gallon

Connection: 1" BSPT (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 556mm / 55.6cm

Diameter: 31.8cm / 318mm / 12.5 inch

Warranty*: 5 Years

Availability: Out of stock

Old price: R4 750,00

Price: R3 495,00

Qty:

i h

Overview
Contact Us

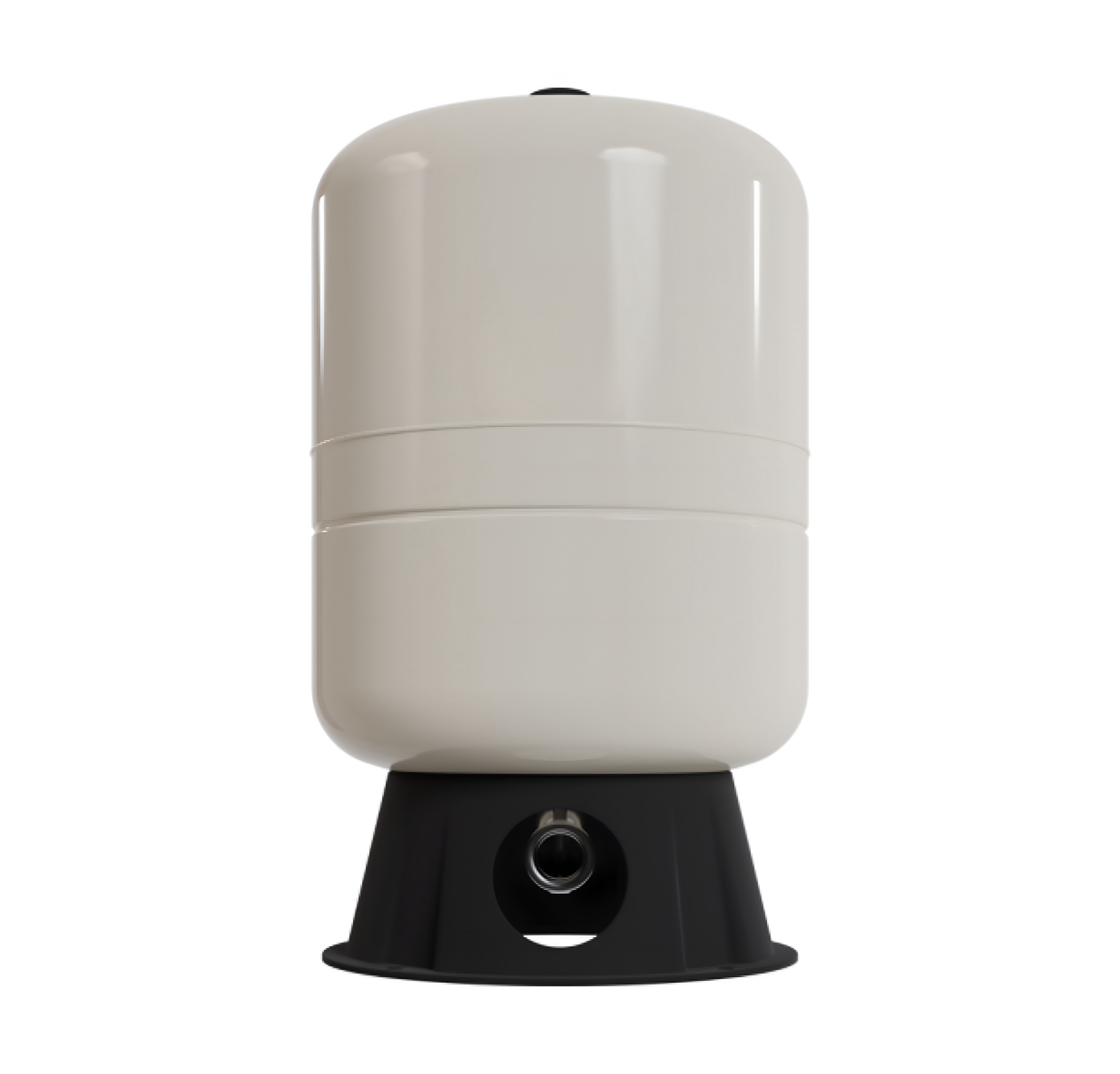

PWB-35LV - PressureWave™ 35 Litre Vertical Pressure Tank

The PressureWave™ 35-liter / 9.25-gallon vertical pressure tank is ideal for efficient pressure stabilization in compact spaces. It features a virgin polypropylene liner and a high-grade butyl diaphragm, reinforced to withstand wear and tear over time. The patented stainless-steel water connection ensures a dual water/air seal for leak-free performance.

With a 1" BSPP connection and pre-charged to 1.9 bar / 28 psi, this tank is perfect for booster systems, thermal expansion, and irrigation. Its vertical design optimizes space use, while the durable carbon steel shell and polyurethane coating offer long-lasting protection against environmental damage.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-35LV

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 35 Liter / 9.25 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 556mm / 55.6cm

Diameter: 31.8 cm / 12.5 in

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
