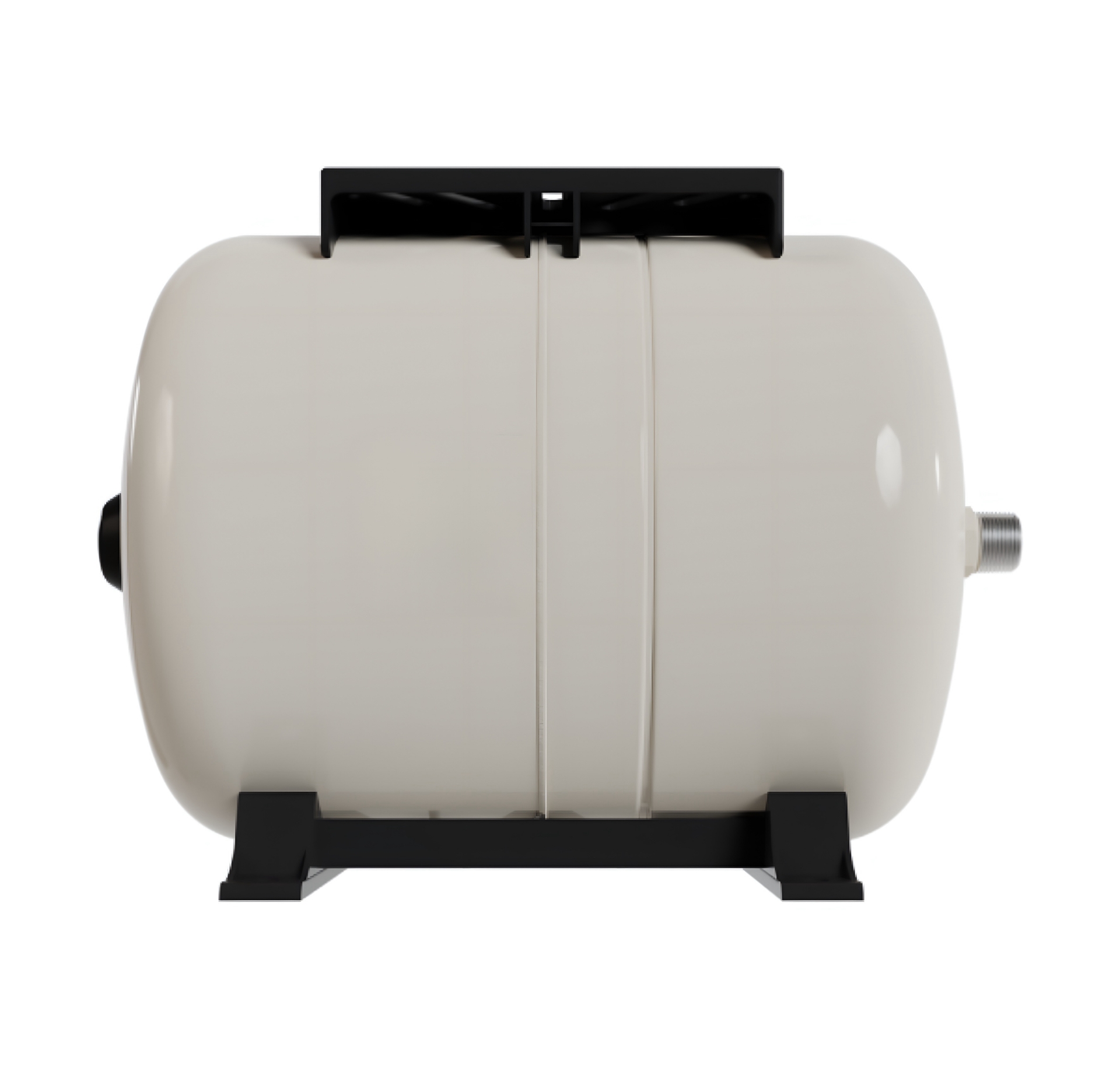

PressureWave™ 35 Litre Horizontal Pressure Tank - PWB-35LH

Be the first to review this product

Tank Code: PWB-35LH

Type of Pressure Tank: Horizontal

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 35 Liter / 9.25 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 481mm / 48.1cm

Diameter: 31.8cm / 318mm / 12.5 inch

Warranty*: 5 Years

Availability: Out of stock

R3 750,00

Qty:

i h

Overview
Contact Us

PWB-35LH - 35 Litre Inline Pressure Tank

The PressureWave™ 35-liter / 9.25-gallon horizontal pressure tank is built for durability and flexibility in system integration. Its virgin polypropylene liner and high-grade butyl diaphragm, reinforced in key areas, ensure long-lasting performance. The patented stainless-steel water connection offers a dual water/air seal, reducing leaks and maintenance. The brass air valve, secured with an O-ring, enhances reliability.

Pre-charged to 1.9 bar / 28 psi and fitted with a 1" BSPT connection, this horizontal tank is perfect for applications like booster systems and thermal expansion. Its carbon steel shell, coated with dual-layer polyurethane paint, provides excellent corrosion resistance and durability, ensuring reliable operation under pressure.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-35LH

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 35 Liter / 9.25 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Length: 481mm / 48.1cm

Diameter: 29.1 cm / 291mm / 12.5 in

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
