PressureWave™ 3 Litre Inline Pressure Tank - PWB-3LX

Be the first to review this product

Tank Code: PWB-3LX

Type of Pressure Tank: Inline

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 3 Liter / 0.79 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 243mm / 24.3cm

Diameter: 14.3 cm / 143mm / 5.6 inch

Warranty*: 5 Years

Availability: Out of stock

Old price: R995,00

Price: R795,00

Qty:

i h

Overview
Contact Us

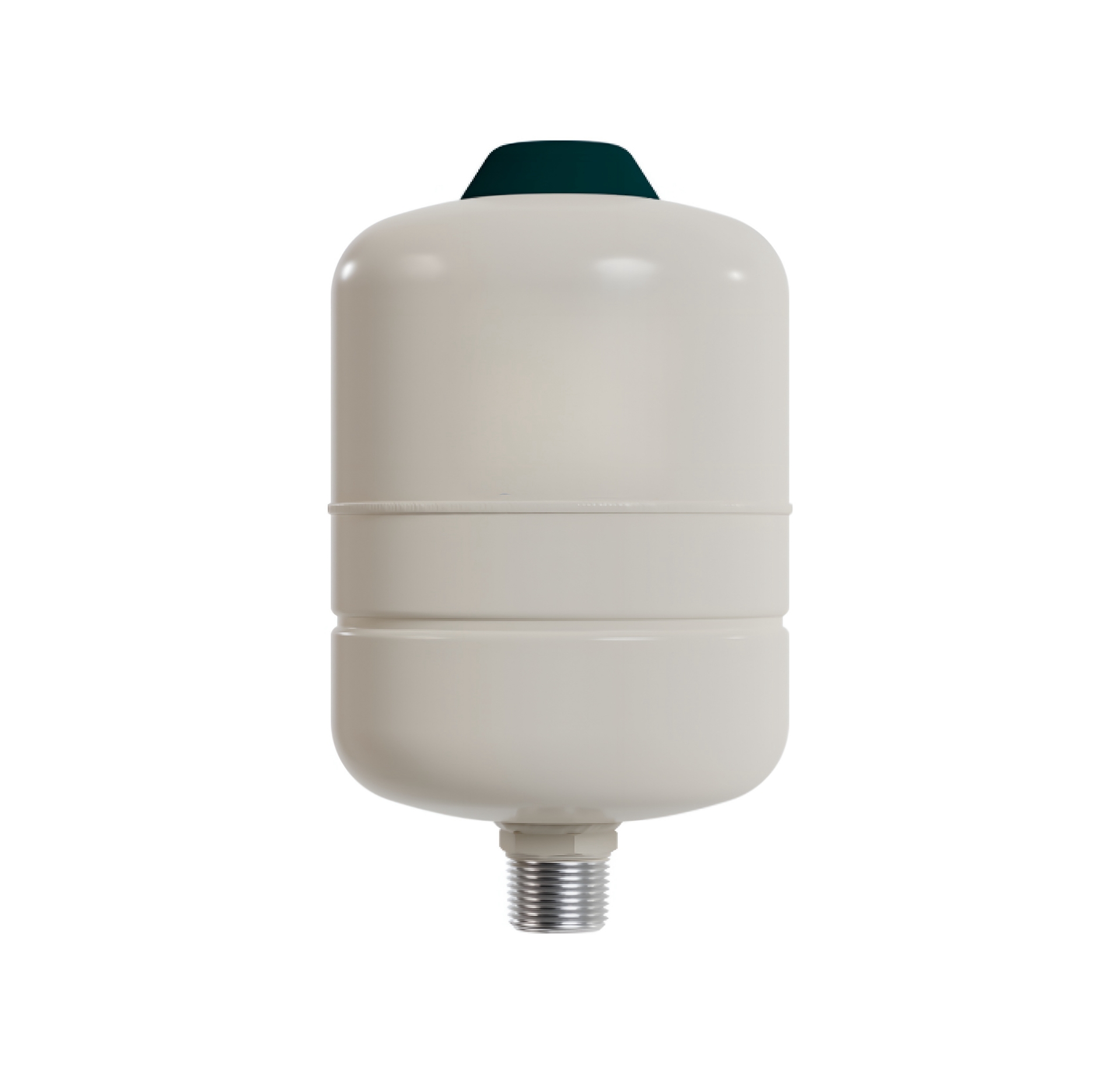

PWB-3LX - 3 Litre Inline Pressure Tank

The PressureWave™ 3-liter / 0.79-gallon inline pressure tank is a compact option designed for small-scale pressure stabilization. It features a virgin polypropylene liner and a high-grade butyl diaphragm, reinforced to handle long-term use. The patented stainless-steel water connection ensures a dual water/air seal, while the O-ring-sealed brass air valve prevents leaks.

With a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this inline tank is suitable for thermal expansion or small booster systems. Its lightweight and compact design, coupled with a carbon steel shell protected by a polyurethane finish, ensures dependable and long-lasting operation.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-3LX

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 3 Liter / 0.79 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 243mm / 24.3cm

Diameter: 14.3 cm / 143mm / 5.6 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
