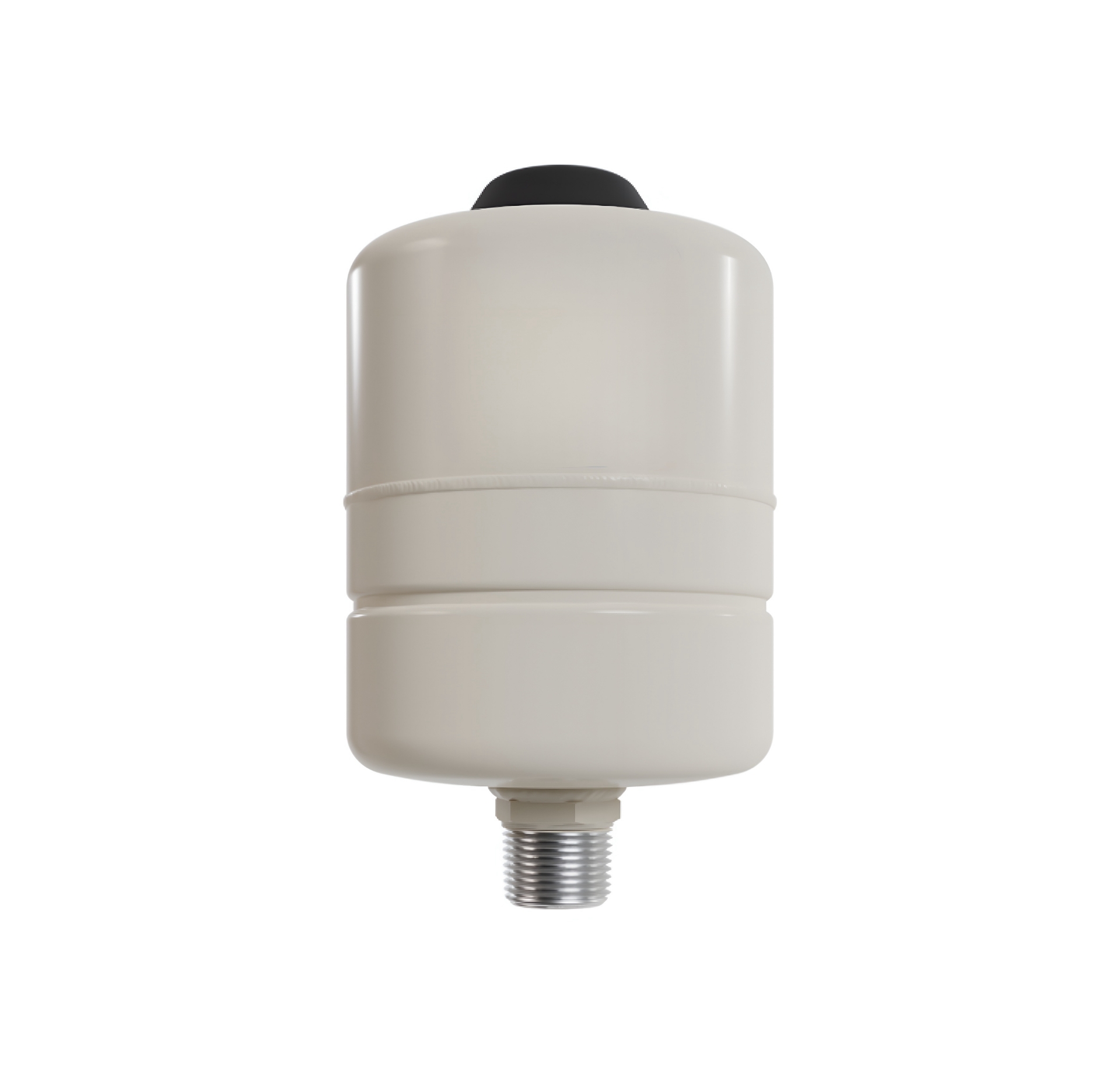

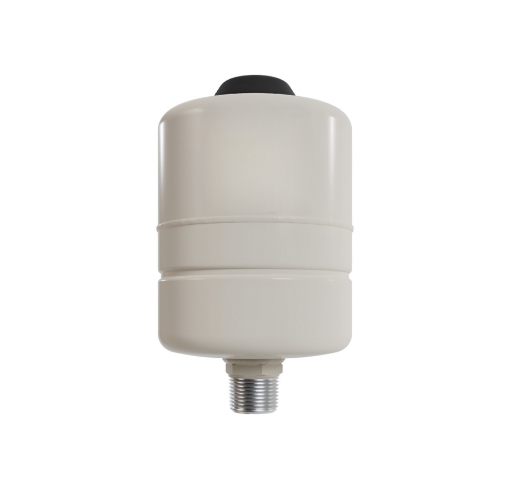

PressureWave™ 2 Litre Inline Pressure Tank - PWB-2LX

Be the first to review this product

Tank Code: PWB-2LX

Type of Pressure Tank: Inline

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 2 Liter / 0.53 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 208mm / 20.8cm

Diameter: 12.6 cm / 126mm / 5 inch

Warranty*: 5 years

Old price: R995,00

Price: R695,00

Qty:

i h

Overview
Contact Us

PWB-2LX - 2 Litre Inline Pressure Tank

The PressureWave™ 2-liter / 0.53-gallon inline pressure tank is a lightweight and compact option for small pressure systems. Its virgin polypropylene liner and high-grade butyl diaphragm, reinforced for enhanced durability, ensure reliable performance over time. The patented stainless-steel water connection and O-ring-sealed brass air valve provide a leak-free, maintenance-free design.

Equipped with a 1" BSPT connection and pre-charged to 1.9 bar / 28 psi, this inline tank is ideal for applications such as thermal expansion and small booster systems. Its carbon steel shell, coated with polyurethane paint, ensures long-lasting corrosion resistance.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-2LX

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 2 Liter / 0.53 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 208mm / 20.8cm

Diameter: 12.6 cm / 126mm / 5 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
