PressureWave™ 18 Litre Inline Pressure Tank - PWB-18LX

Be the first to review this product

Tank Code: PWB-18LX

Type of Pressure Tank: Inline

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 18 Liter / 4.76 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 367mm / 36.7cm

Diameter: 27.9cm / 279mm / 11 in

Warranty*: 5 Years

Availability: Out of stock

Old price: R2 295,00

Price: R1 995,00

Qty:

i h

Overview
Contact Us

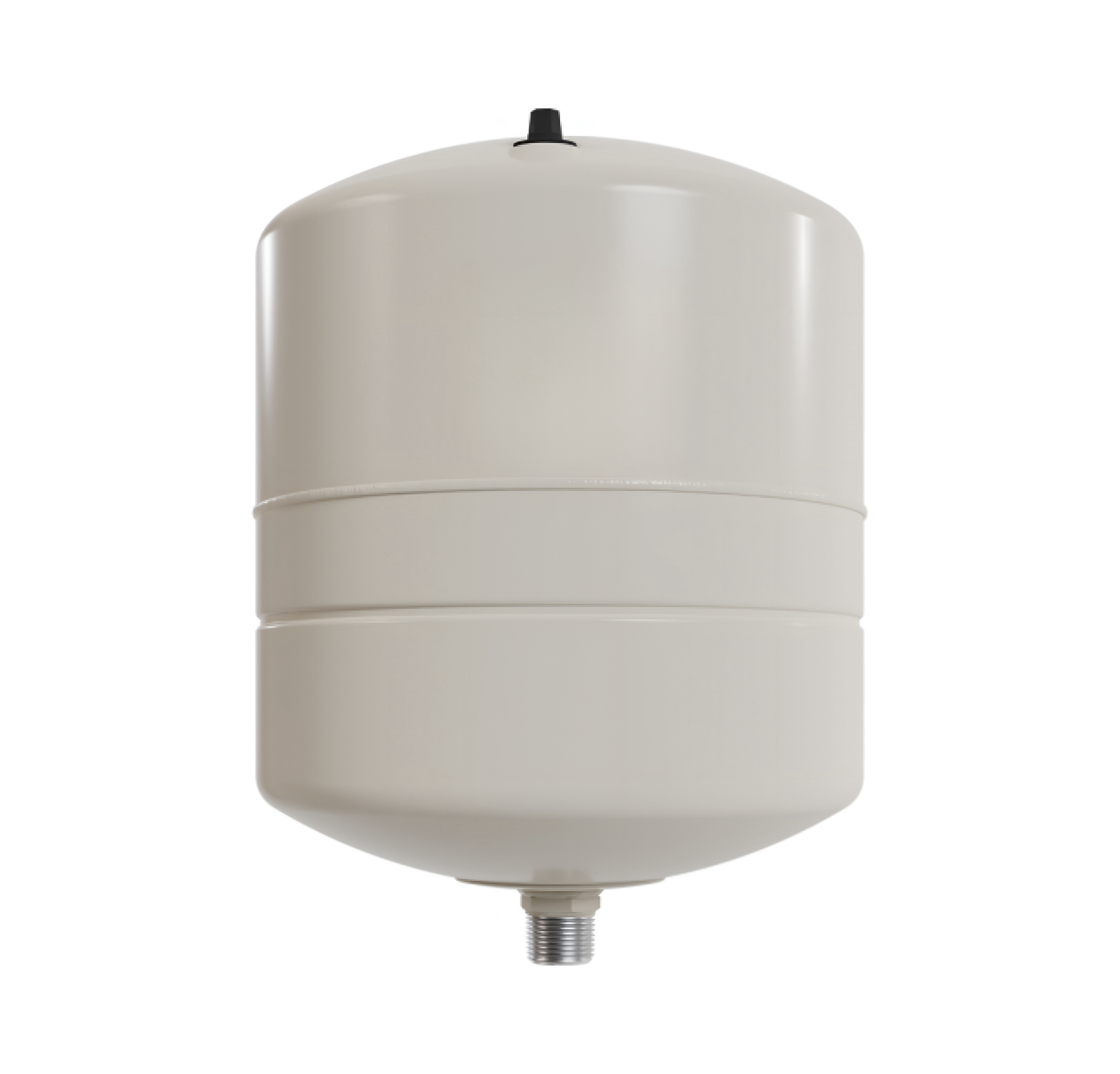

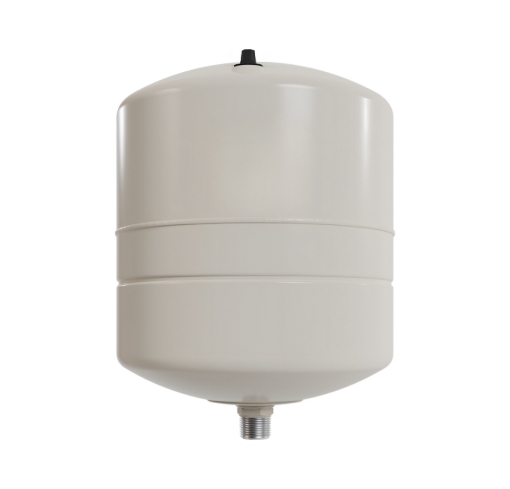

PWB-18LX - 18 Litre Inline Pressure Tank

The PressureWave™ 18-liter / 4.76-gallon inline pressure tank is compact yet robust, ideal for smaller systems requiring dependable pressure management. It features a virgin polypropylene liner and a high-grade butyl diaphragm, both reinforced in critical areas to maximize durability. The patented stainless-steel water connection and brass air valve ensure a dual water/air seal, offering a leak-free and maintenance-free solution.

Pre-charged to 1.9 bar / 28 psi and equipped with a 1" BSPT connection, this inline tank is suitable for various applications, including thermal expansion and irrigation systems. Its carbon steel shell, coated with dual-layer polyurethane paint, ensures long-term protection against wear and corrosion.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-18LX

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 18 Liter / 4.76 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 367mm / 36.7cm

Diameter: 27.9cm / 279mm / 11 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
