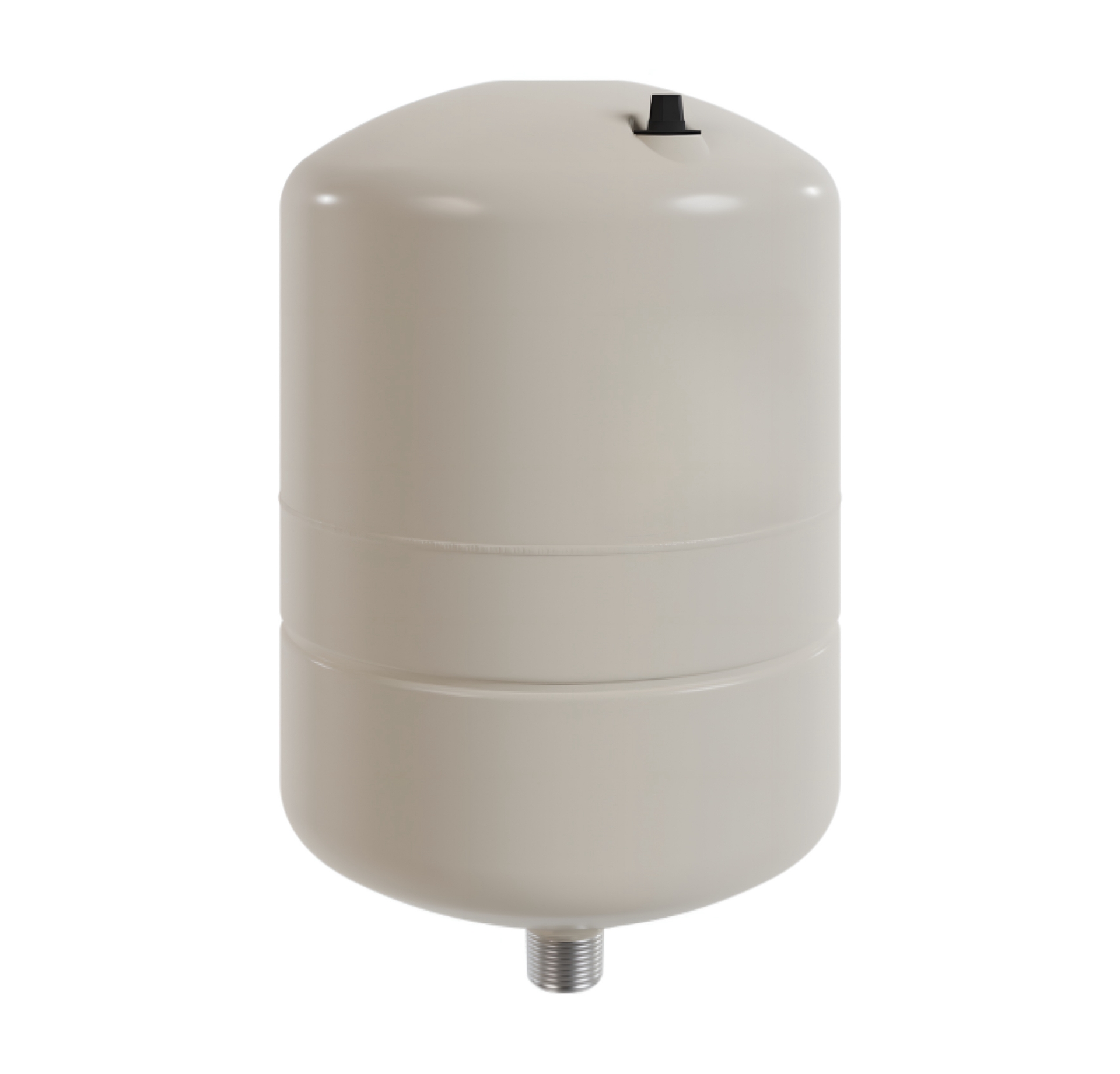

PressureWave™ 12 Litre Inline Pressure Tank - PWB-12LX

Be the first to review this product

Tank Code: PWB-12LX

Type of Pressure Tank: Inline

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 12 Liter / 3.17 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 367mm / 36.7cm

Diameter: 23 cm / 230mm / 9.1 in

Warranty*: 5 Years

Availability: Out of stock

Old price: R1 995,00

Price: R1 795,00

Qty:

i h

Overview
Contact Us

PWB-12LX - 12 Litre Inline Pressure Tank

The PressureWave™ 12-liter / 3.17-gallon inline pressure tank is designed for compact systems requiring efficient pressure stabilization. It features a virgin polypropylene liner and a high-grade butyl diaphragm, both reinforced to extend lifespan. The tank’s patented stainless-steel water connection and brass air valve with an O-ring cap ensure a leak-free and maintenance-free performance.

This model is pre-charged to 1.9 bar / 28 psi and equipped with a 1" BSPT connection for straightforward integration. Its inline configuration is perfect for small-scale booster systems and thermal expansion applications. A durable carbon steel shell with polyurethane coating provides reliable protection against external wear.

Booster systems
Thermal expansion
Irrigation systems
Hydraulic hammer arresting

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Reinforced engineered thermoplastic pump stand and feet
Virgin polypropylene liner
Patented stainless steel water connection
Carbon steel shell
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: PWB-12LX

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.9 bar / 28 psi

Nominal Volume: 12 Liter / 3.17 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 367mm / 36.7cm

Diameter: 23 cm / 230mm / 9.1 inch

Certifications

Warranty*

All PressureWave™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
