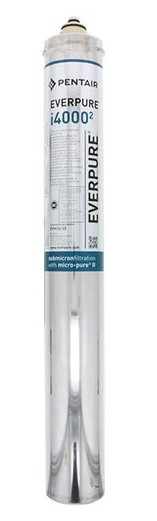

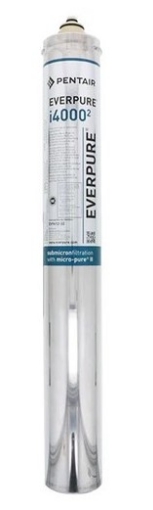

Pentair Everpure i4000² Cartridge (EV9612-37)
The Everpure i4000² Cartridge (Part Number: EV9612-37) is a specialized replacement filter cartridge designed for commercial ice machines. It is the Premium-level model in the "Insurice" series, built to ensure your ice is crystal clear and your machine stays free of scale.
The "Insurice" series of Everpure filter cartridges has several cartridges available, depending on ice machine capacity and flow rate requirements:
- i500²: Is designed for Small Commercial Ice machines with a capacity and production rate of a maximum of 90kgs / 24 hours
- i2000²: Is designed for Medium Commercial Ice machines with a capacity and production rate of a maximum of 285kgs / 24 hours
- i4000²: Is designed for Large Commercial Ice machines with a capacity and production rate of a maximum of 365kgs / 24 hours
Micro-Pure® II Media, this enhanced media inhibits the growth of bacteria within the filter, which is important for hospitality environments where machines may sit idle overnight.
Micro-Pure® II Media filters the water down to 0.2 microns. This helps to capture submicron particles and sediment, as well as capturing some organisms, bacteria, and cysts present in the water.
Bacteriostatic: It uses AgION™ antimicrobial protection to inhibit the growth of bacteria within the filter itself, helping to reduce bio fouling and extend the filters lifespan.
Designed for quick, hassle-free changes, the Everpure i4000² Cartridge seamlessly fits onto the Everpure QL3B Single Head and supports the uninterrupted operation and keeps downtime minimal — an ideal solution for busy foodservice environments.
Applications:
- Large-Scale Commercial Ice Makers: For ice makers up to 365kg per hour, built to ensure your ice is crystal clear and your machine stays free of scale.
Key Features:
- Micron-Pure® II Media: Delivers high-efficiency sediment and chlorine reduction while maintaining flow rates.
- Bacteriostatic Properties: Works to inhibit the growth of bacteria inside of the cartridge, preventing biofouling and extending the life span.
- Carbon Block Filtration: Effectively reduces chlorine taste, odor, and particulates.
- Precoat Submicron Technology: reduces dirt and particles as small as 0.5 microns. This also captures some organisms and bacteria present in the water.
- Quick-Change Design: Easy, sanitary cartridge replacement without the need for tools.
- NSF Certified: Meets NSF/ANSI Standards 42 and 53 for safety and performance.
Sediment Filtration levels:
The Everpure i4000² Cartridge Filters Down To: 0.2 Microns (0.2um)
To put this in perspective, look at the sizes of the following objects:
- Eye of a needle ……………………………………….1230 micron
- Dot (.)…………………………………………………………615 micron
- Table salt……………………………………………………100 micron
- Human Hair (average diameter)………………….60 micron
- White Blood Cell…………………………………………..25 micron
- Red Blood Cell………………………………………………..8 micron
- Spider Web………………………………………………...2 - 3 micron
- Bacteria (harmful)……………………………………0.3 - 2 micron
With a nominal sediment filter, 60 – 98% of all the particles larger than the specified filter micron number are removed.
Operating Specifications:
- Flow Rate: Up to 6.3 liters per minute
- Capacity: 45,424 liters
- Temperature: 2–38°C
- Pressure Range: 0.7–8.6 bar (Not Rated for Water Hammering/shock)
- Dimensions: H: 63.5cm x D: 8.2 cm
Keep in mind:
- i4000² Cartridge will not change the mineral content (TDS) in any way.
- i4000² Cartridge does not remove fluoride or heavy metals from water.
Installation Tips:
- Install vertically with the cartridge hanging down.
- Flush the cartridge by running water for 5 minutes before use.
- Ensure a minimum clearance of 6.5cm below the cartridge for easy replacement.
Maintenance Recommendations:
- Replace the cartridge every 6 months or when capacity is reached.
- Monitor for any drop in water pressure — a sign the cartridge needs replacing.
- Always flush the new cartridge before use to ensure peak performance.
