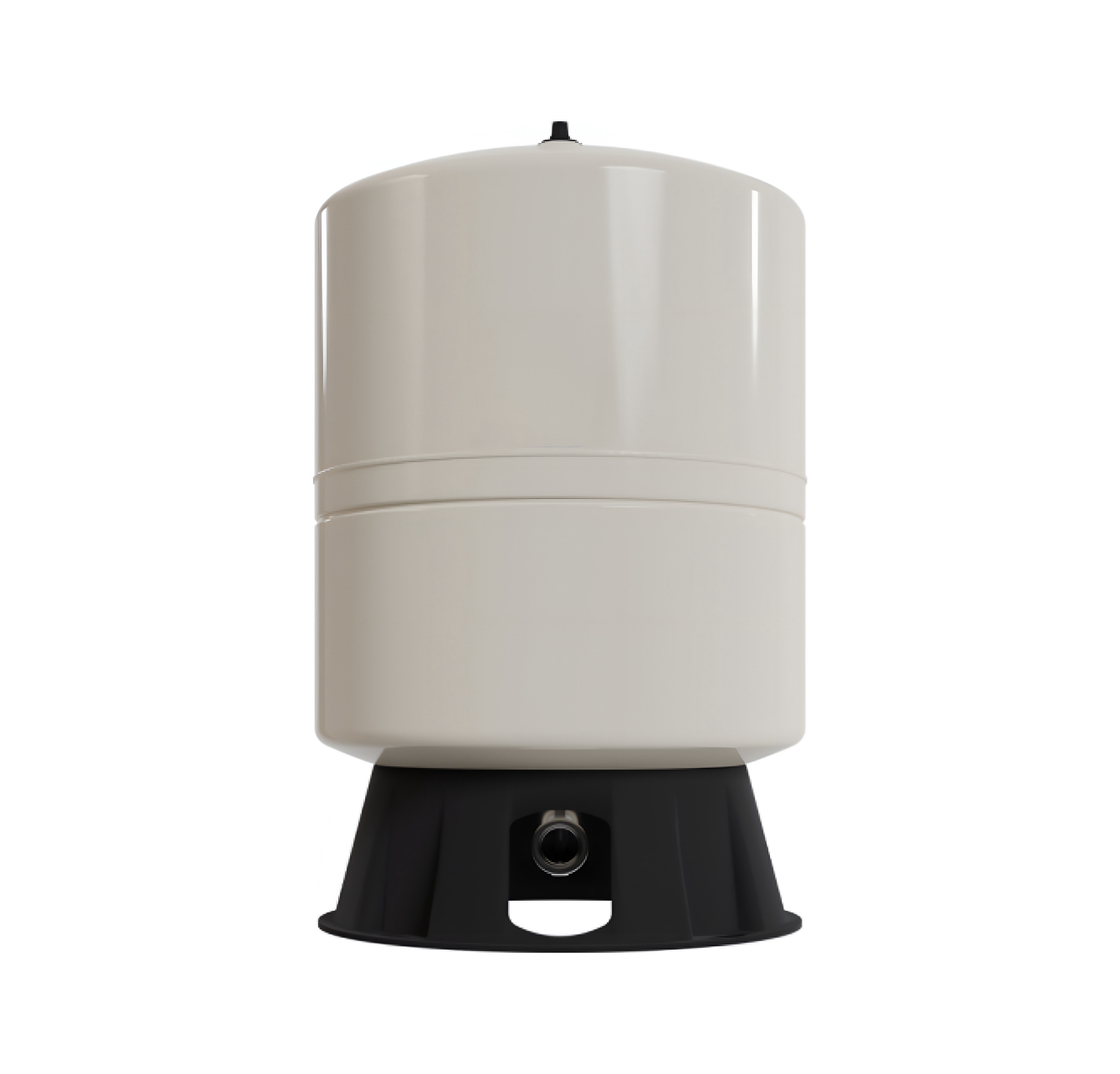

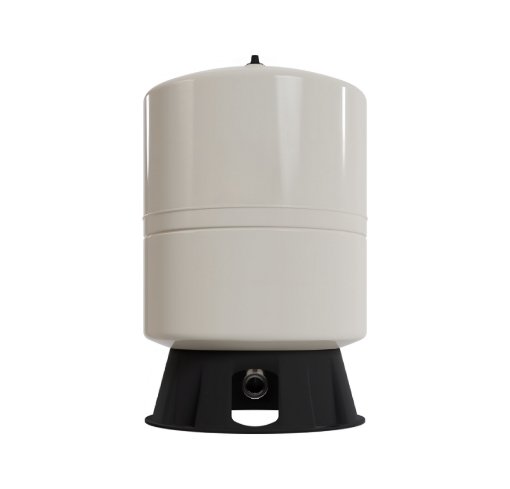

Max™ 60 Litre Vertical Pressure Tank - MXB-60LV

Be the first to review this product

Tank Code: MXB-60LV

Type of Pressure Tank: Vertical

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58psi

Nominal Volume: 60 Liter / 15.85 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 16 bar / 232 psi

Height: 619mm / 61.9cm

Diameter: 39cm / 390mm / 15.3in

Warranty*: 5 Years

R9 995,00

Qty:

i h

Overview
Contact Us

Max™ 60 Litre Vertical Pressure Tank - MXB-60LV

The Max™ Tank 60 liter / 15.85 gallon vertical model is engineered for challenging high-pressure environments, such as those found in commercial, residential, and industrial water systems. With its high-grade butyl diaphragm and leak-free air valve cap, it guarantees long-lasting performance and effective separation of air and water. The tank’s super-thick steel construction and patented stainless steel water connection make it an industry favorite.

Featuring a durable Almond dual-layer polyurethane finish, this vertical tank handles pressures up to 16 bar / 232 psi with ease. Its versatility makes it suitable for deep private water supplies, high-rise buildings, and agricultural applications. The 1" BSPP connection ensures compatibility with diverse systems.

Deep private water supplies
Long-distance agricultural supply
Hotels
Hospitals
Schools and universities
High-rise buildings

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Virgin polypropylene liner
Patented stainless steel water connection
Super thick steel construction
Replaceable tank base
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: MXB-60LV

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 60 Liter / 15.85 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 16 bar / 232 psi

Diameter: 39cm / 390mm /15.3 in

Height: 61.9cm / 619mm

Gross Weight: 15.1kg

Certifications

Warranty*

All Max™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
