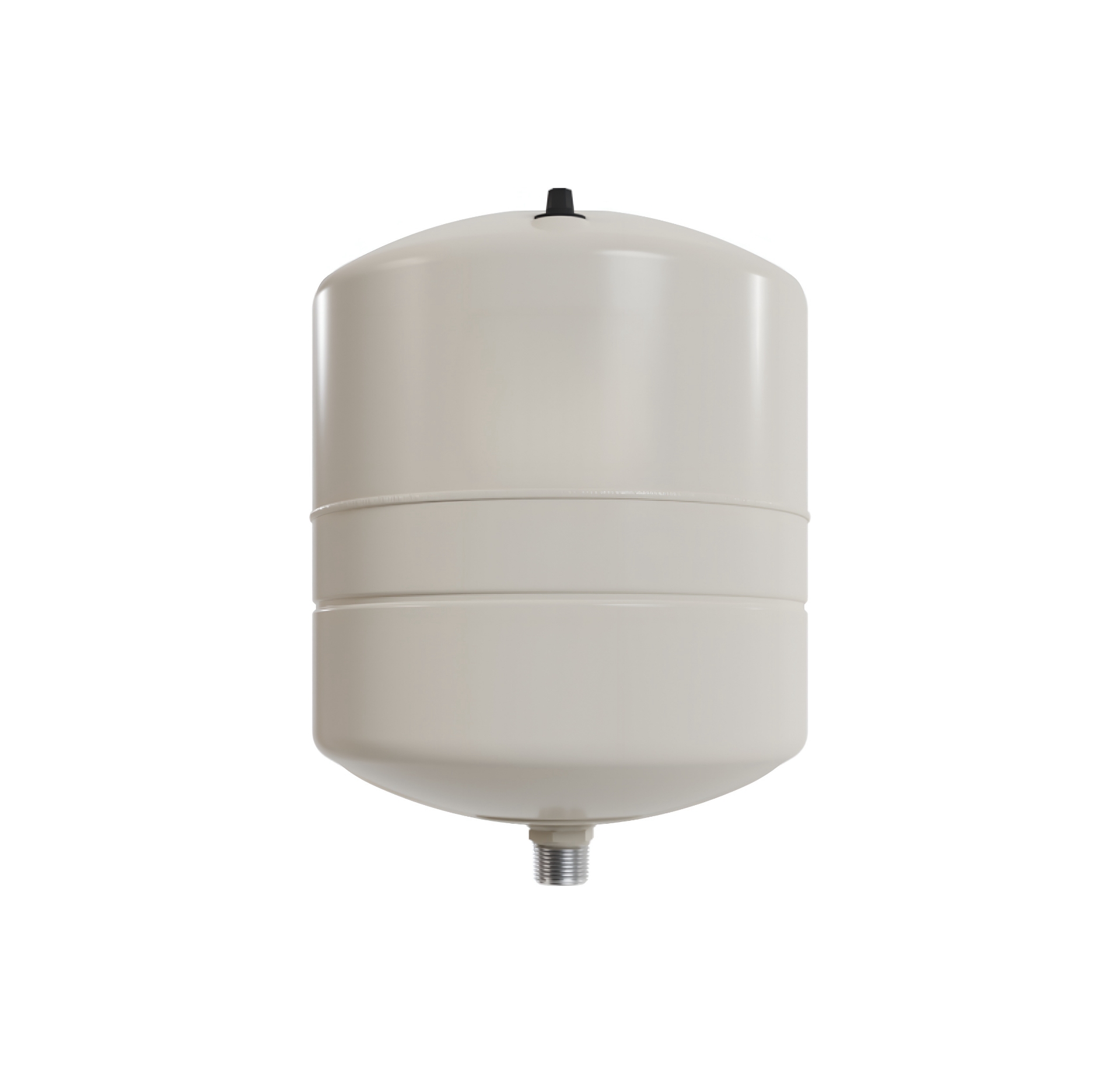

Max™ 18 Litre Inline Pressure Tank - MXB-18LX

Be the first to review this product

Tank Code: MXB-18LX

Type of Pressure Tank: Inline

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58psi

Nominal Volume: 18 Liter / 4.76 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 16 bar / 232 psi

Height: 367mm / 36.7cm

Diameter: 27.9cm / 279mm / 11 in

Warranty*: 5 Years

R3 795,00

Qty:

i h

Overview
Contact Us

Max™ 18 Litre Inline Pressure Tank - MXB-18LX

The Max™ Tank 18 liter / 4.76 gallon inline model is an exceptional solution for high-pressure applications. Built with super-thick steel construction and a patented stainless steel water connection, it ensures durability even under demanding conditions. This tank is equipped with a high-grade butyl diaphragm and a leak-free, O-ring-sealed air valve cap, providing a reliable barrier between air and water. Its inline design makes it ideal for compact installations in systems like high-rise water supply or long-distance irrigation setups.

Finished in an Almond dual-layer polyurethane paint for enhanced corrosion resistance, this tank also features a reinforced connection plate, adding durability to models between 8L and 35L. Perfect for applications in hotels, hospitals, and schools, it handles pressures up to 16 bar / 232 psi, making it a reliable choice for professionals across various industries.

Deep private water supplies
Long-distance agricultural supply
Hotels
Hospitals
Schools and universities
High-rise buildings

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual layer polyurethane paint finish
Virgin polypropylene liner
Patented stainless steel water connection
Super thick steel construction
Replaceable tank base
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: MXB-18LX

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 18 Liter / 4.76 Gallon

Connection: 1" BSPT (M)

Color: Almond

Pressure Max: 16 bar / 232 psi

Diameter: 27.9 cm / 11 in

Height: 36.7cm / 367mm

Gross Weight: 5kg

Certifications

Warranty*

All Max™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
