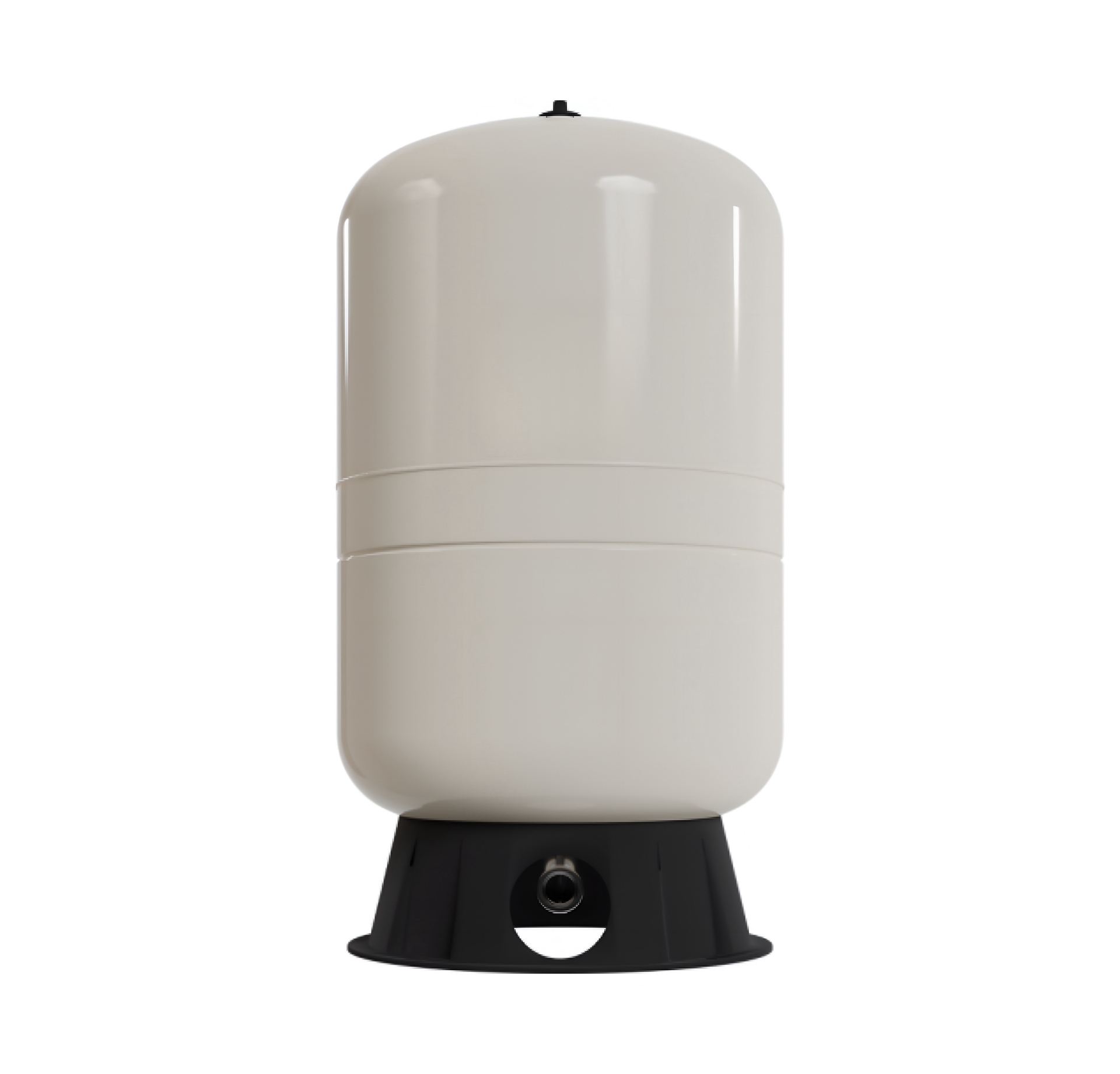

Max™ 100 Litre Vertical Pressure Tank - MXB-100LV

Be the first to review this product

Tank Code: MXB-100LV

Type of Pressure Tank: Vertical

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58psi

Nominal Volume: 100 Liter / 26.42 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 16 bar / 232 psi

Height: 805mm / 80.5cm

Diameter: 43.2cm / 432mm / 17in

Warranty*: 5 Years

R15 995,00

Qty:

i h

Overview
Contact Us

Max™ 100 Litre Vertical Pressure Tank - MXB-100LV

The Max™ Tank 100 liter / 26.42 gallon vertical model is ideal for high-capacity water systems in commercial and industrial setups. Its super thick steel construction, paired with a high-grade butyl diaphragm and patented stainless steel water connection, ensures exceptional performance and durability.

Finished with Almond dual-layer polyurethane paint for long-term corrosion resistance, this vertical tank can handle pressures of up to 16 bar / 232 psi. The 1" BSPP connection provides compatibility with a range of systems, making it suitable for irrigation, fire safety, and high-rise water supply applications.

Deep private water supplies
Long-distance agricultural supply
Hotels
Hospitals
Schools and universities
High-rise buildings

Features & Benefits

Leak-free, O-ring sealed air valve cap
High-grade butyl diaphragm design
Dual-layer polyurethane paint finish
Virgin polypropylene liner
Patented stainless steel water connection
Super thick steel construction
Replaceable tank base
RCP - reinforced connection plate for inline models from 8L to 35L

MODEL NUMBER: MXB-100LV

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 4 bar / 58 psi

Nominal Volume: 100 Liter / 26.42 Gallon

Connection: 1" BSPP (F)

Color: Almond

Pressure Max: 16 bar / 232 psi

Diameter: 43.2cm / 432mm /17in

Height: 80.5cm / 805mm

Gross Weight: 26.8kg

Certifications

Warranty*

All Max™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
