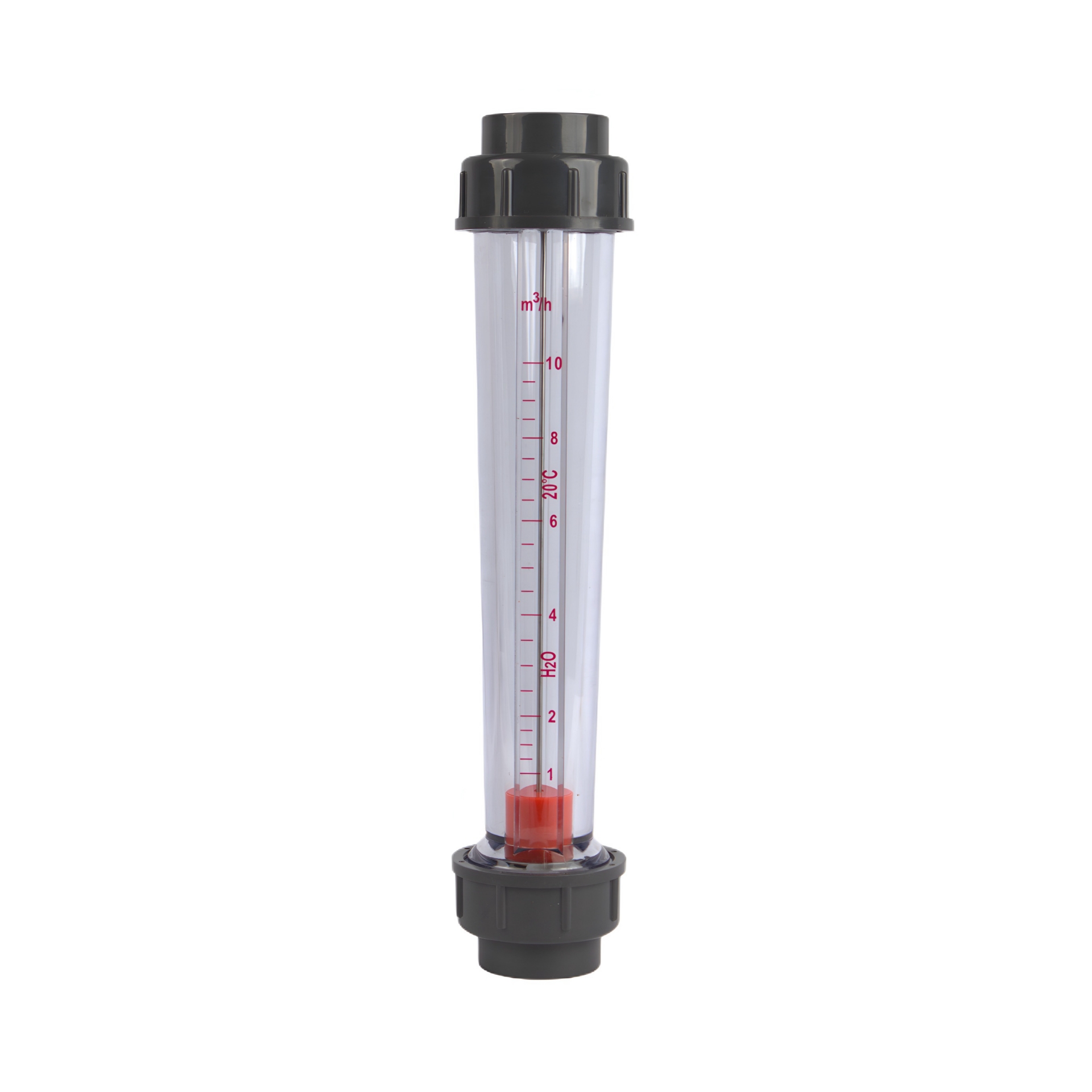

LZS-40: 1000 to 10 000LPH Rotameter Flowmeter

Materials:
Body: Acrylonitrilestyrene
Float/Guide: Plastic / 316L Stainless Steel
Connectors: UPVC union adapter socket

Operating Limits:
Max pressure: 6 bar
Max temp: 60 deg C
Minimum flow: 1000 LPH
Maximum flow: 10 000 LPH

Dimensions:
50mm PVC socket connection (PVC solvent/glue)
430mm long with a stainless steel guide
Outside diameter: 80mm

Instructions:
Install in a vertical orientation.
No elbows or valves immediately before or after flow meter as this will affect accuracy.

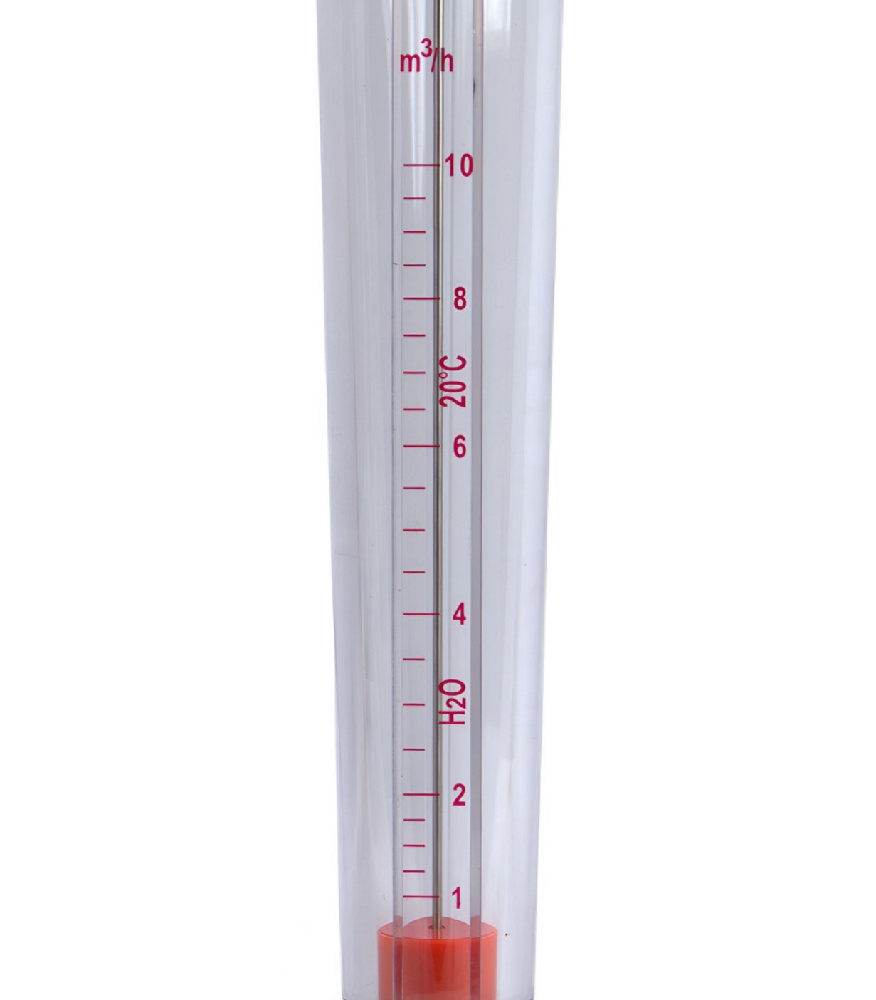

Read flow rate level with the top of float.
Open unions as required to clean the barrel of meter.
