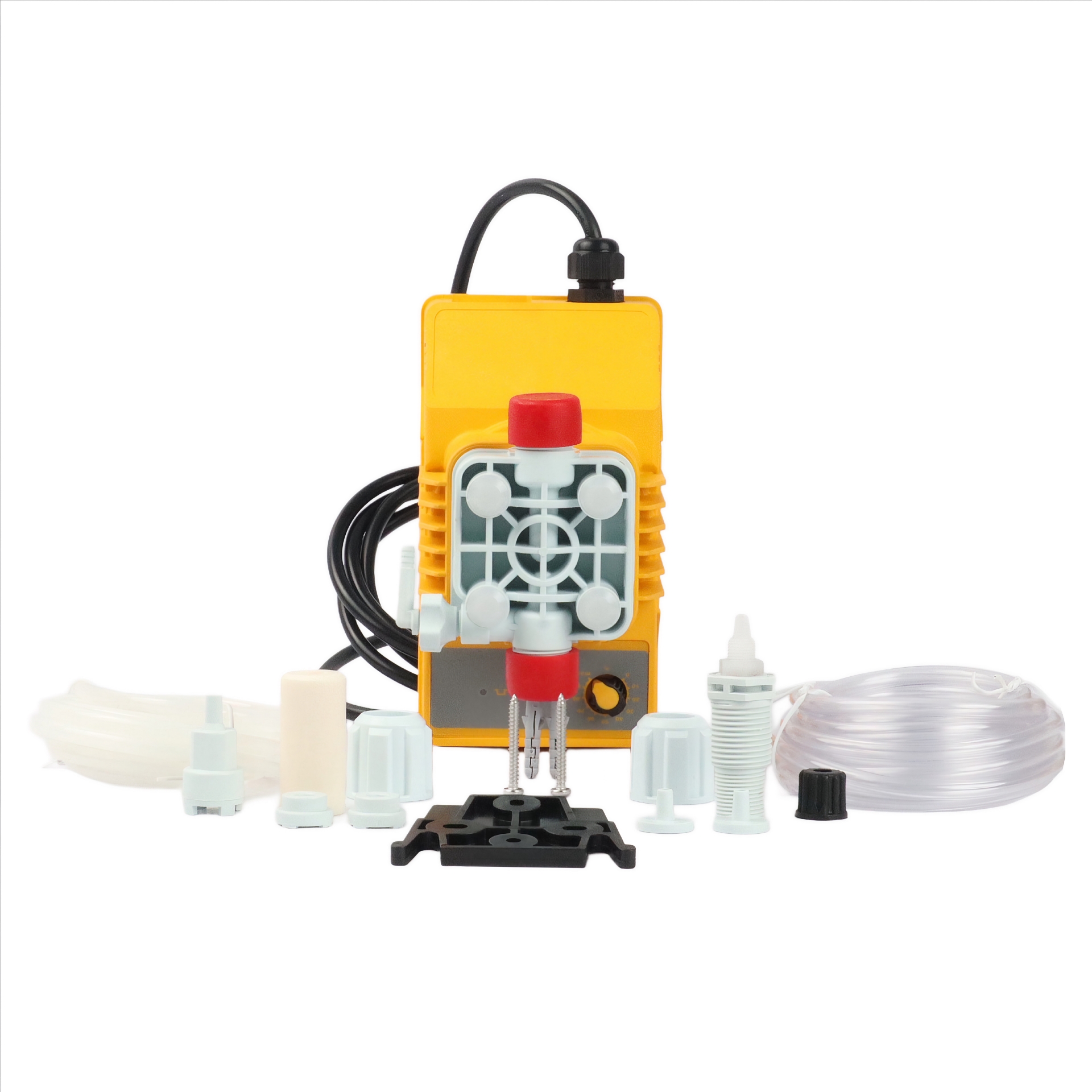

Hydra BX Dosing Pump

Hydra BX Dosing Pump

The Hydra BX by Injecta is an advanced solenoid-driven digital dosing pump engineered for precise metering of liquids in a wide range of chemical dosing systems. With multiple control modes—including manual, proportional, and external pulse input—it delivers exceptional versatility across different application environments.

The Hydra BX includes a backlit LCD display that provides intuitive navigation and real-time operating data. Its microprocessor-based control system ensures accurate dosing even under variable pressure conditions. The pump’s IP65-rated housing guarantees robust protection against dust and water, making it suitable for both indoor and outdoor installations.

Designed with ease of installation and minimal maintenance in mind, the Hydra BX features adjustable flow rates, a compact footprint, and universal power input. Whether you're dosing chlorine, acids, polymers, or other chemicals, the Hydra BX offers smart performance and peace of mind.

Key Features:

• Digital microprocessor control for accurate dosing

• Backlit LCD display with real-time feedback and settings

• Multiple dosing modes: Manual, Pulse, 4–20 mA, and Timer control

• PVDF pump head and ceramic ball valves for chemical resistance

• Flow rates from 0.4 to 30 l/h (model-dependent)

• Pressure ratings up to 20 bar (model-dependent)

• Pulse input with scalable ratio (1:n or n:1)

• IP65 enclosure for harsh environments

• Wall-mount design with compact dimensions

• Suited for water treatment, agriculture, and industrial dosing systems

Specifications:

• Precise Dosing Output: Delivers up to 5 liters per hour for accurate chemical metering.

• High Pressure Performance: Operates at pressures up to 8 bar

• Efficient Strokes: 160 strokes per minute ensure steady and responsive dosing.

• Low Consumption: Power-efficient with only 12 W consumption under normal operation

• Reliable Control: 0.52 cc per impulse with 4x6 mm standard tubing connections

• Compact Design: Dimensions of 190.5 × 92 × 135.5 mm for easy integration into systems

• Durable Build: IP65-rated enclosure for dust and water resistance

• Lightweight Construction: Weighs only 1.5 kg for easy handling and wall mounting.

• Versatile Power Supply: Compatible with 230 VAC / 50 Hz mains power

Applications:

• Water treatment plants

• Reverse osmosis systems

• Agricultural fertigation

• Cooling tower chemical dosing

• Industrial process control

• Swimming pool chlorination
