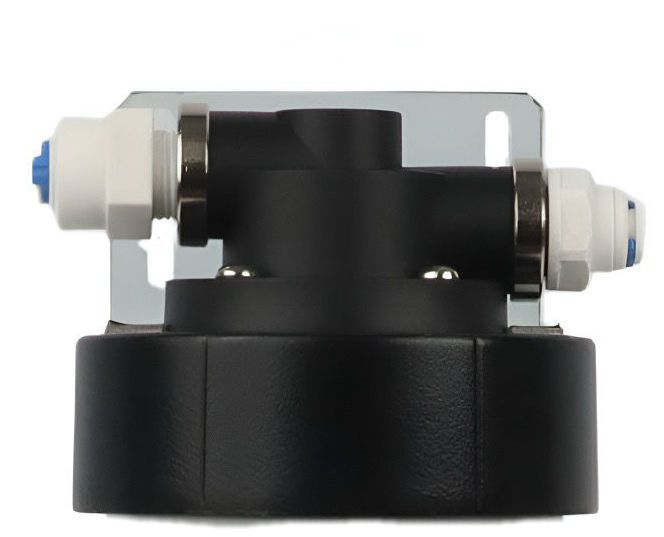

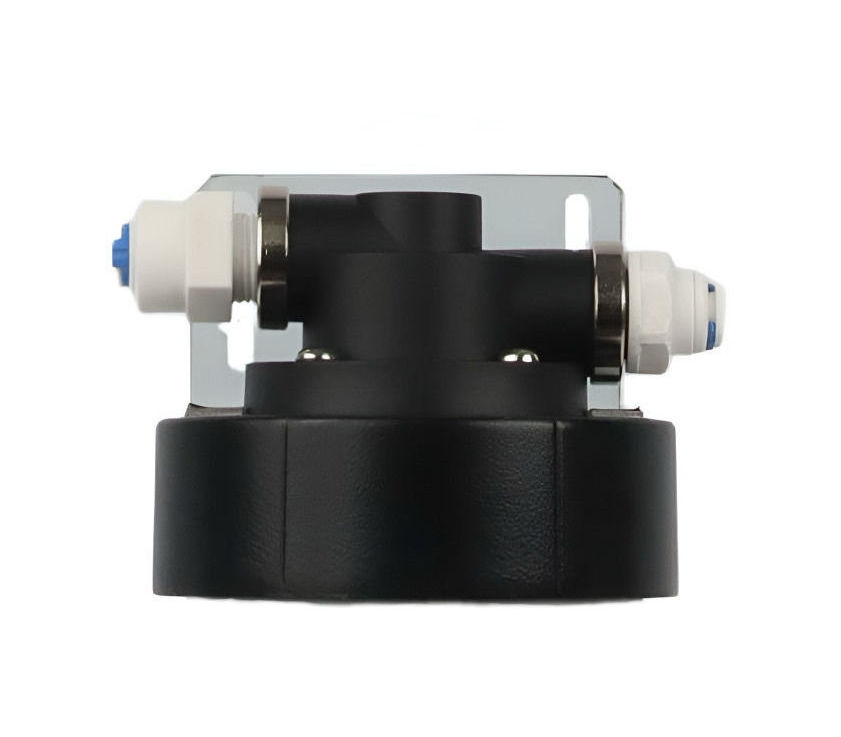

Generic 1/4" Push-in Fitting Valve Head for Pentair Everpure & Generic Filters

Generic 1/4" Push-in Fitting Valve Head for Pentair Everpure & Generic Filters

The Generic 1/4" Push-in Fitting Valve Head is engineered for durability and efficiency.

This valve head is designed to be compatible with both the original Pentair Everpure Cartridges, as well as the Generic Alternatives to the Everpure Cartridges.

**Please note, however, that unlike the Pentair Original QL3B Valve head, the generic does not include a built-in shut-off valve to halt water flow through the valve head, when replacing the filter cartridge. It is recommended that you install a separate inline valve to shut off the water before the valve head, in order to replace the filter cartridge.

Key Features:

• Corrosion-Resistant Hardware: All wetted parts have passed NSF® extraction tests, ensuring longevity and reliability in various environments.

• Easy Installation: Includes a mounting bracket and screws, allowing for straightforward vertical installation on flat surfaces.

Specifications:

• Overall Dimensions: Height: cm x Width: cm x Depth: cm.

• Inlet/Outlet Connections: 3/8" NPT threads, but also includes 1/4" Quick fit's for connecting to 1/4" piping

• Electrical Connection: None required, as the unit operates solely through water pressure.

• Maximum Pressure Rating: 6 bar / 90 psi

• Maximum Temperature Rating: 35 - 100°F (2 - 38°C)

Installation Tips:

Installation:

• Mount the head vertically on a flat surface, ensuring the cartridge hangs down.

• Allow at least 2.5 inches (6.35 cm) of clearance below the cartridge for easy replacement.

• Flush the filter by running water through it according to the cartridge instructions before use.

Maintenance Recommendations:

• Replace cartridges every six months or when capacity is reached to maintain optimal performance.

• Monitor for any decrease in water pressure, indicating the need for cartridge replacement.

• Always flush the filter cartridge at the time of installation and during cartridge changes to ensure water quality.
