    Automatic Softener Valve Head - F63B1/3 (4m3/h)

  • Inlet Port: 1" / 25mm Male
  • Outlet Port: 1" / 25mm Male
  • Drain Port: 1/2" / 15mm Male (with hose nozzle)
  • Base Thread: 2.5" / 6.35cm
  • Maximum Flow Rate: 4000 LPH
  • Model Number: F63B1
  • Availability: Out of stock
    R4 250,00
    i h

    Automatic Water Softener Valve Head - F63B1/3 - with Handle (4m3/h)

    • The F63B3 Automatic Valve Head is designed to be used with water softener systems, for removing hardness (lime/calcium/magnesium/kalk) from water.


    • The F63B3 Valve head uses a digital control and timer to automatically go through the various stages of a water softener's regeneration cycle.


    • The F63B3 Valve head is very easy to program and operate. The F63B1 Valve Head allows you to set the regeneration cycle to take place after a set number of days, and at a particular time of day.


    • The F63B3 Valve head comes with a built-in capacitor, which helps to save the valve head's settings for around 3 days if the power should fail. If there is no power for longer than this, then the valve head will revert to the factory settings.

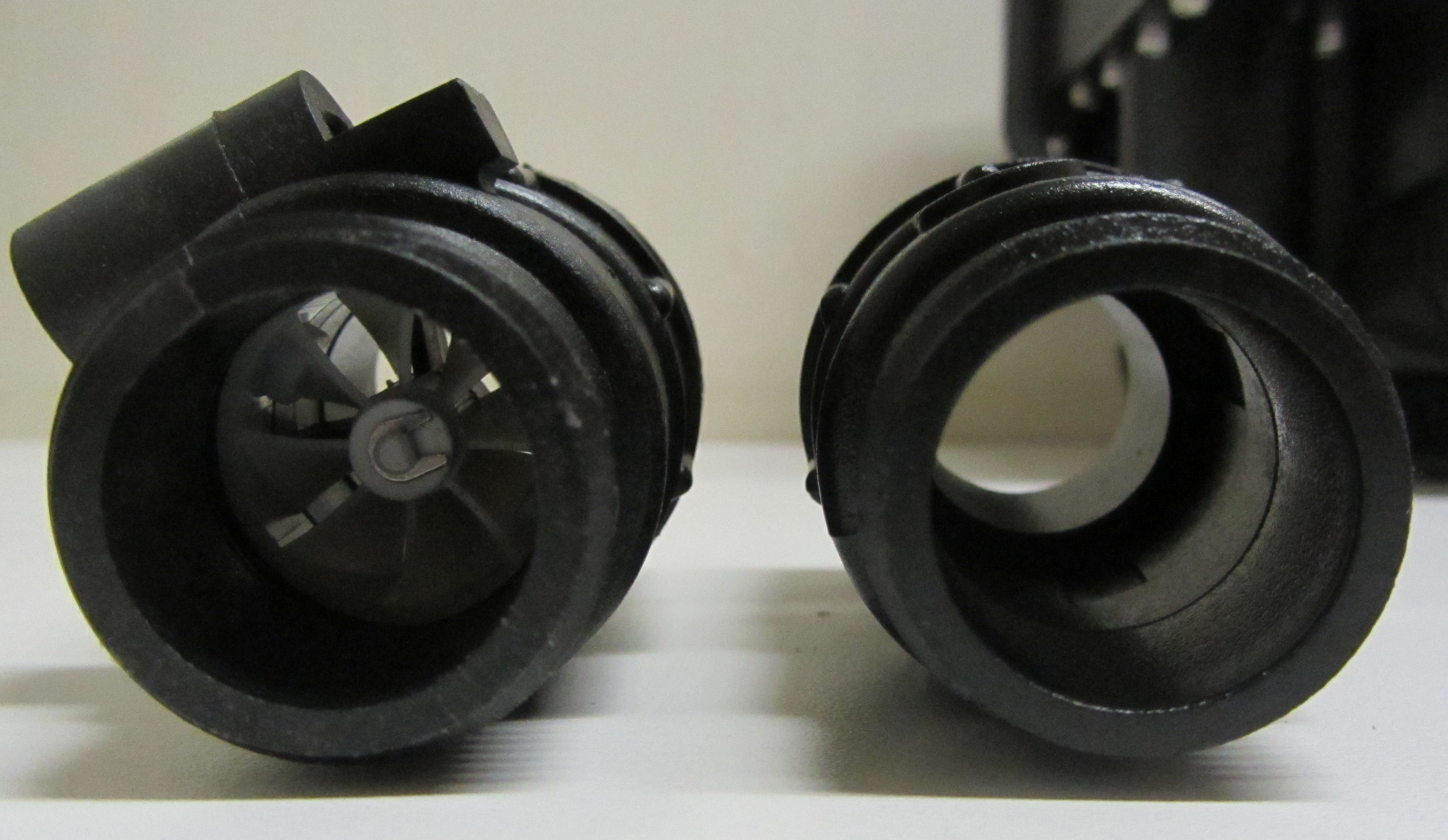

    • The F63B3 comes with a flow meter fitting which allows it to monitor how many liters have passed through the softener. The F63B3 Valve Head can then be programmed to initiate the regeneration cycle after a certain amount of Litres, or Gallons, or Litres Cubed have gone through the water softener unit.  This means that you can program the softener to go through the regeneration before the set number of days if a certain amount of water has go through before the time, or Visa Versa.






    • Inlet : 1"/ 25mm Female
    • Outlet: 1"/ 25mm Female
    • Brine Pipe Fitting: 3/8"
    • Drain Pipe: 1/2" / 15mm (With Hose Connection)
    • Power: 12v DC includes transformer for 220v
