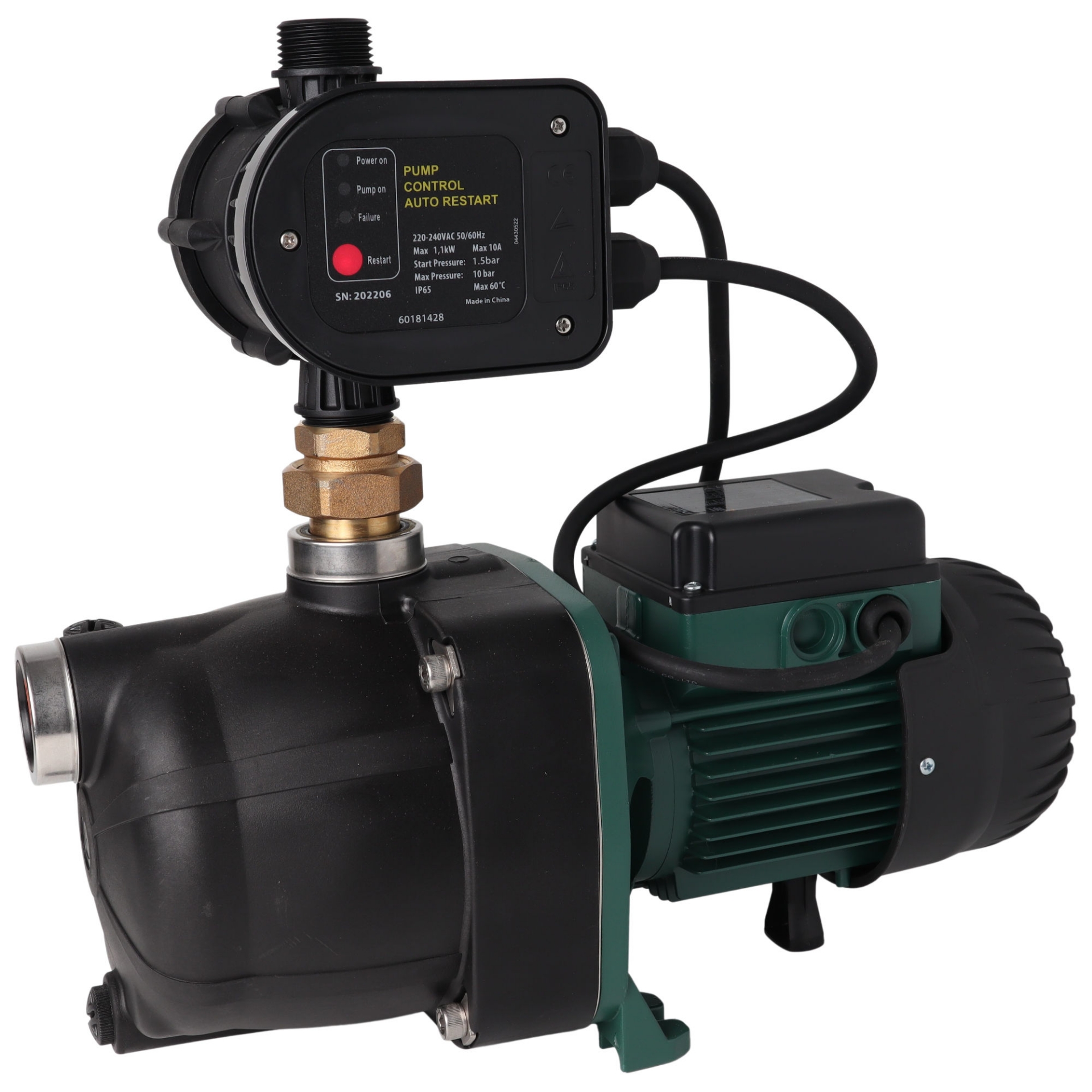

    DAB JETCOM 132M Coelbo - 1.5kW Self-Priming Technopolymer Pump

    Manufacturer: DAB Water Technology
  • 1.5kW / 1500w
  • 220/240v
  • Operating Range: 0.6 to 5.4 m3/h
  • Up to 48m Head / 4.8 bar
  • Liquid Temp Range: 0c to 35c
  • Max. Ambient Temp: 40c
  • Max Operating Pressure: 6 Bar
  • Motor Protection: IP 44
  • Insulation Class: F
    *
    R8 500,00
    i h

    DAB JETCOM 132M Auto - Self-Priming Technopolymer Pump



    APPLICATIONS:

    Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles.

    Suitable for pumping water with low levels of sandy impurities.

    Especially used in domestic water supply installations. Suitable for small farms and gardening, small-scale industrial services and where self-priming is necessary.





    CONSTRUCTIONAL FEATURES OF THE PUMP:

    • Pump body in technopolymer and motor support in die-cast aluminium.
    • Impeller, diffuser, venturi tube and sand guard in technopolymer
    • Stainless steel wear ring.
    • Carbon/ceramic mechanical seal.



    CONSTRUCTIONAL FEATURES OF THE MOTOR:

    • Asynchronous type, closed, with external air cooling.
    • Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life.
    • Incorporated thermo-amperometric protection and permanently inserted capacitor in the single-phase version.
    • It is recommended to use overload protection for three-phase motor protection, in compliance with current legislation.
    • Manufactured pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41).





    TECHNICAL DATA:

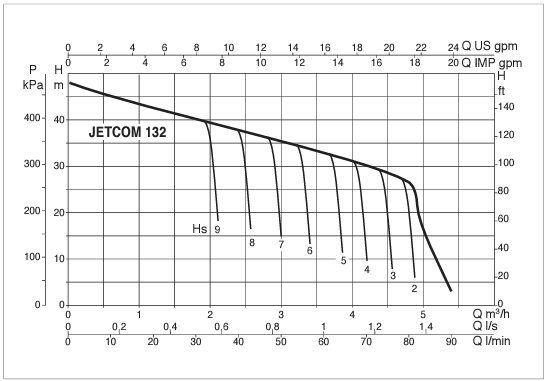

    • Operating range: from 0.6 to 4.8 m3/h with head up to 48 metres.
    • Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
    • Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41).
    • Maximum ambient temperature: +40°C
    • Maximum operating pressure: 6 bar (600 kPa)
    • Maximum suction depth: 8 metres.
    • Installation: fixed in a horizontal position.
    • Special executions on request: alternative voltages and/or frequencies.
    • Motor protection rating: IP 44
    • Terminal block protection rating: IP 55
    • Insulation class: F

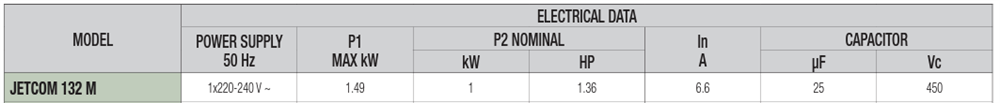

    • Standard input voltage: single-phase 220/240 V / 50 Hz

                                                       three-phase 230/400 V - 50 Hz



    Additional Options

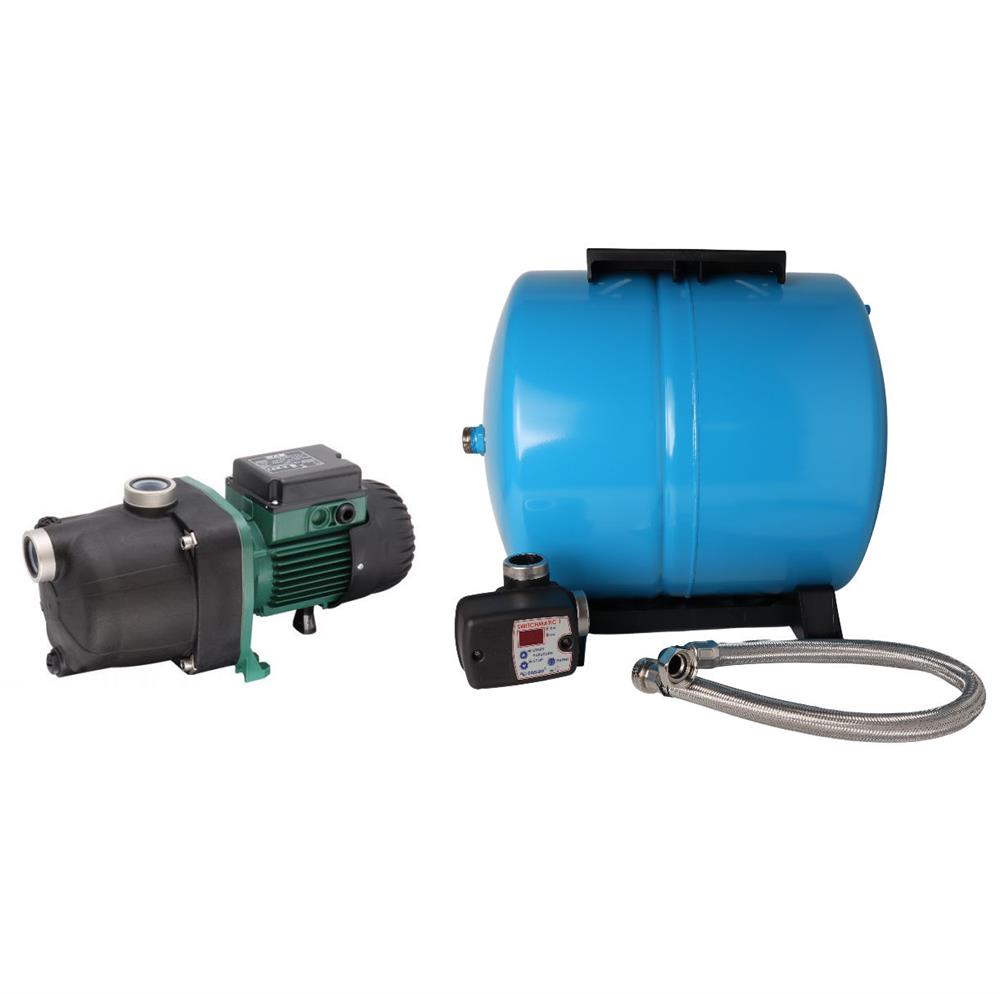

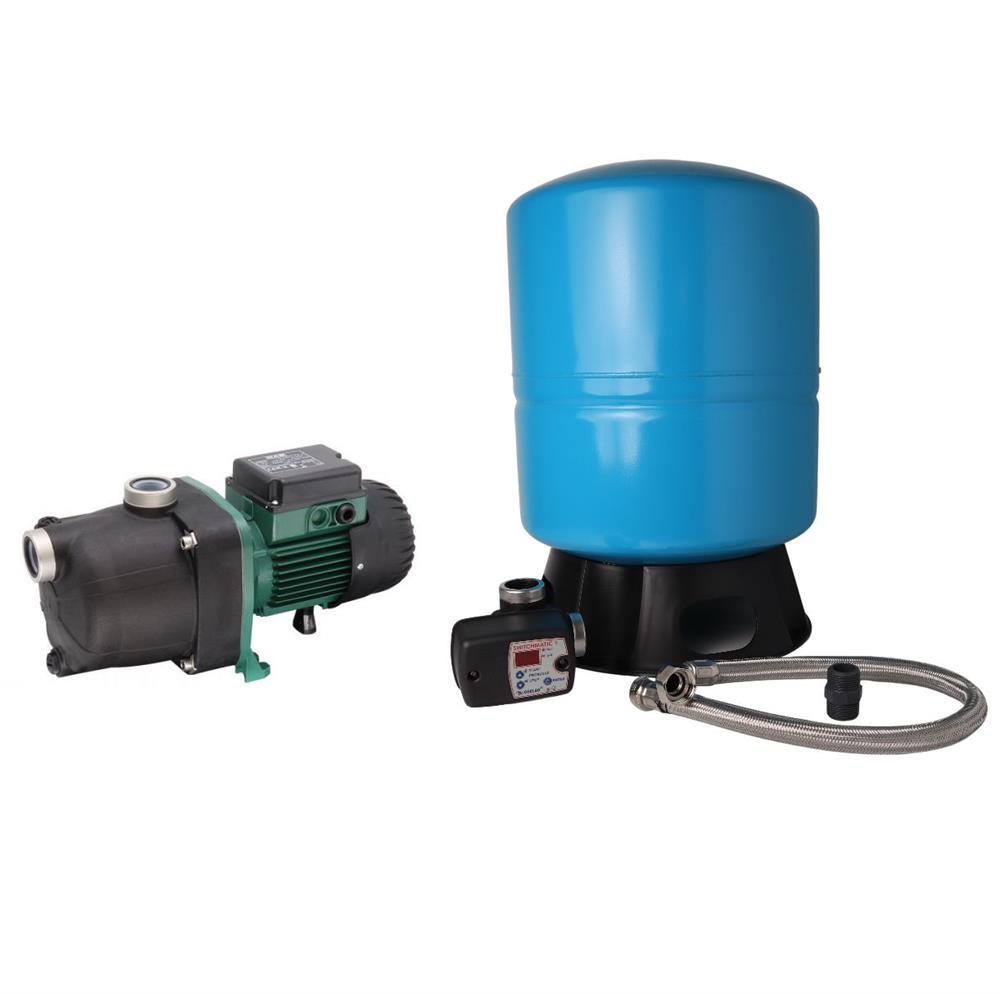

    Pressure Tank Upgrade Kit for standard booster pumps



    Adding a Pressure tank to your booster pump setup can help to reduce how often the pressure pump turns on and off, thus helping to reduce the total power consumption of the booster pump. The Pressure tank will be filled with a "buffer" of water (the number of liters depending on the size of the tank), so when a small amount of water is required in the household, such as flushing a toilet or using a tap to quickly wash your hands, this water will come out of the pressure tank first, meaning the pump will not need to switch on at first. As more and more water leaves the pressure tank, the pressure inside the tank will drop, until the pressure drops below a preset minimum pressure on the pressure sensor, at which point the pump will turn on continuing to feed the household with water and refilling the pressure tank. Once there is no more water required in the household, the pressure tank is filled, and until the maximum pressure setting on the pressure sensor is reached, the pump will then turn off again.

    Keep In Mind: Pressure tank litre sizing is the whole volume inside of the pressure tank, part of which will be taken up by Air and the rest of the volume will then be for the water you fill it with. As a result, water will only take up between 30 to 60% of the total volume of the tank depending on pressure. For example, a tank that is rated for 100 Litres will only actually hold between 30 & 60 litres of water in real-world practice. Please keep this in mind when selecting your tank size.



    Pressure Tank Upgrade Kit for standard booster pumps Includes:

    *Please note the size of the tank in comparison to the pump will differ depending on the size tank ordered.





    Pump Cover

    Specifically designed to accommodate our range of different Booster Pumps and VSD pumps, this cover is manufactured from high-grade virgin LLDPE (BPA-free) material, ensuring that your pump is protected against all weather conditions. There are several colors available.

    Please note that the Pump Cover is only large enough to house the booster pump and its regulator only, if you have a pressure tank, it will need to be installed outside of the pump cover.





    Add Surge Protection Plug



    It is always strongly recommended to install a surge protection plug or adapter with any electrical appliance, including pressure pumps. This will safeguard the electrics against potential damage from power surges.

    *
    *
    *
