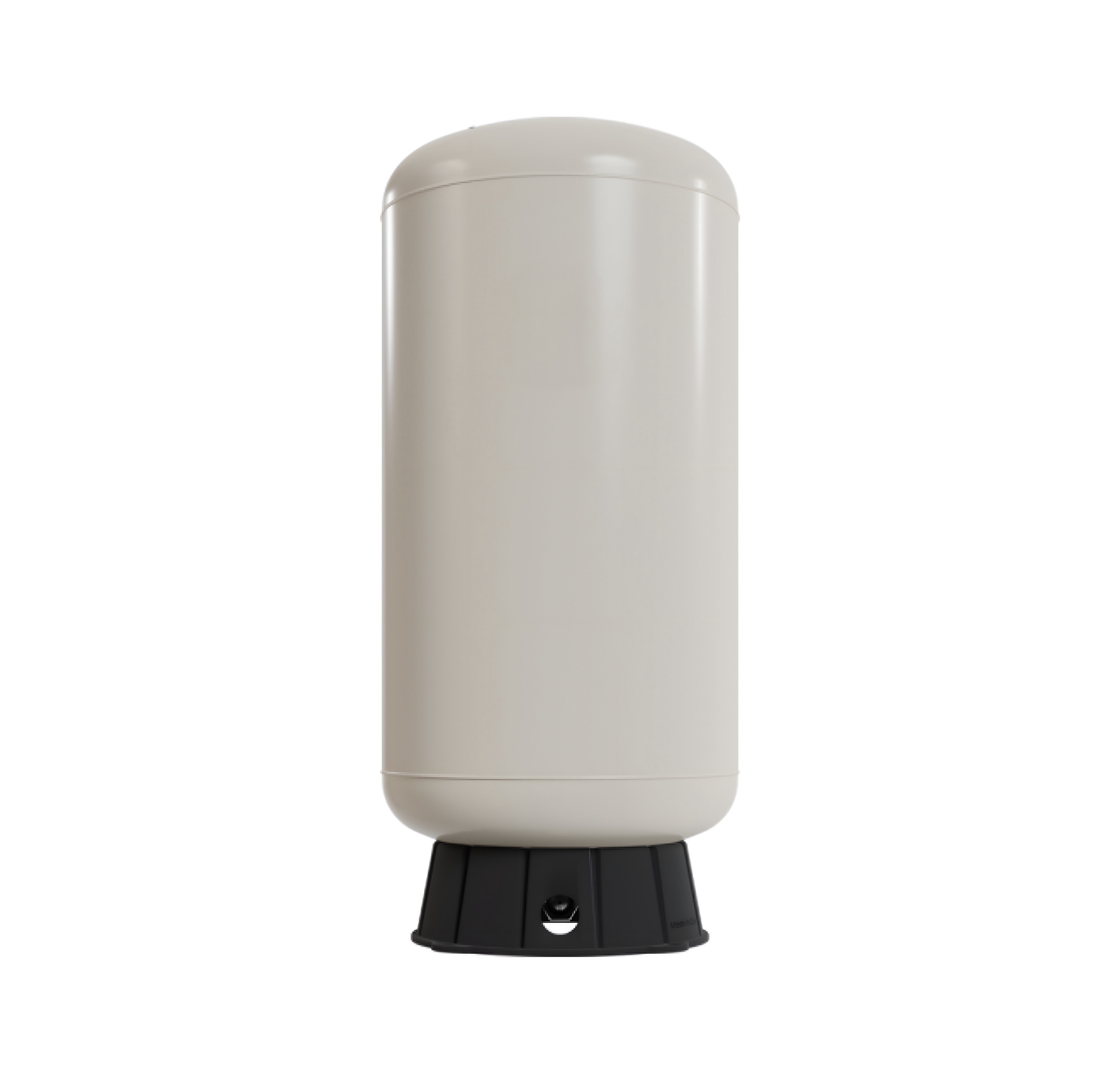

Challenger™ 250 Litre Vertical Pressure Tank - GCB-250LV

Be the first to review this product

Tank Code: GCB-250LV

Type of Pressure Tank: Vertical

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 250 Liter / 66.04 Gallon

Connection: 1.25" BSPT (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 1056mm / 105.6cm

Diameter: 53.3cm / 533mm / 21 inch

Gross Weight: 44kg

Warranty*: 5 Years

Availability: Out of stock

R17 995,00

Qty:

i h

Overview
Contact Us

GCB-250LV - 250 Litre Challenger™ Vertical Pressure Tank

The Challenger™ 250-liter / 66.04-gallon vertical pressure tank delivers dependable performance for high-capacity systems. Its patented CAD-2 diaphragm assembly ensures superior air and water separation, while the chlorine-resistant butyl diaphragm and copolymer polypropylene liner provide long-term durability.

Equipped with a 1¼" BSPP connection and pre-charged to 1.4 bar / 20 psi, this tank is ideal for thermal expansion, heating, and irrigation applications. The durable carbon steel shell with a dual-layer polyurethane finish offers exceptional corrosion resistance and reliability in demanding environments.

Booster systems
Thermal expansion
Heating expansion
Irrigation systems\

Features & Benefits

Patented stainless steel water connection
Two-part polyurethane, epoxy primed paint finish
Leak-free air valve cap, sealed and closed-cell foam
Replaceable tank base
Maintenance-free
Carbon steel shell
Patented CAD-2 diaphragm technology
Comprehensive testing

MODEL NUMBER: GCB-250LV

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 250 Liter / 66.04 Gallon

Connection: 1.25" BSPP (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 1228mm / 122.8cm

Diameter: 53.4 cm / 21 in

Gross Weight: 44kg

Certifications

Warranty*

All Challenger™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
