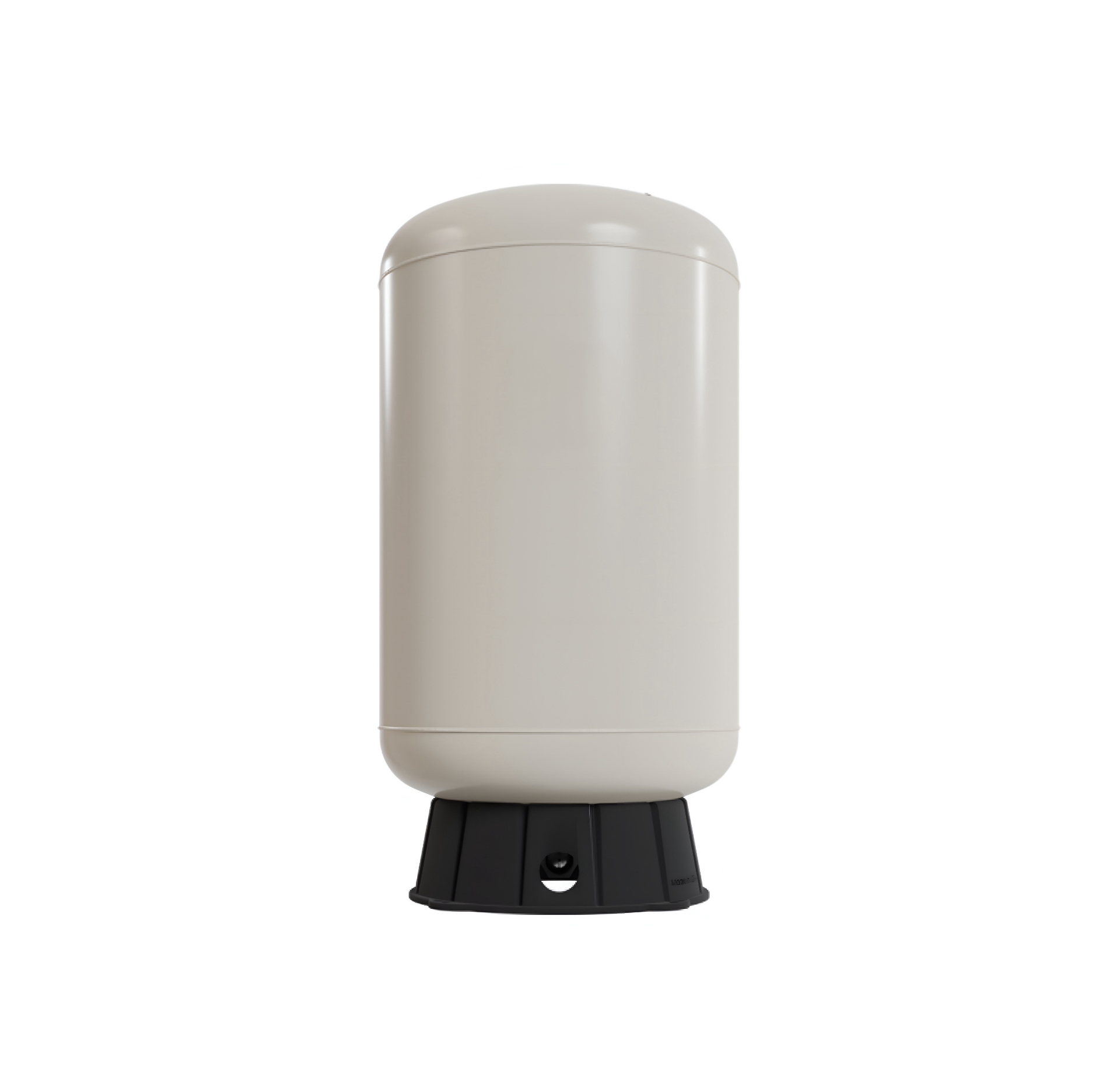

Challenger™ 200 Litre Vertical Pressure Tank - GCB-200LV

Be the first to review this product

Tank Code: GCB-200LV

Type of Pressure Tank: Vertical

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 200 Liter / 52.83 Gallon

Connection: 1.25" BSPT (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 1056mm / 105.6cm

Diameter: 53.3cm / 533mm / 21 inch

Gross Weight: 38.6kg

Warranty*: 5 Years

R15 995,00

Qty:

i h

Overview
Contact Us

GCB-200LV - 200 Litre Challenger™ Vertical Pressure Tank

The Challenger™ 200-liter / 52.83-gallon vertical pressure tank is built for reliable and efficient performance in high-capacity systems. Its patented CAD-2 diaphragm technology ensures consistent air and water separation, while the chlorine-resistant butyl diaphragm and copolymer polypropylene liner provide long-lasting durability.

Equipped with a 1¼" BSPP connection and pre-charged to 1.4 bar / 20 psi, this tank is ideal for booster systems, irrigation, and heating expansion. The carbon steel shell, coated with dual-layer polyurethane paint, offers exceptional corrosion resistance and reliability in challenging environments.

Booster systems
Thermal expansion
Heating expansion
Irrigation systems\

Features & Benefits

Patented stainless steel water connection
Two-part polyurethane, epoxy primed paint finish
Leak-free air valve cap, sealed and closed-cell foam
Replaceable tank base
Maintenance-free
Carbon steel shell
Patented CAD-2 diaphragm technology
Comprehensive testing

MODEL NUMBER: GCB-200LV

Temp Max: 90°C / 194°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 200 Liter / 52.83 Gallon

Connection: 1.25" BSPP (F)

Color: Almond

Pressure Max: 10 bar / 150 psi

Height: 1056mm / 105.6cm

Diameter: 53.3 cm / 21 in

Gross Weight: 38.6kg

Certifications

Warranty*

All Challenger™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
