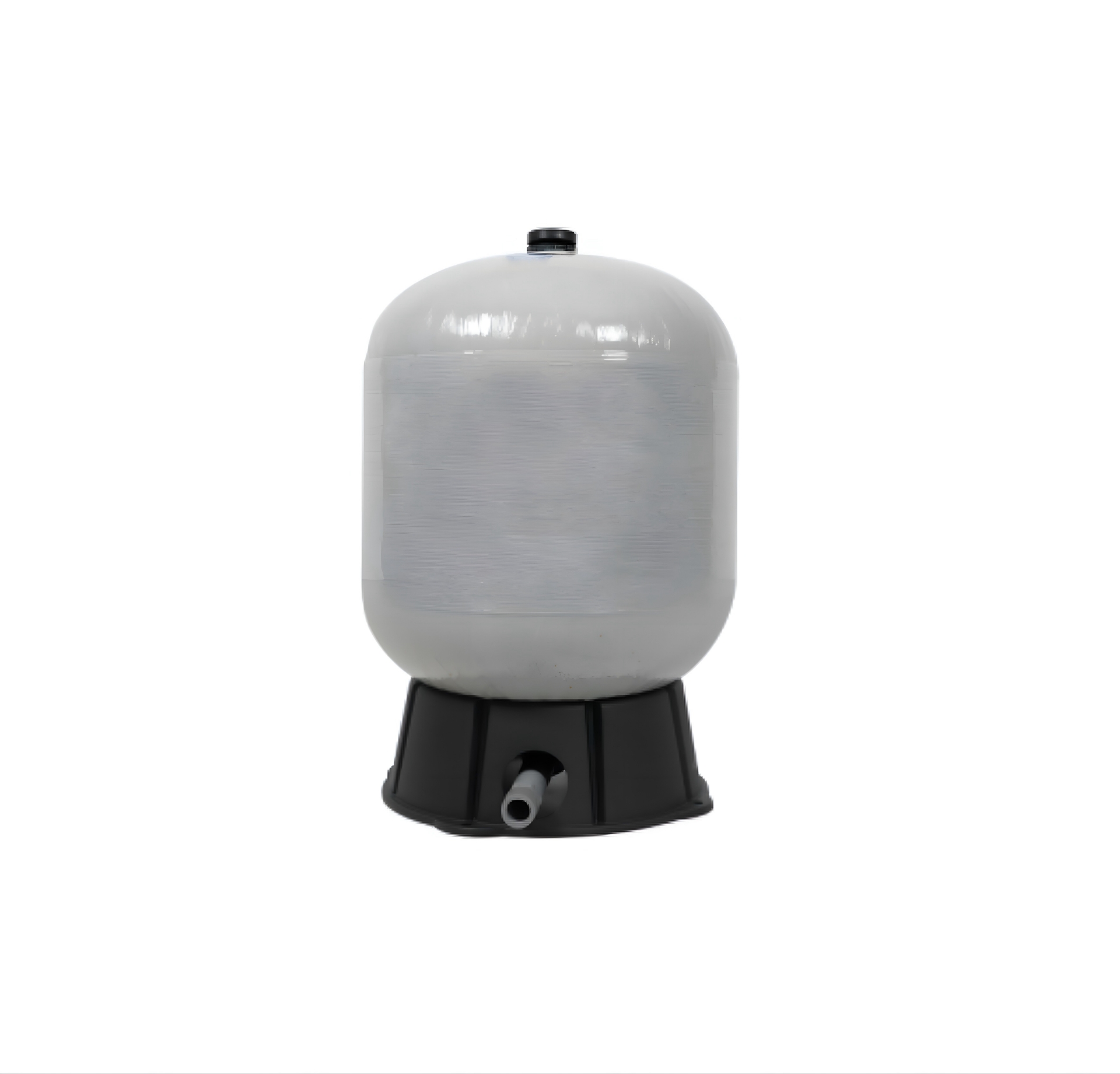

C2-Lite CAD™ 60L Composite Pressure Tank - C2B-60LV



The C2-Lite CAD Tanks are designed for harsh conditions where standard Steel pressure tanks will struggle to last. An example is in situations where the tank will be constantly exposed to corrosive sea air. Typical steel pressure tanks will rust, while the C2-Lite CAD Tanks with their composite design will not suffer any rusting.



The C2-Lite CAD™ 60-liter / 15.85-gallon vertical pressure tank is designed for efficient pressure management in small to medium systems. Its CAD-2 diaphragm prevents creasing and wear, ensuring long-lasting reliability. The composite shell and precision-molded polypropylene liner provide excellent corrosion resistance, even in coastal environments.

Pre-charged to 1.4 bar / 20 psi and fitted with a 1" BSPT connection, this tank is ideal for coastal applications, irrigation, and small booster systems. Its lightweight and weather-resistant construction makes it easy to install and maintain in challenging conditions.

• Coastal applications
• Beach resorts & golf courses
• Booster systems
• Water wells
• Irrigation systems







Features & Benefits

• High-tech spin welding process.
• Patented CAD-2 controlled action diaphragm design
• Maintenance-free
• Unique three-piece construction
• Quality brass air stem with O-ring seal
• No-sweat design



MODEL NUMBER: C2B-60LV

Temp Max: 49°C / 120.2°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 60 Liter / 15.85 Gallon

Connection: 1.25" BSPT (M)

Color: Gray

Pressure Max: 8.6 bar / 125 psi

Diameter: 42.1cm / 421mm / 16.6 in

Height: 65cm / 650mm

Gross Weight: 8.6kg

Certifications

Warranty*

All C2-Lite CAD™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
