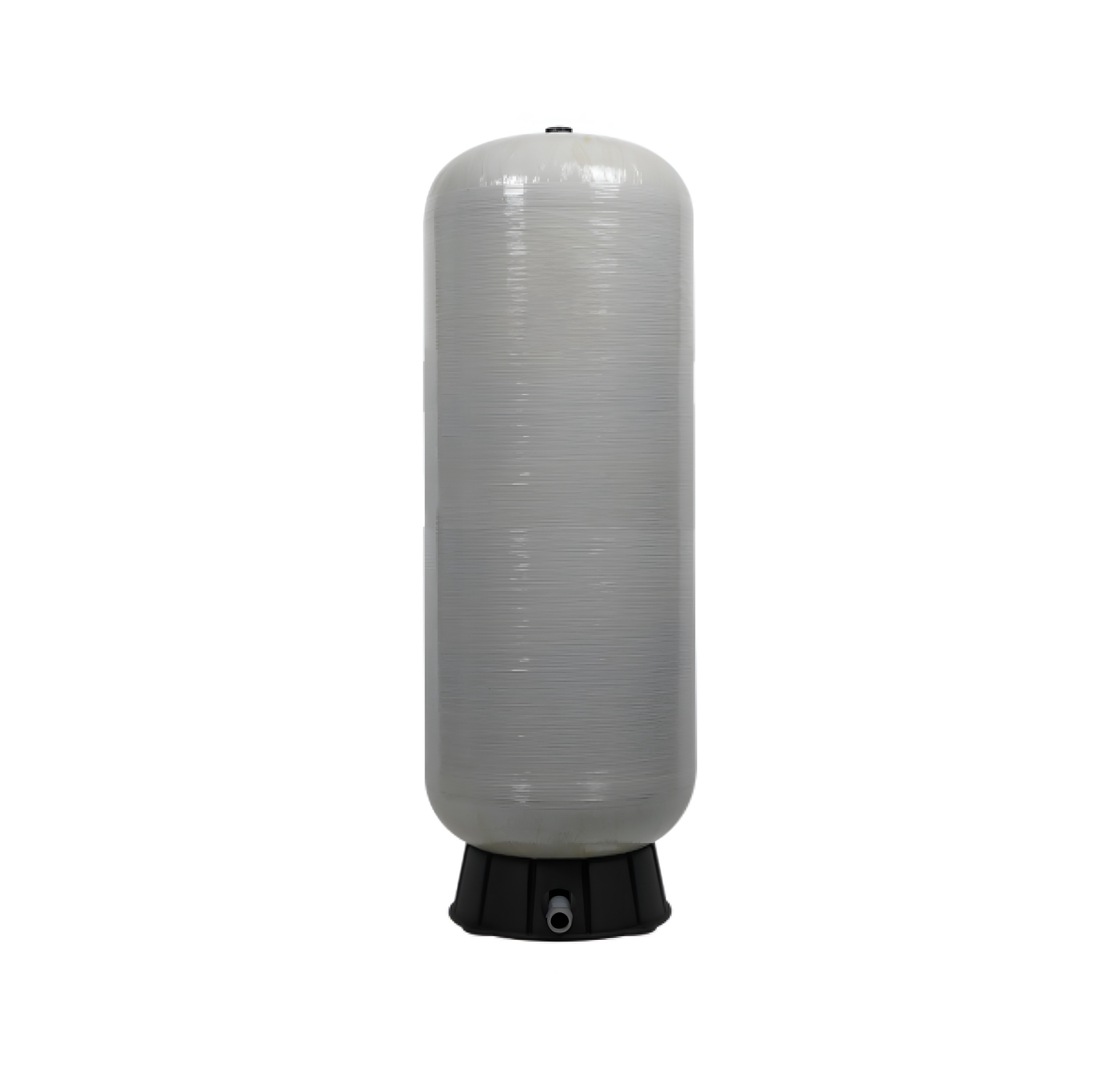

C2-Lite CAD™ 450L Composite Pressure Tank - C2B-450LV



The C2-Lite CAD Tanks are designed for harsh conditions where standard Steel pressure tanks will struggle to last. An example is in situations where the tank will be constantly exposed to corrosive sea air. Typical steel pressure tanks will rust, while the C2-Lite CAD Tanks with their composite design will not suffer any rusting.



The C2-Lite CAD™ 450-liter / 118.88-gallon vertical pressure tank offers high-capacity pressure management with advanced corrosion-resistant construction. The patented CAD-2 controlled action diaphragm ensures unmatched durability, while the precision-molded polypropylene liner provides superior air and water separation. Its composite shell is weather-resistant and lightweight for easy handling and installation.

With a 1¼" BSPT connection and pre-charged to 1.4 bar / 20 psi, this tank is ideal for outdoor booster systems, irrigation, and water wells. Its maintenance-free, no-sweat design ensures reliable performance in the harshest environments.

• Coastal applications
• Beach resorts & golf courses
• Booster systems
• Water wells
• Irrigation systems







Features & Benefits

• High-tech spin welding process.
• Patented CAD-2 controlled action diaphragm design
• Maintenance-free
• Unique three-piece construction
• Quality brass air stem with O-ring seal
• No-sweat design



MODEL NUMBER: C2B-450LV

Temp Max: 49°C / 120.2°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 450 Liter / 118.88 Gallon

Connection: 1.25" BSPT (M)

Color: Gray

Pressure Max: 8.6 bar / 125 psi

Diameter: 61.8cm / 618mm / 24.3in

Height: 183.2cm / 1832mm

Gross Weight: 36.3kg

Certifications

Warranty*

All C2-Lite CAD™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
