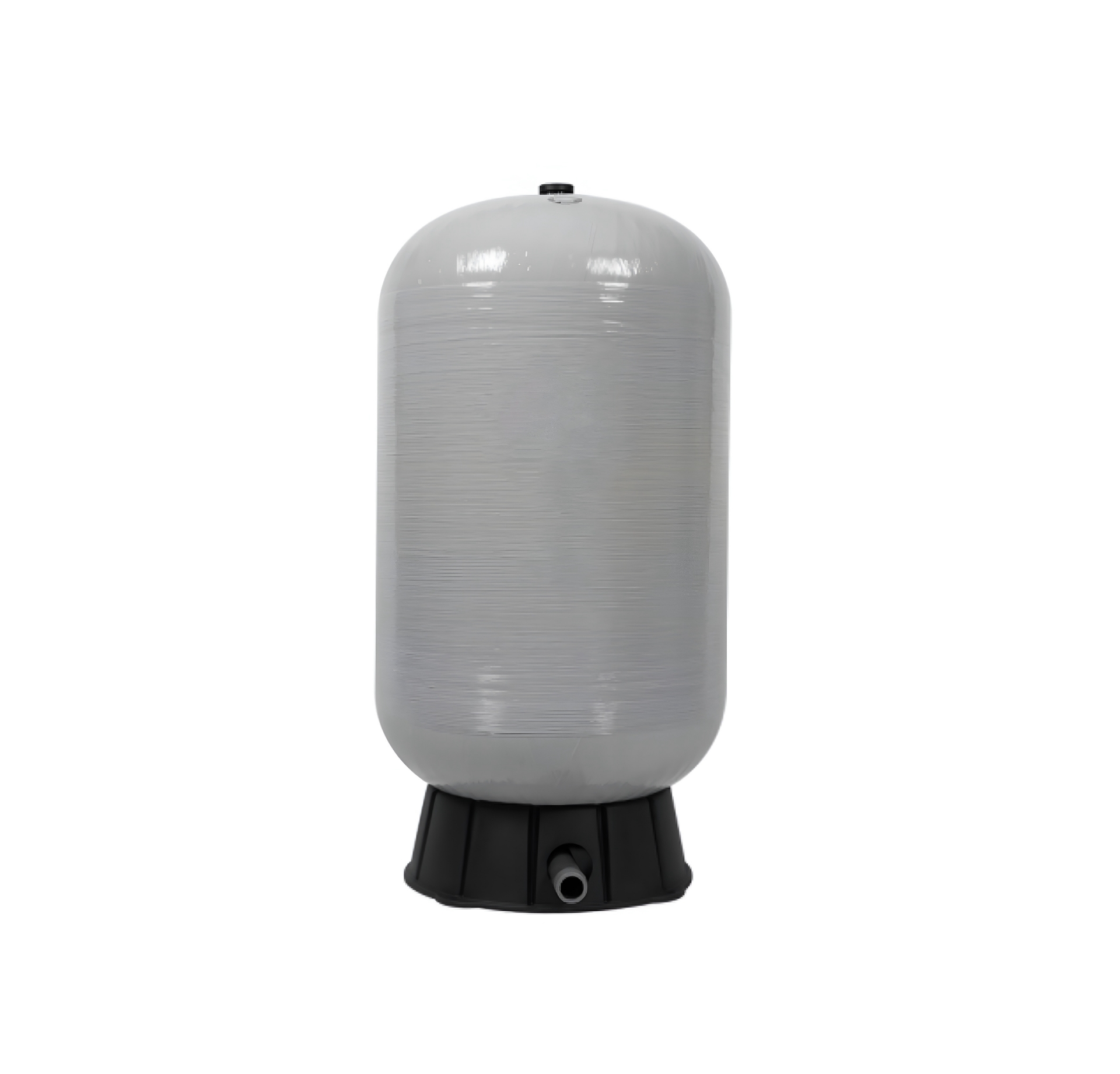

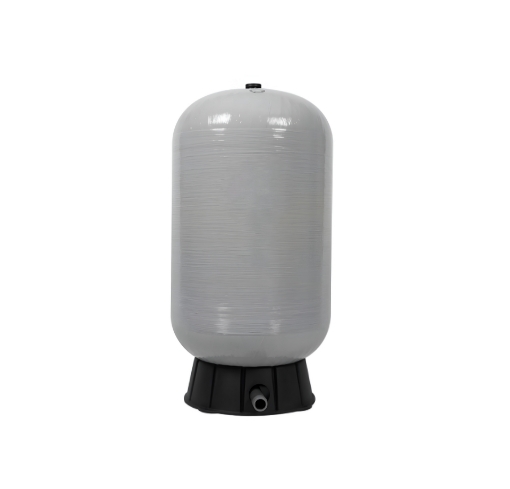

C2-Lite CAD™ 200L Composite Pressure Tank - C2B-200LV



The C2-Lite CAD Tanks are designed for harsh conditions where standard Steel pressure tanks will struggle to last. An example is in situations where the tank will be constantly exposed to corrosive sea air. Typical steel pressure tanks will rust, while the C2-Lite CAD Tanks with their composite design will not suffer any rusting.



The C2-Lite CAD™ 200-liter / 52.83-gallon vertical pressure tank is engineered for efficiency and durability in demanding applications. Its patented CAD-2 diaphragm design prevents creasing and wear, ensuring a longer lifespan. The high-quality copolymer polypropylene liner and 100% butyl diaphragm provide superior air and water separation, while the corrosion-proof composite construction enhances durability.

With a 1¼" BSPT connection and pre-charged to 1.4 bar / 20 psi, this tank is perfect for applications such as coastal systems, irrigation, and beach resorts. Its maintenance-free design and weather-resistant construction make it a dependable choice for outdoor and marine environments.

• Coastal applications
• Beach resorts & golf courses
• Booster systems
• Water wells
• Irrigation systems







Features & Benefits

• High-tech spin welding process.
• Patented CAD-2 controlled action diaphragm design
• Maintenance-free
• Unique three-piece construction
• Quality brass air stem with O-ring seal
• No-sweat design



MODEL NUMBER: C2B-200LV

Temp Max: 49°C / 120.2°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 200 Liter / 52.83 Gallon

Connection: 1.25" BSPT (M)

Color: Gray

Pressure Max: 8.6 bar / 125 psi

Diameter: 54.6cm / 546mm / 21.5in

Height: 109.9cm / 1099mm

Gross Weight: 20.4kg

Certifications

Warranty*

All C2-Lite CAD™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
