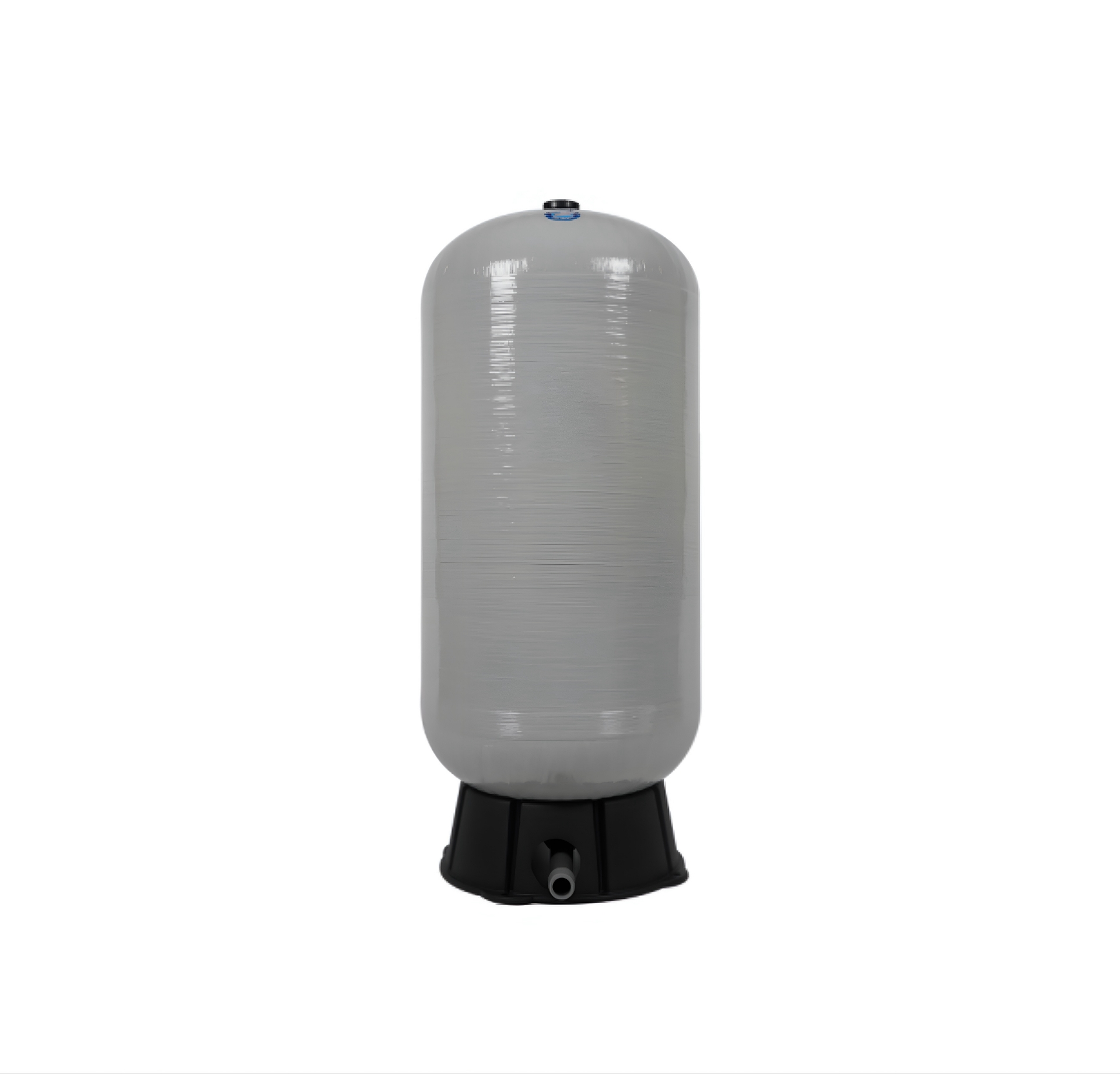

C2-Lite CAD™ 100L Composite Pressure Tank - C2B-100LV



The C2-Lite CAD Tanks are designed for harsh conditions where standard Steel pressure tanks will struggle to last. An example is in situations where the tank will be constantly exposed to corrosive sea air. Typical steel pressure tanks will rust, while the C2-Lite CAD Tanks with their composite design will not suffer any rusting.



The C2-Lite CAD™ 100-liter / 26.42-gallon vertical pressure tank combines the proven performance of GWS Challenger™ tanks with a lightweight composite design. Its patented CAD-2 controlled action diaphragm ensures precise air and water separation, preventing creasing and wear for long-lasting durability. The 100% butyl diaphragm and precision-molded polypropylene liner provide unmatched safety and reliability.

With a 1" BSPT connection and pre-charged to 1.4 bar / 20 psi, this tank is ideal for coastal applications, booster systems, and irrigation. Its corrosion-proof composite construction and weather-resistant design make it a dependable choice for challenging environments, including beach resorts and water wells.

• Coastal applications
• Beach resorts & golf courses
• Booster systems
• Water wells
• Irrigation systems







Features & Benefits

• High-tech spin welding process.
• Patented CAD-2 controlled action diaphragm design
• Maintenance-free
• Unique three-piece construction
• Quality brass air stem with O-ring seal
• No-sweat design



MODEL NUMBER: C2B-100LV

Temp Max: 49°C / 120.2°F

Pressure Pre-charge bar: 1.4 bar / 20 psi

Nominal Volume: 100 Liter / 26.42 Gallon

Connection: 1.25" BSPT (M)

Color: Gray

Pressure Max: 8.6 bar / 125 psi

Diameter: 42.1cm / 421mm / 16.6 in

Height: 98cm / 980mm

Gross Weight: 12.3kg

Certifications

Warranty*

All C2-Lite CAD™ Tanks come with a 5-year* warranty.

**Please note that the warranty does not cover damage caused by mishandling, improper installation, or in situations where the maximum operating parameters for the product are exceeded.
