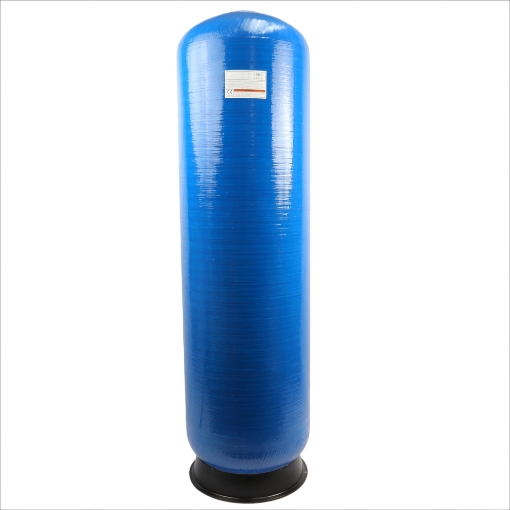

18" x 65" FRP Vessel (4" thread)

18" x 65" (1865) FRP Vessels - 4" Port Thread

Fibre Reinforced Plastic (FRP) Vessels are specifically designed to deliver high flow rates and can be combined with any number of specialized filtration media such as Activated Carbon, Calcite, AFM, Crystal Sand, Birm, Siliphos, as well as a number of different ion exchange Resins such as Softening (Cation) and Mixed Bed Resin.

• The 4"  Port Thread is made from 30% glass-filled PP, providing higher strength, temperature, and pressure limits.
• All the components that come in contact with water are made from food-grade materials.
• The FRP Vessel is rust-proof and corrosion-resistant

Operational Specifications

• Max. Pressure - 150psi / 10bar (1.0MPa)
• Temperature - 1 - 29°C (34 - 120°F)
• Max Vacuum - 5*HG (127mmHG)
• Minimum Exposed Temperature: - 30°C (- 22°F)

High Density Polyethylene (HDPE Tank Liner)Operational Specifications

• Strict Dimensions Control (+/- 3mm overall Length)
• High tensile strength (HDPE 4550 PSI vs. LDPE 1700 PSI)
• Light weight
• Good impact resistance
• Low moisture absorption

High-Density Glass-Filled Polypropylene Threads

• High strength
• High chemical resistance
• High temperature resistance/melting point (150 to 200 degrees F)
• Abrasion Resistance
• Lightweight
• Excellent Dimensional Stability

Keep In Mind

• These Vessels are only meant to be used with water applications, all other applications must be approved by the manufacturer.
• These vessels must not be used for pneumatic or hydro-pneumatic applications.
