    0.37kW Booster Pump

  • Model: QB60
  • Motor Power: 0.37kW / 0.5HP
  • Inlet/Outlet: 1"/ 25mm Female BSP Port
  • Best Efficiency flow range: 10 to 20 l/min
  • Best Efficiency pressure range: 1 to 2.4 Bar
  • Max Fluid Temp: 70°C
  • Max Ambient Temperature: 40°C
  • Dry Run Protection
  • Over-current Protection
    *
    R2 500,00
    i h

    0.37kW Booster Pump





    The Booster Pump is a high-quality, reliable, and energy-efficient addition to your water storage setup. It supplies 3.8 bar pressure at a flow of 34 litres per minute and comes standard with a flow control switch. This switch automatically starts the pump when pressure decreases, then switches it off it when there is no flow.

    Get an additional pump-to-tank connector kit and seamlessly connect your pump to a variety of water storage tanks.

    Note: To ensure proper functionality, it is advised to run the pump once a week.

    Keep In mind: The Cast iron construction of this pump means it is not recommended for applications using low PH (Corrosive) water or water with high levels of chlorine/ozone present, as rusting/corrosion is likely to occur. In such applications, it is rather recommended to use a Stainless Steel, Polypropylene, or polymer-type booster pump.



    Product Benefits:

    • Energy efficient
    • Easy to operate
    • Automatic start/stop function
    • Dry running protection
    • Overcurrent protection
    • Pre-wired with a 3-point plug
    • Motor power of 0.37 kW
    • 3.8 bar pressure
    • 34 l/min flow
    • Brass impeller
    • Stainless shaft



    Additional Options

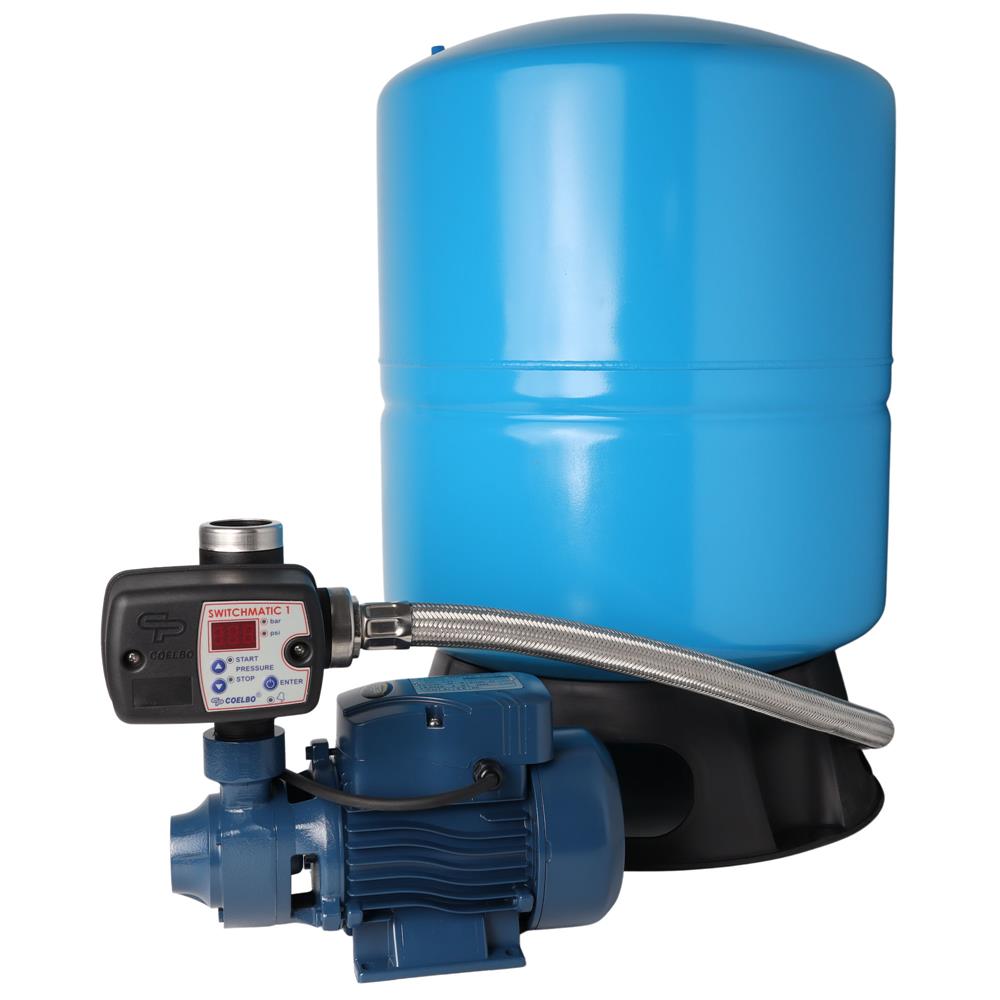

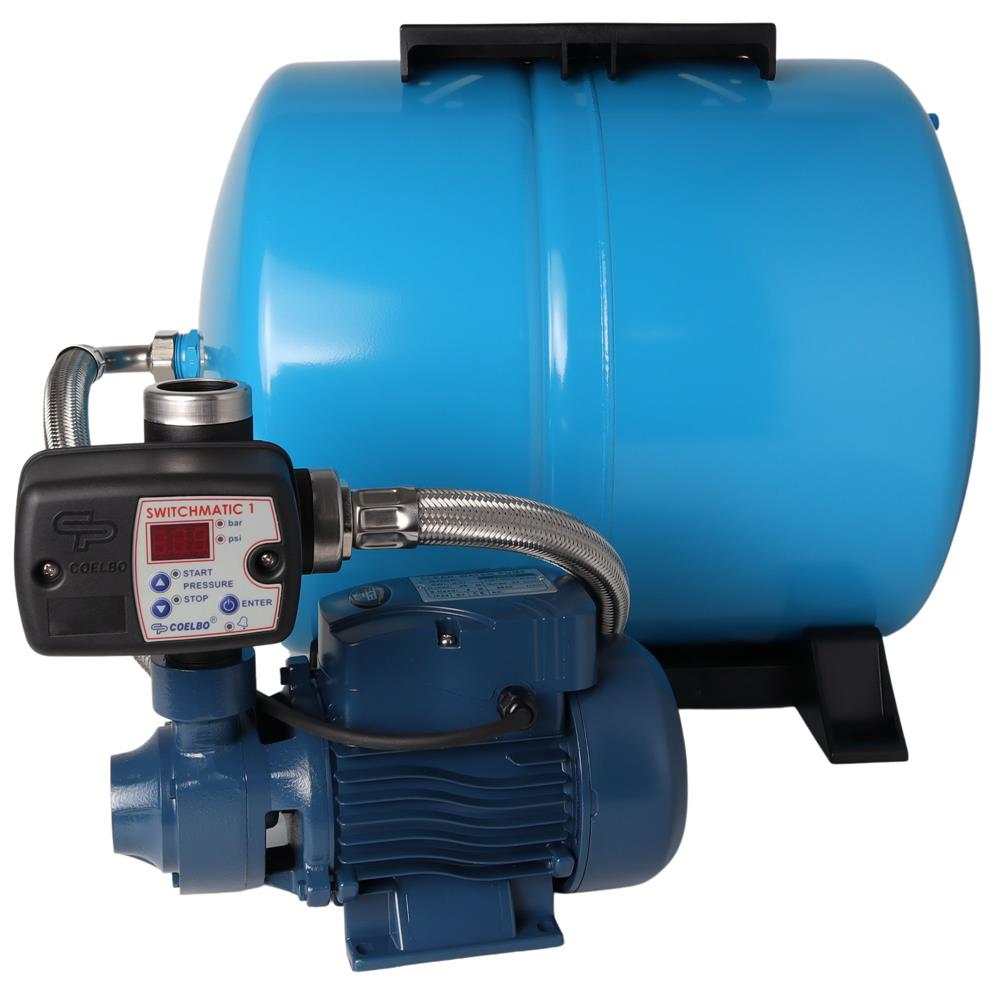

    Pressure Tank Upgrade Kit for standard booster pumps



    Adding a Pressure tank to your booster pump setup can help to reduce how often the pressure pump turns on and off, thus helping to reduce the total power consumption of the booster pump. The Pressure tank will be filled with a "buffer" of water (the number of liters depending on the size of the tank), so when a small amount of water is required in the household, such as flushing a toilet or using a tap to quickly wash your hands, this water will come out of the pressure tank first, meaning the pump will not need to switch on at first. As more and more water leaves the pressure tank, the pressure inside the tank will drop, until the pressure drops below a preset minimum pressure on the pressure sensor, at which point the pump will turn on continuing to feed the household with water and refilling the pressure tank. Once there is no more water required in the household, the pressure tank is filled, and until the maximum pressure setting on the pressure sensor is reached, the pump will then turn off again.

    Keep In Mind: Pressure tank litre sizing is the whole volume inside of the pressure tank, part of which will be taken up by Air and the rest of the volume will then be for the water you fill it with. As a result, water will only take up between 30 to 60% of the total volume of the tank depending on pressure. For example, a tank that is rated for 100 Litres will only actually hold between 30 & 60 litres of water in real-world practice. Please keep this in mind when selecting your tank size.



    Pressure Tank Upgrade Kit for standard booster pumps Includes:

    *Please note the size of the tank in comparison to the pump will differ depending on the size tank ordered.





    Pump Cover

    Specifically designed to accommodate our range of different Booster Pumps and VSD pumps, this cover is manufactured from high-grade virgin LLDPE (BPA-free) material, ensuring that your pump is protected against all weather conditions. There are several colors available.

    Please note that the Pump Cover is only large enough to house the booster pump and its regulator only, if you have a pressure tank, it will need to be installed outside of the pump cover.





    Add Surge Protection Plug



    It is always strongly recommended to install a surge protection plug or adapter with any electrical appliance, including pressure pumps. This will safeguard the electrics against potential damage from power surges.

    *
    *
    *
